2.3 Rear Panels
The following figures detail the rear panel features for each Vertiv™ Liebert® GXT5 model.

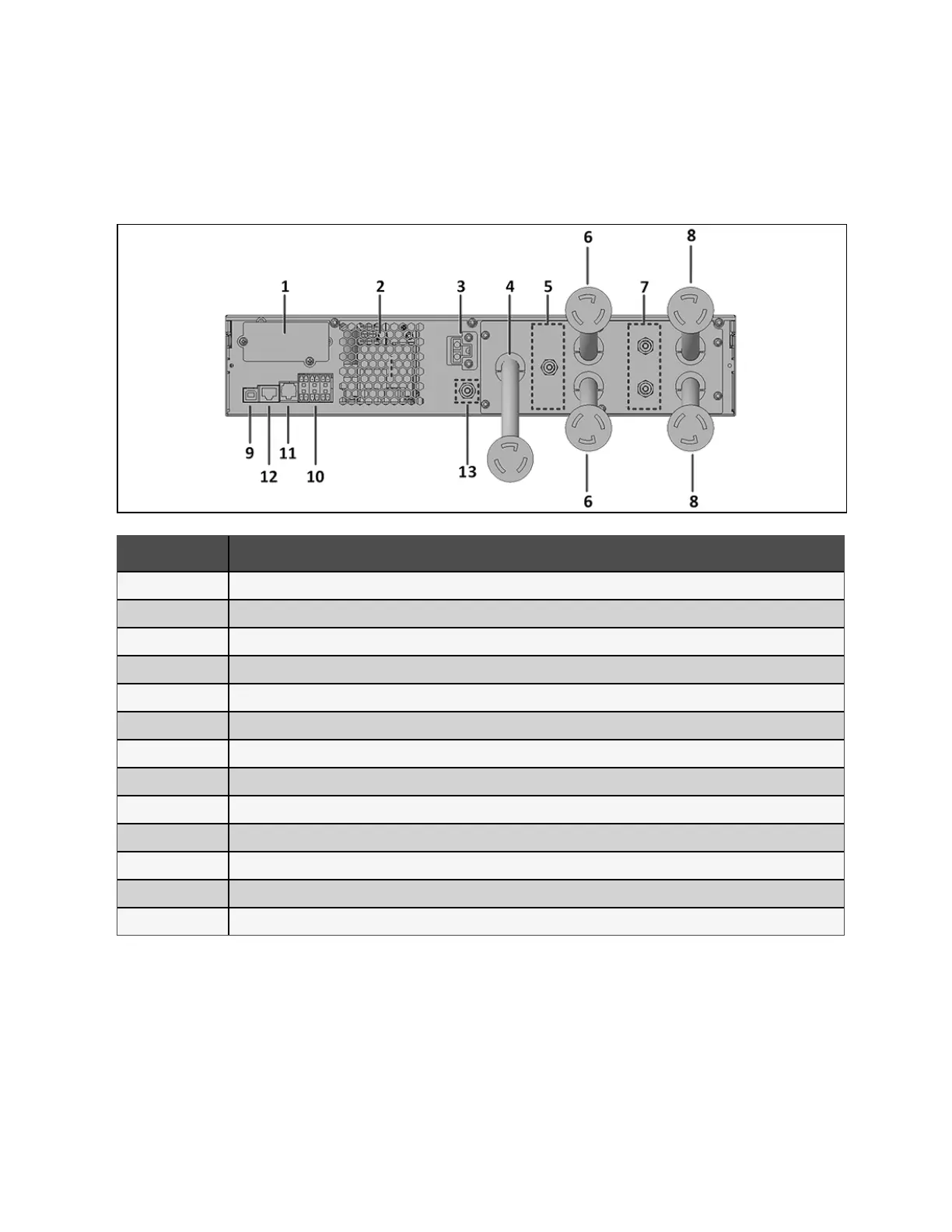

Figure 2.2 GXT5-3KL620RT2UXL Rear Panel
Item Description
1 Vertiv™ Liebert® IntelliSlot™ port
2 Ventilation hole
3 External battery cabinet (EBC) connector
4 Input power cable, L6-20P
5 Output circuit breaker reset button, 20 A
6 Output cable, L6-20R
7 Output circuit breaker reset buttons, 15 A
8 Output cables, L6-15R
9 USB port
10 Terminal-block communication ports
11 RS-232 port - RJ-45/RJ-11 connection used for command line interface
12 RS-485 port - RJ-45 connection used for external temperature sensors
13 Input breaker, 20 A
2 Product Description Proprietary and Confidential ©2024 Vertiv Group Corp. 5
Vertiv™ Liebert® GXT5 UPS Installer/User Guide

Table of Contents

Other manuals for Vertiv LIEBERT GXT5 Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vertiv LIEBERT GXT5 Series and is the answer not in the manual?

Vertiv LIEBERT GXT5 Series Specifications

General IconGeneral
ModelLIEBERT GXT5 Series
Product TypeUPS
TopologyDouble Conversion Online
DisplayLCD
Form FactorTower, Rackmount
Output Voltage200/208/220/230/240 VAC
Output Frequency50/60Hz ±0.1Hz (battery mode)
Typical Backup TimeVaries by model and load
Communication PortsUSB, RS-232
Operating Temperature0°C to 40°C (32°F to 104°F)
Relative Humidity0% to 95% (non-condensing)
DimensionsVaries by model
WeightVaries by model
CertificationsUL, cUL, CE, RoHS
Battery TypeValve Regulated Lead Acid (VRLA)
