Vertiv LIEBERT GXT5 Series Installer And User Guide

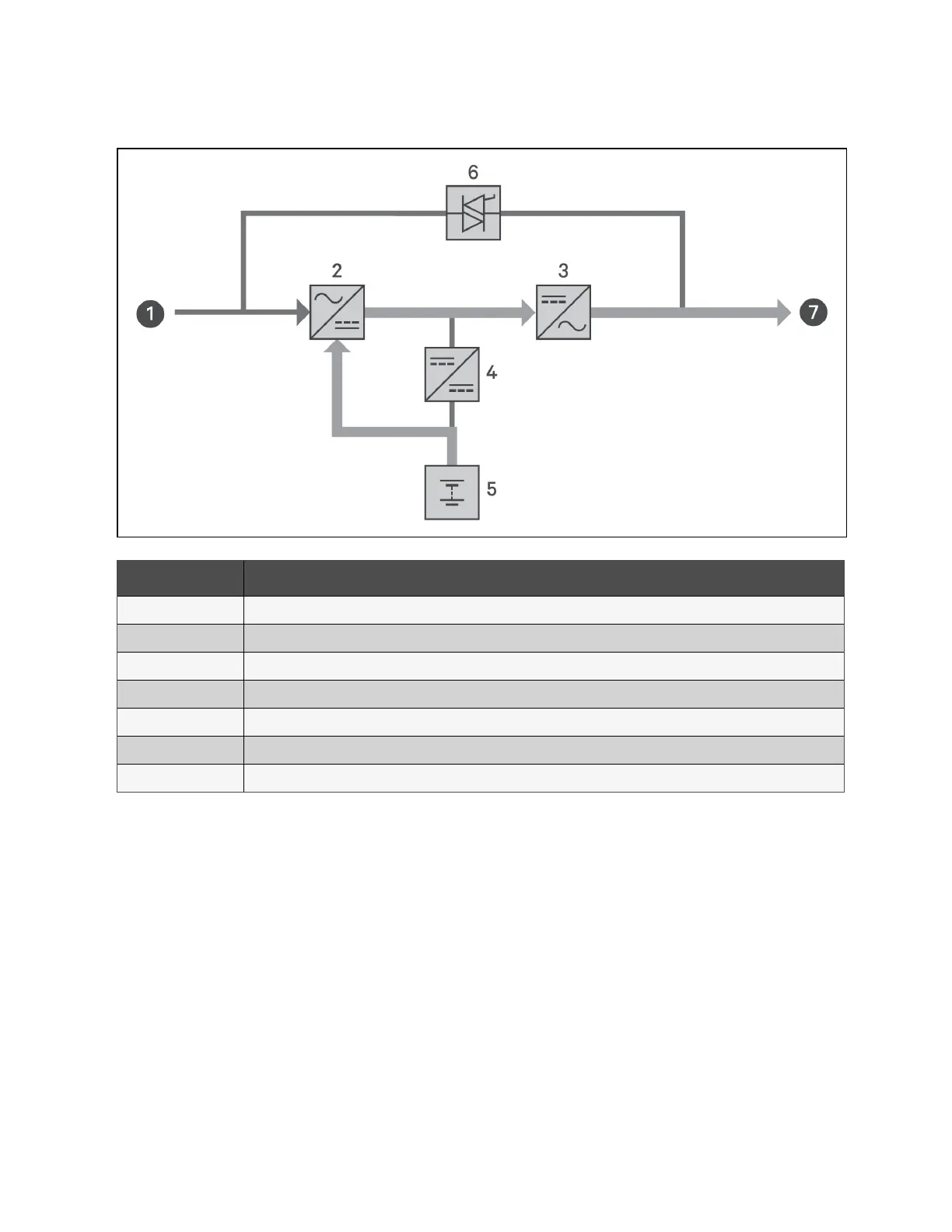

Figure 2.16 Battery Mode Operation
Item Description
1 Mains/Utility input (by-pass input)
2 Rectifier/PFC
3 Inverter
4 Battery charger
5 Battery
6 Bypass static switch
7 UPS output
2.7.4 ECO Mode
NOTE: ECO mode is not available on a parallel (multi-UPS) system.
The energy-saving ECO mode reduces power consumption by powering the load via bypass if the bypass voltage is normal or
by powering the load via the inverter when the bypass voltage is abnormal. You can use ECO mode to power equipment that
is not sensitive to power grid quality to via bypass and reduce power consumption.
NOTE: During ECO mode, if a bypass-failure or abnormal-bypass-voltage notification appears when the output is not
overloaded, the UPS will transfer to Normal Mode. However, if a notification showing bypass failure or abnormal
bypass voltage appears when the output is overloaded, the UPS will shut down the bypass and therefore the load will
shut down.
2.7.5 Maintenance Bypass Mode
NOTE: 5 kVA to 10 kVA models include a circuit breaker to switch the load to maintenance bypass.
16 Proprietary and Confidential ©2024 Vertiv Group Corp. 2 Product Description
Vertiv™ Liebert® GXT5 UPS Installer/User Guide

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
