Used in the unlikely event that the UPS requires maintenance or repair, maintenance bypass mode powers the connected
equipment with utility power while electrically isolating the internal UPS components.
NOTICE
• Risk of power interruption. Can damage the connected equipment.
• If utility power fails or if its quality is out of range while the UPS is in Maintenance Bypass Mode, the UPS may
shut down without notice and shut-off output power to the load.
NOTE: The UPS has no user-serviceable parts. If the UPS malfunctions and requires service, visit
http://www.Vertiv.com/en-us/support/ or contact your local Vertiv representative.

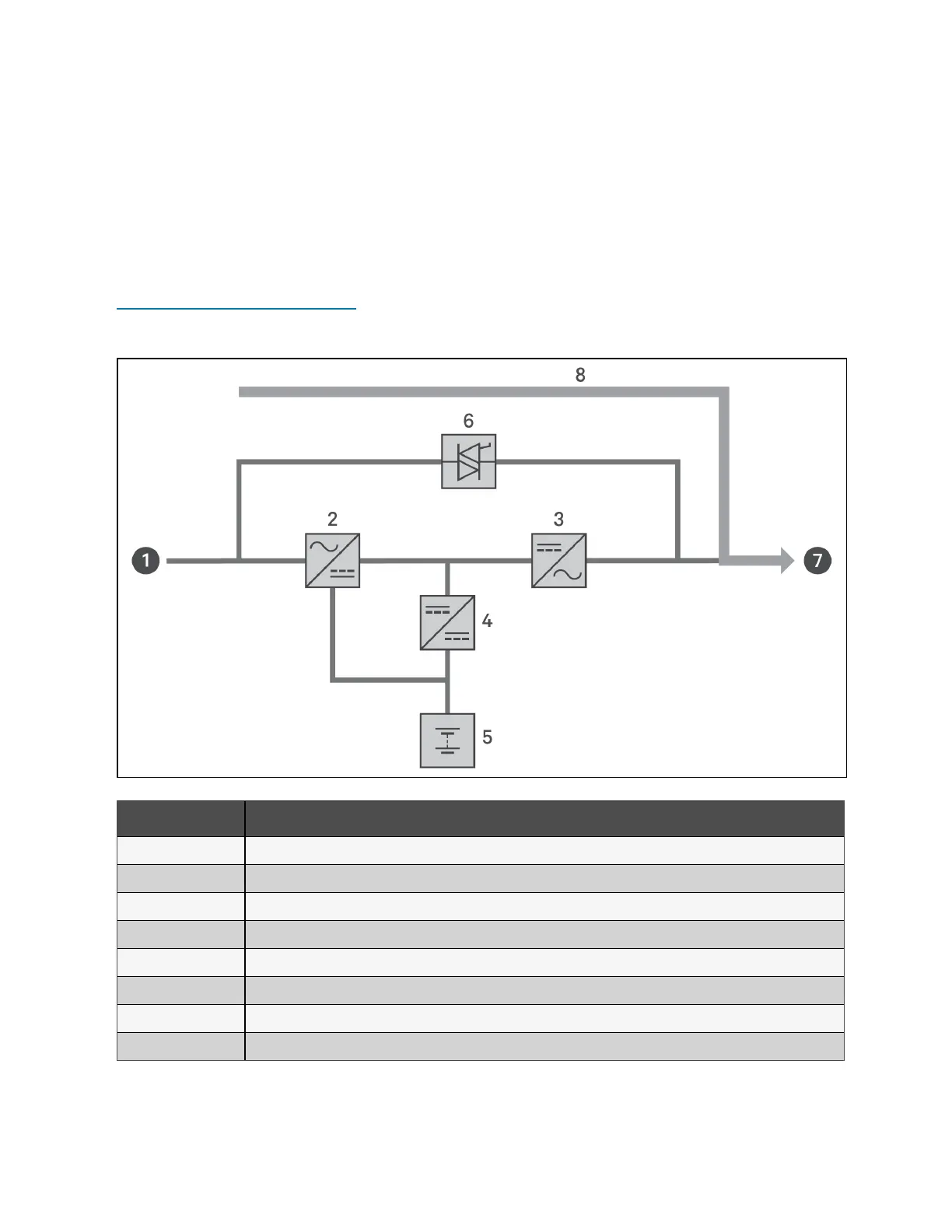

Figure 2.17 Maintenance Bypass Mode Operation
Item Description
1 Mains/Utility input (by-pass input)
2 Rectifier/PFC
3 Inverter
4 Battery charger
5 Battery
6 Bypass static switch
7 UPS output
8 Maintenance bypass
2 Product Description Proprietary and Confidential ©2024 Vertiv Group Corp. 17
Vertiv™ Liebert® GXT5 UPS Installer/User Guide

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
