NOTE: If utility power fails or if the utility voltage goes outside of the permissible range during bypass mode
operation, the UPS shuts down and no output is supplied to the load.

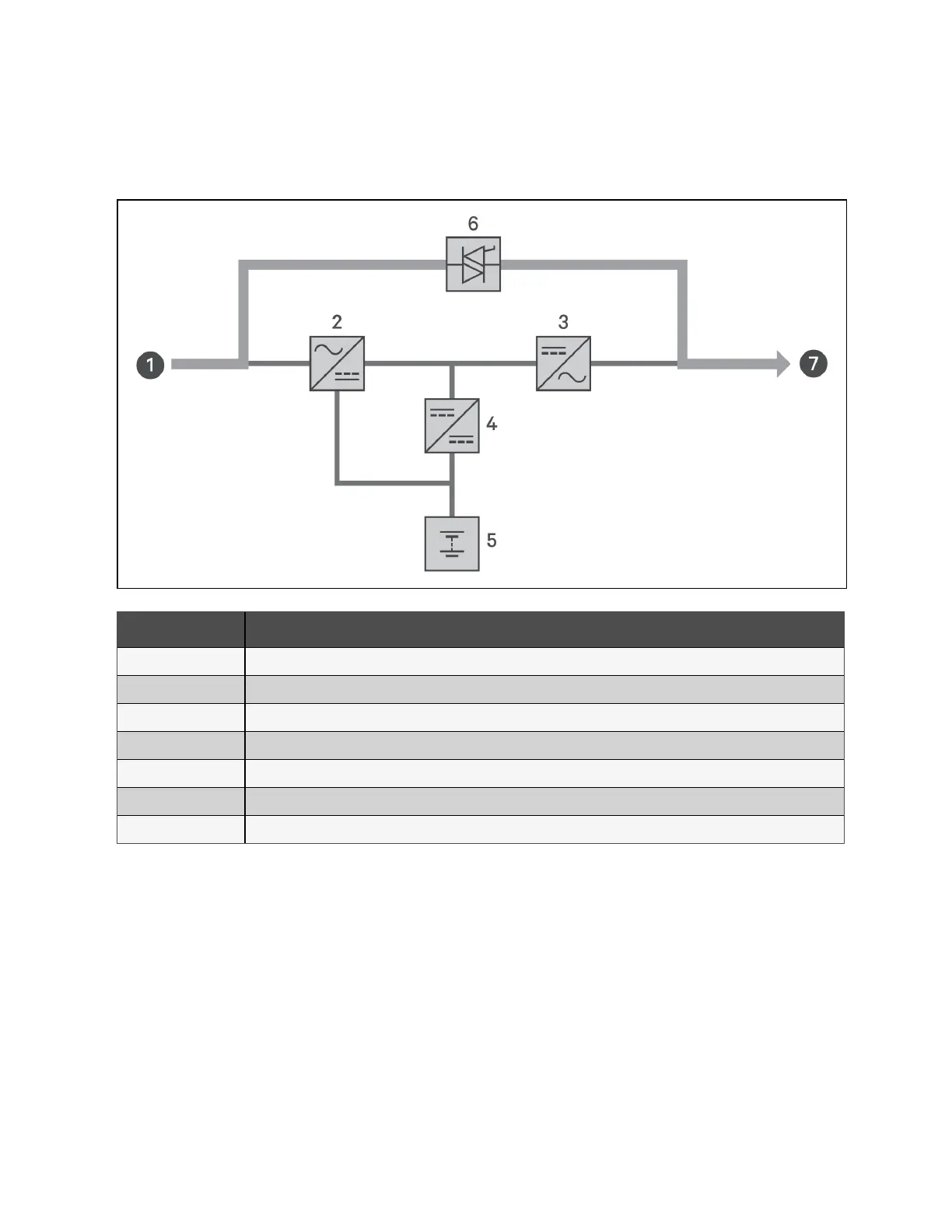

Figure 2.15 Bypass Mode Operation
Item Description
1 Mains/Utility input (bypass input)
2 Rectifier/PFC
3 Inverter
4 Battery charger
5 Battery
6 Bypass static switch
7 UPS output
2.7.3 Battery Mode
Battery mode supplies battery power to the load if utility power fails or if the utility voltage goes outside of the permissible
range. On the front panel display, the run indicator (green) is ON, the alarm indicator (yellow) is ON, and the buzzer beeps
once each second. The LCD Flow screen displays On Battery. Figure 2.16 on the next page shows the diagram of battery
mode.
NOTE: The batteries are fully charged before shipment. However, transportation and storage inevitably cause some
loss of capacity. To ensure adequate back-up time, it is recommended to charge the batteries for at least 8 hours
before first start-up.
NOTE: If utility power fails and the batteries are charged, you may cold-start the UPS in battery mode and use battery
power to extend system availability for a time.
2 Product Description Proprietary and Confidential ©2024 Vertiv Group Corp. 15
Vertiv™ Liebert® GXT5 UPS Installer/User Guide

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
