Do not install input and output wiring in the same conduit.
Unit Rating Recommended Breaker Rating
3KL620 20 A
3KL630 30 A
6KL630 30 A
5 kVA 50 A
8 kVA 60 A
10 kVA 70 A
Table 3.1 Branch Circuit Breaker Rating

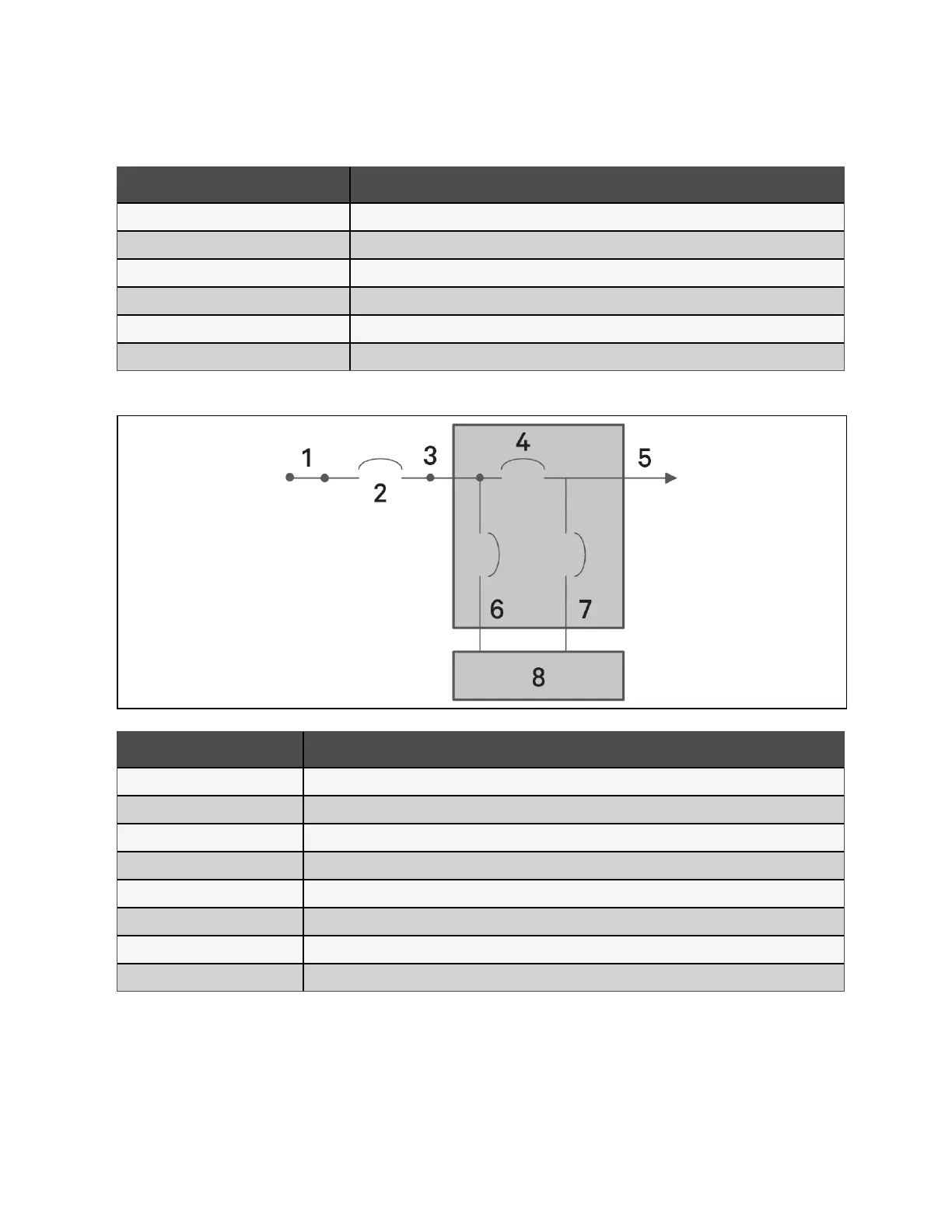

Figure 3.3 Circuit Breakers Diagram
Item Description
1 Mains/Utility
2 External branch Circuit Breaker
3 Input
4 Maintenance Bypass Circuit Breaker
5 Output
6 Input Circuit Breaker
7 Output Circuit Breaker
8 UPS-PFC, battery inverter
3.6.2 Terminal Block Connections
On 5 kVA and 10 kVA models, the hard wire connections to the terminal blocks are made through knockouts on the POD
attached to the rear of the unit. See Removable Power Distribution Box on page10, for the location of the input/output
knockouts on your Vertiv™ Liebert® GXT5 model.
24 Proprietary and Confidential ©2024 Vertiv Group Corp. 3 Installation
Vertiv™ Liebert® GXT5 UPS Installer/User Guide
