Vertiv LIEBERT GXT5 Series Installer And User Guide

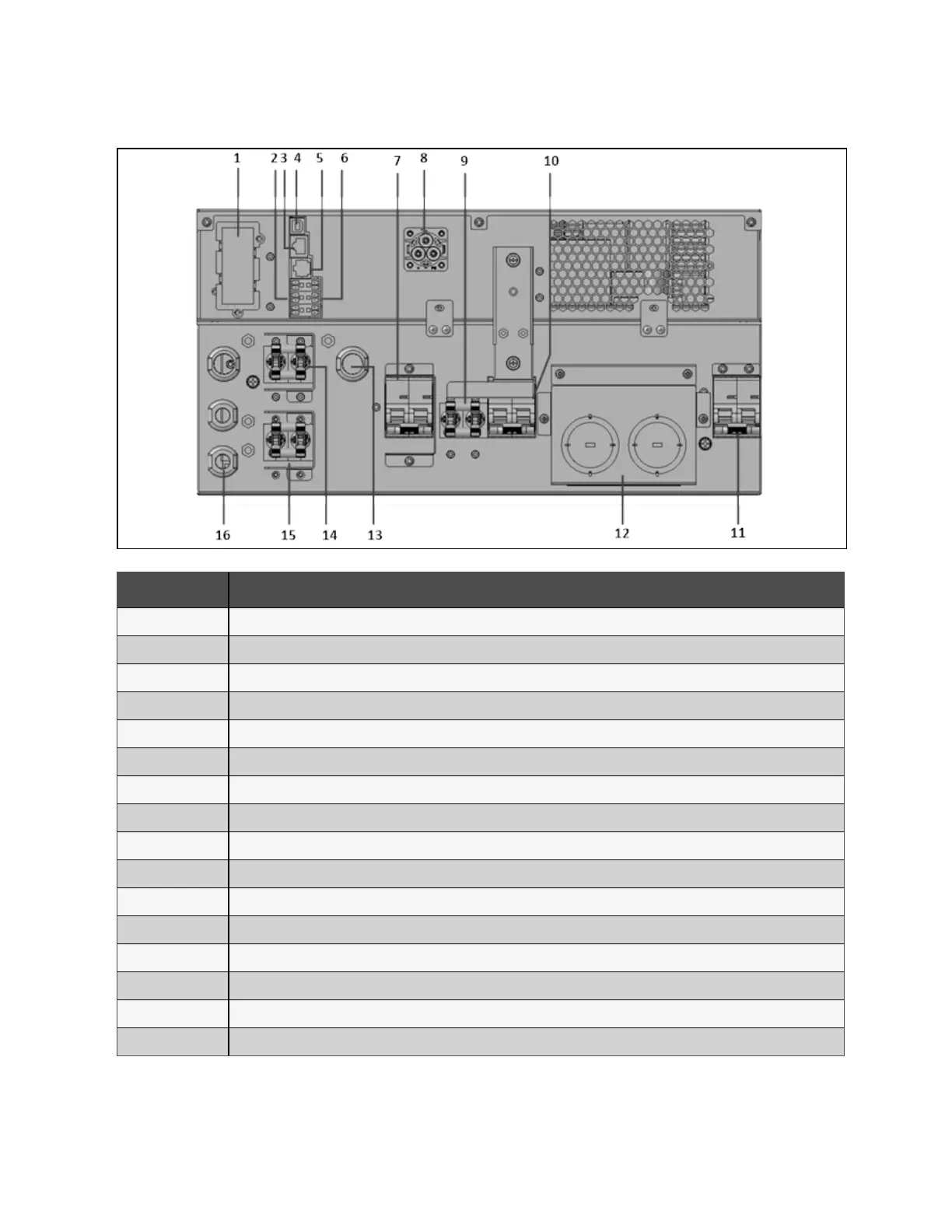

Figure 2.4 GXT5-5000HVRT5UXLN Rear Panel
Item Description
1 Liebert® IntelliSlot™ port
2 Terminal-block communication connectors
3 RS-485 port - RJ-45 connection used for external temperature sensors
4 USB port
5 RS-232 port - RJ-45/RJ-11 connection used for command line interface
6 REPO connector
7 Output circuit breaker
8 EBC connector
9 Programmable outlet maintenance bypass breaker
10 Maintenance bypass breaker
11 Input circuit breaker
12 Removable junction box with knockouts for hardwire I/O
13 L6-30R output receptacle (2x)
14 L6-30R output breaker
15 Programmable L6-20R output breaker
16 Programmable L6-20R output receptacle (2x)
2 Product Description Proprietary and Confidential ©2024 Vertiv Group Corp. 7
Vertiv™ Liebert® GXT5 UPS Installer/User Guide

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
