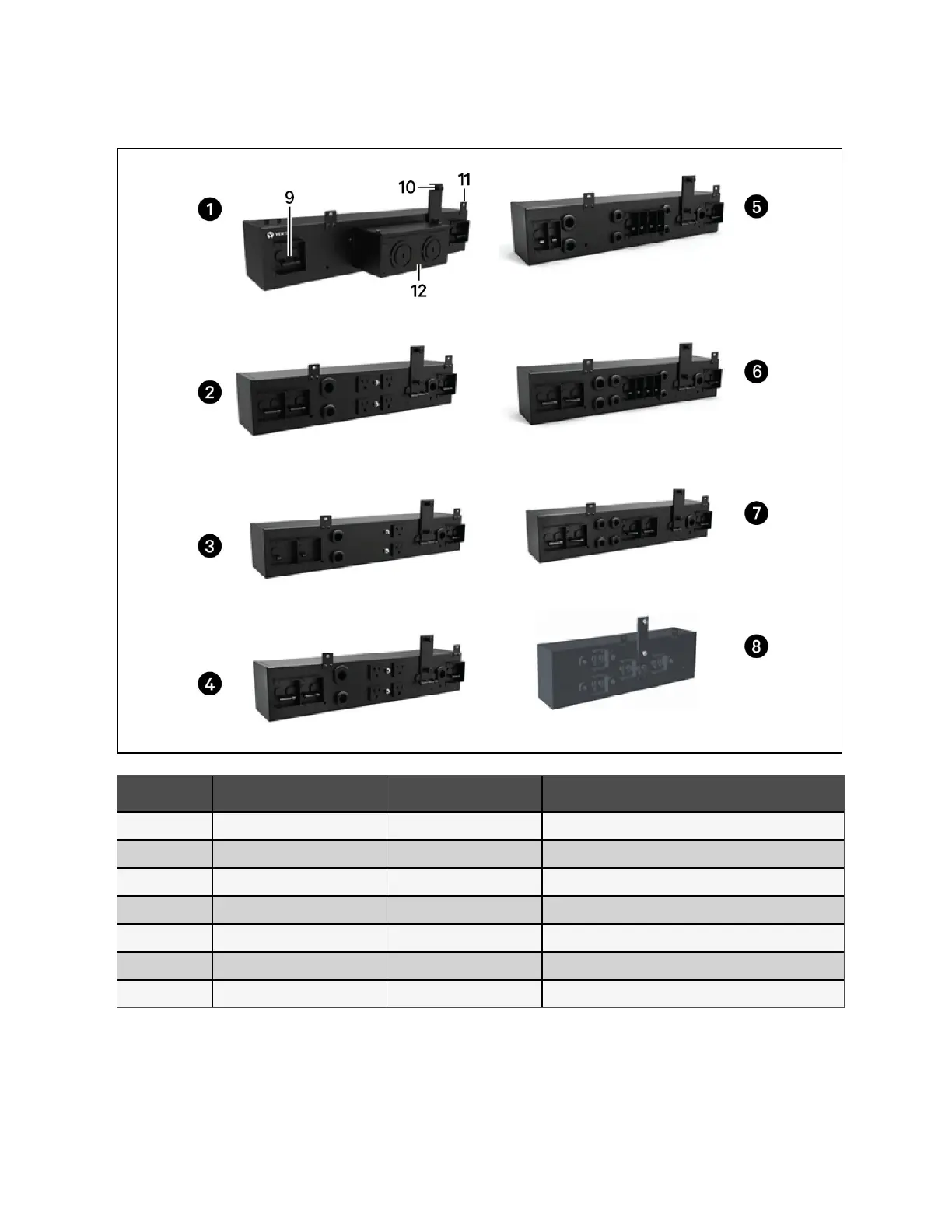

Figure 2.5 Power Output Distribution Options for GXT5 5000/6000MVRT4UXLN
Item Part Number Input Connections Description
1 PD5-UL6HDWR-MBS Hardwire Hardwire
2 PD5-001 L14-30P 1x L14-30R, 1x L6-30R, 4x 5-15/20 T slot
3 PD5-002 L14-30P 2x L6-20R, 2x 5-15/20R T slot
4 PD5-003 L14-30P 2x L6-30R, 4x 5-15/20R T slot
5 PD5-004 L14-30P 4x L5-20R, 2x L5-30R
6 PD5-005 L14-30P 4x L5-20R, 2x L6-30R
7 PD5-006 L14-30P 4x L6-20R
NOTE: In Figure 2.6 on the next page, the components on PD2-101 are labeled. The features are arranged differently
on other PODs.
2 Product Description Proprietary and Confidential ©2024 Vertiv Group Corp. 7
Vertiv™ Liebert® GXT5 UPS Installer/User Guide
