Vertiv Liebert GXT5 Installer/User Guide

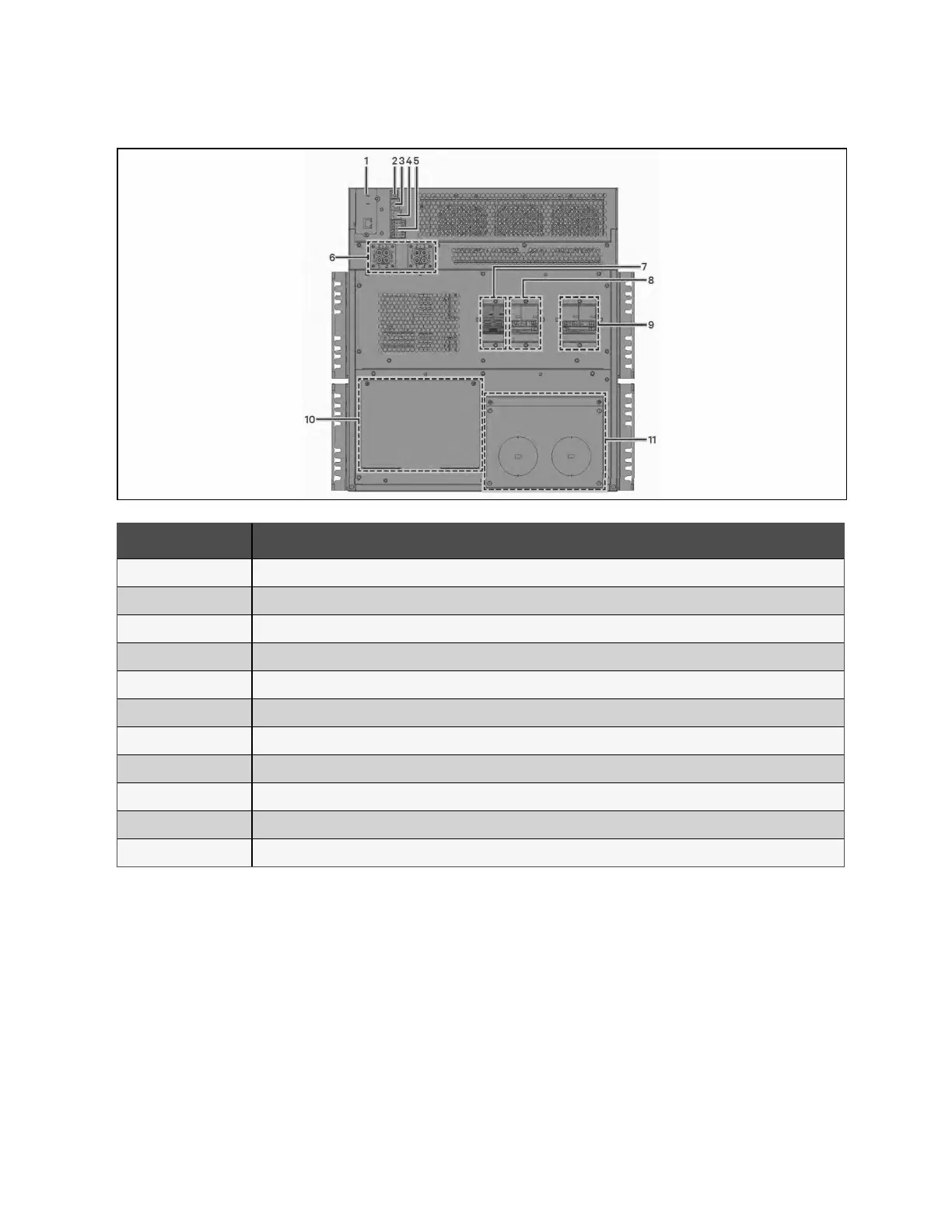

Figure 2.4 GXT5 15/20KMVRT11UXLN Rear Panel
Item Description
1 Vertiv™ Liebert® IntelliSlot™ port
2 USB port
3 RS-485 port — Used for external temperature sensors
4 RS-232 port — Used for CLI
5 Dry contacts, Battery detection (3), REPO input (REPO)
6 EBC connector
7 POD breaker
8 Output breaker
9 Input breaker
10 Cover for power distribution box connector
11 Knockouts for hard wired input and output
2.4 Removable Power Distribution Box
The 5 kVA and 6 kVA models ship with the PD5-UL6HDWR-MBS installed. This power output distribution box (POD) includes
the input circuit breaker for the UPS, and the POD options are shown in Figure 2.5 on the facing page.
The 8 kVA and 10 kVA models ship with the standard POD installed. The POD options are shown in Figure 2.6 on page8, and
Figure 2.7 on page9.
NOTE: Output power capacity after derating with POD can be found under the About menu at the Efficiency tab.
NOTE: In Figure 2.5 on the facing page, the components on PD5-001 are labeled. The features may be arranged
differently on other PODs.
6 Proprietary and Confidential ©2024 Vertiv Group Corp. 2 Product Description
Vertiv™ Liebert® GXT5 UPS Installer/User Guide

Vertiv Liebert GXT5 Specifications

General

Output Voltage	200/208/220/230/240 VAC
Topology	Double Conversion Online
Input Voltage	200/208/220/230/240 VAC
Output Frequency	50/60 Hz
Display	LCD
Operating Temperature	0 to 40°C (32 to 104°F)
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack/Tower
Power Capacity	1-20 kVA
Communication Ports	USB, RS-232
Waveform Type	Sinewave
Input Frequency	50/60 Hz
Power Factor	0.9
Operating Humidity	0-95% non-condensing
Battery Type	Valve-regulated lead acid (VRLA)
