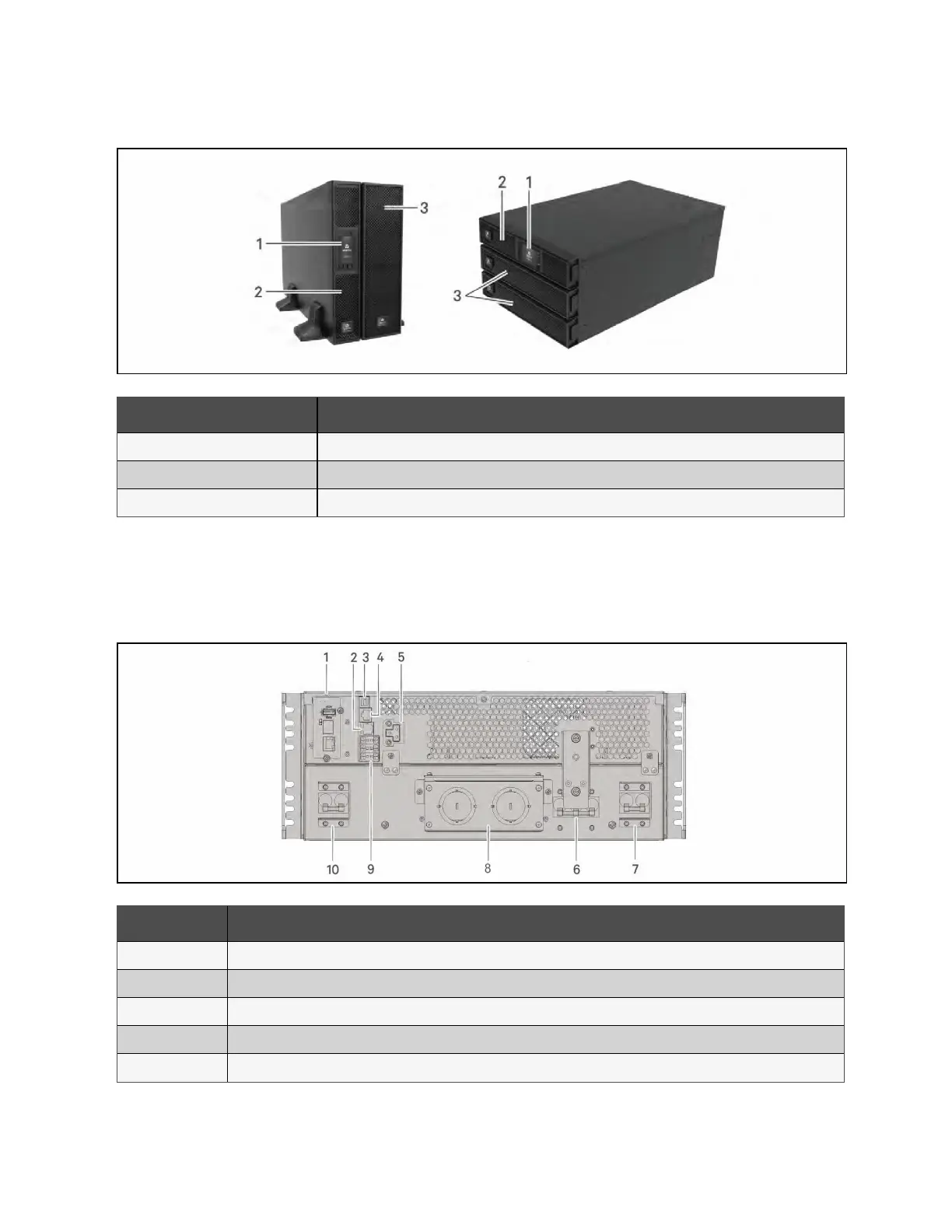

Figure 2.1 Front View
Item Description
1 Operation/Display panel
2 Upper bezel
3 Lower bezel/battery access door
2.3 Rear Panels
The following figures detail the rear panel features for each Liebert® GXT5 model.
Figure 2.2 GXT5-5000/6000MVRT4UXLN Rear Panel
Item Description
1 Vertiv™ Liebert® IntelliSlot™ port
2 RS-232 port, RJ-45/RJ-11 connection—Used for CLI
3 USB port
4 RS-485 port, RJ-45 connection—Used for external temperature sensors
5 External battery cabinet (EBC) connector
4 Proprietary and Confidential ©2024 Vertiv Group Corp. 2 Product Description
Vertiv™ Liebert® GXT5 UPS Installer/User Guide
