2.5 Internal Battery Packs
The internal battery packs for all Vertiv™ Liebert® GXT5 MV models, shown in Figure 2.8 below, are located behind the access
door on the front of the UPS. 5 kVA and 6 kVA units have 1 battery pack, and 8 kVA and 10 kVA units have 2 battery packs
and 15 kVA and 20 kVA units have 4 battery packs.

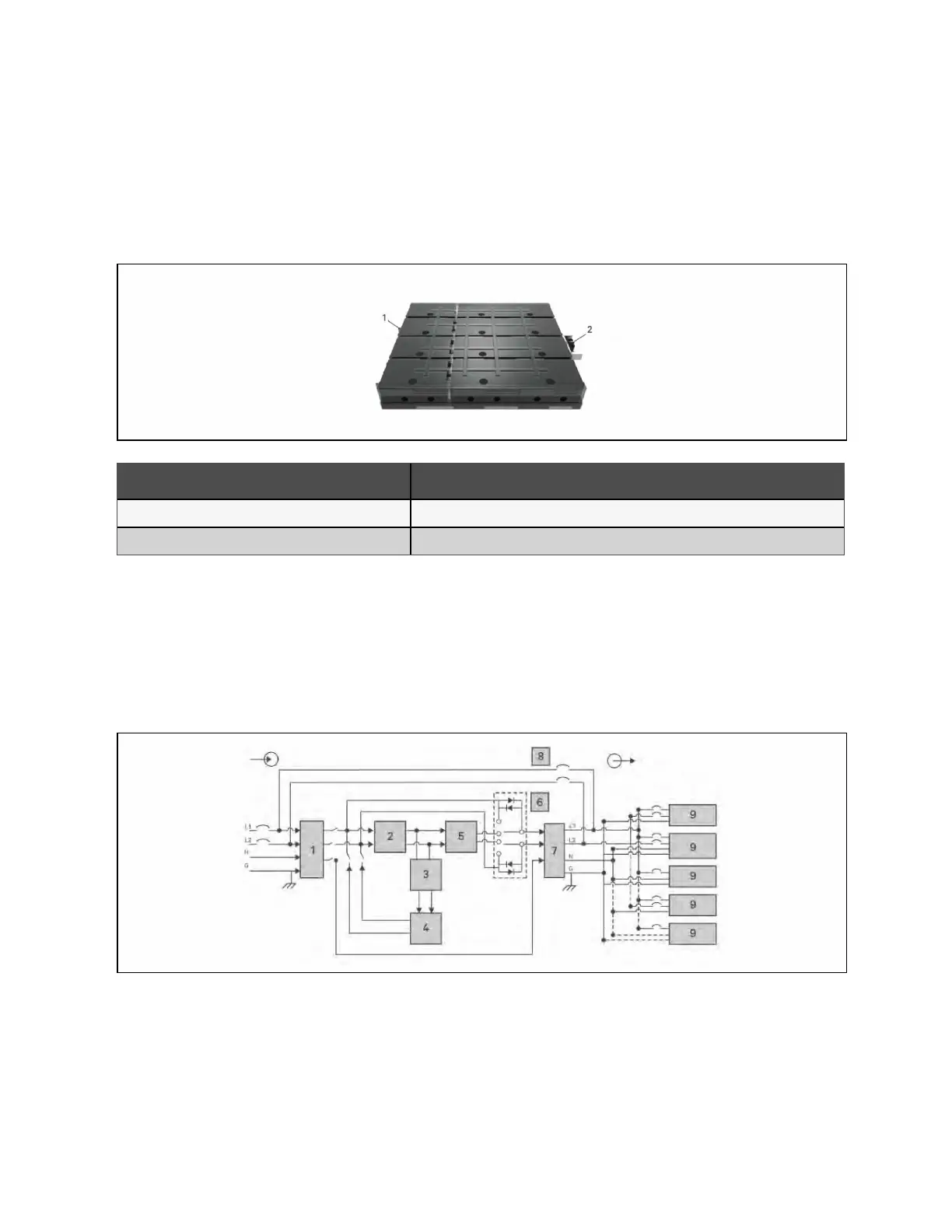

Figure 2.8 Internal Battery Pack
Item Description
1 Handle
2 Connector
2.6 Major Internal Components and Operating Principle
Figure 2.9 below, shows the UPS operating principle. Table 2.2 on the facing page, describes the function of the major
components in the UPS.
NOTE: Figure 2.9 below, is one example of basic operation.
Figure 2.9 Basic Operating Principle Diagram
10 Proprietary and Confidential ©2024 Vertiv Group Corp. 2 Product Description
Vertiv™ Liebert® GXT5 UPS Installer/User Guide
