Item Description
6 Maintenance bypass breaker (MBB)
7 Input breaker
8 Knockouts for hard wired input and output
9 Terminal block communication connectors
10 Output breaker

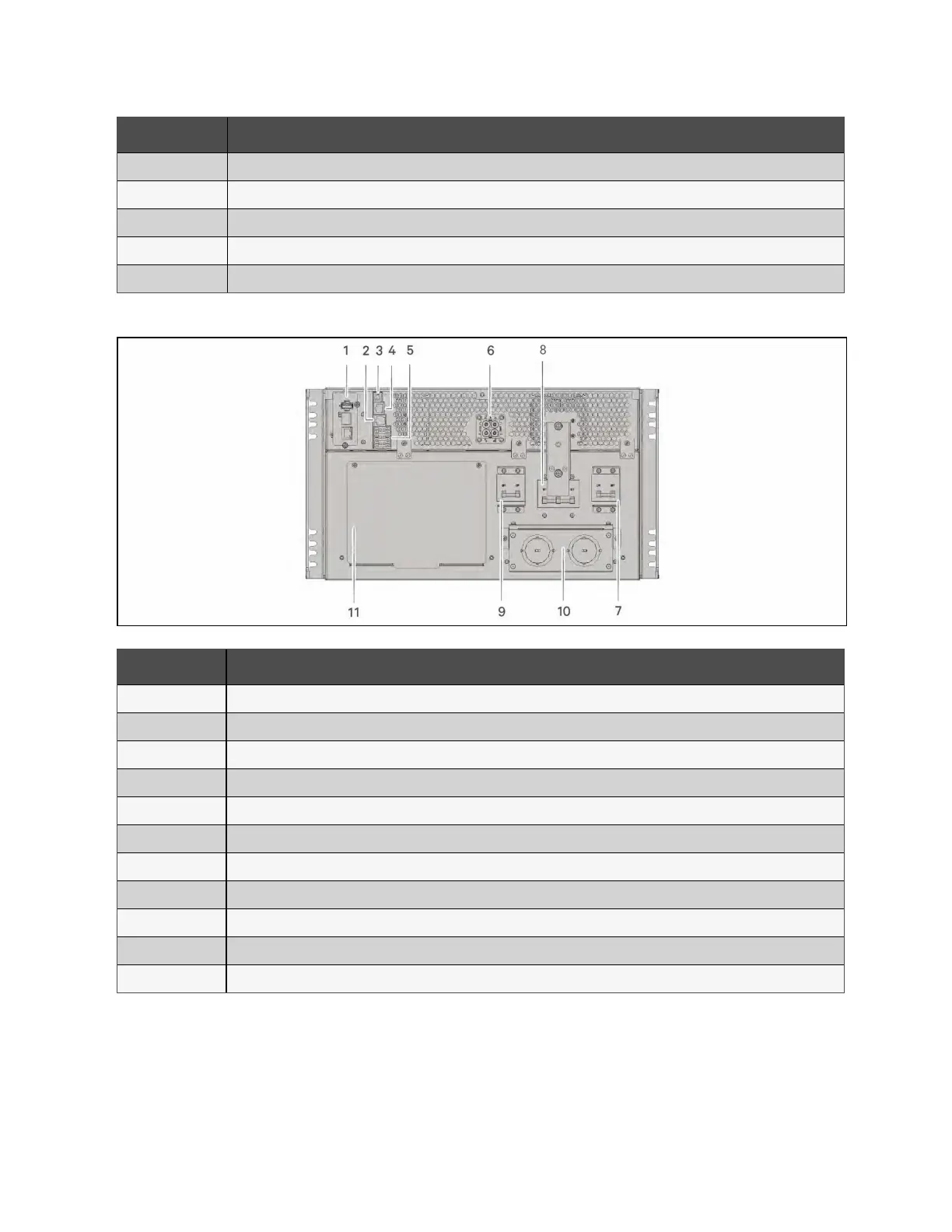

Figure 2.3 GXT5-8000/10KMVRT6UXLN Rear Panel
Item Description
1 Vertiv™ Liebert® IntelliSlot™ port
2 RS-232 port, RJ-45/RJ-11 connection Used for CLI
3 USB port
4 RS-485 port, RJ-45 connection Used for external temperature sensors
5 Terminal-block communication connectors
6 EBC connector
7 Output breaker
8 Maintenance bypass breaker
9 Input breaker
10 Knockouts for hard wired input and output
11 Cover for power distribution box connector
2 Product Description Proprietary and Confidential ©2024 Vertiv Group Corp. 5
Vertiv™ Liebert® GXT5 UPS Installer/User Guide

Table of Contents

Other manuals for Vertiv Liebert GXT5

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vertiv Liebert GXT5 and is the answer not in the manual?

Vertiv Liebert GXT5 Specifications

General IconGeneral
Output Voltage200/208/220/230/240 VAC
TopologyDouble Conversion Online
Input Voltage200/208/220/230/240 VAC
Output Frequency50/60 Hz
DisplayLCD
Operating Temperature0 to 40°C (32 to 104°F)
DimensionsVaries by model
WeightVaries by model
Form FactorRack/Tower
Power Capacity1-20 kVA
Communication PortsUSB, RS-232
Waveform TypeSinewave
Input Frequency50/60 Hz
Power Factor0.9
Operating Humidity0-95% non-condensing
Battery TypeValve-regulated lead acid (VRLA)
