If a second subfeed or large branch breaker will be installed, the same pattern will continue. Pins
11 and 12 will be Phase A CT for the second breaker, Pins 13 and 14 will be Phase B CT and so on.

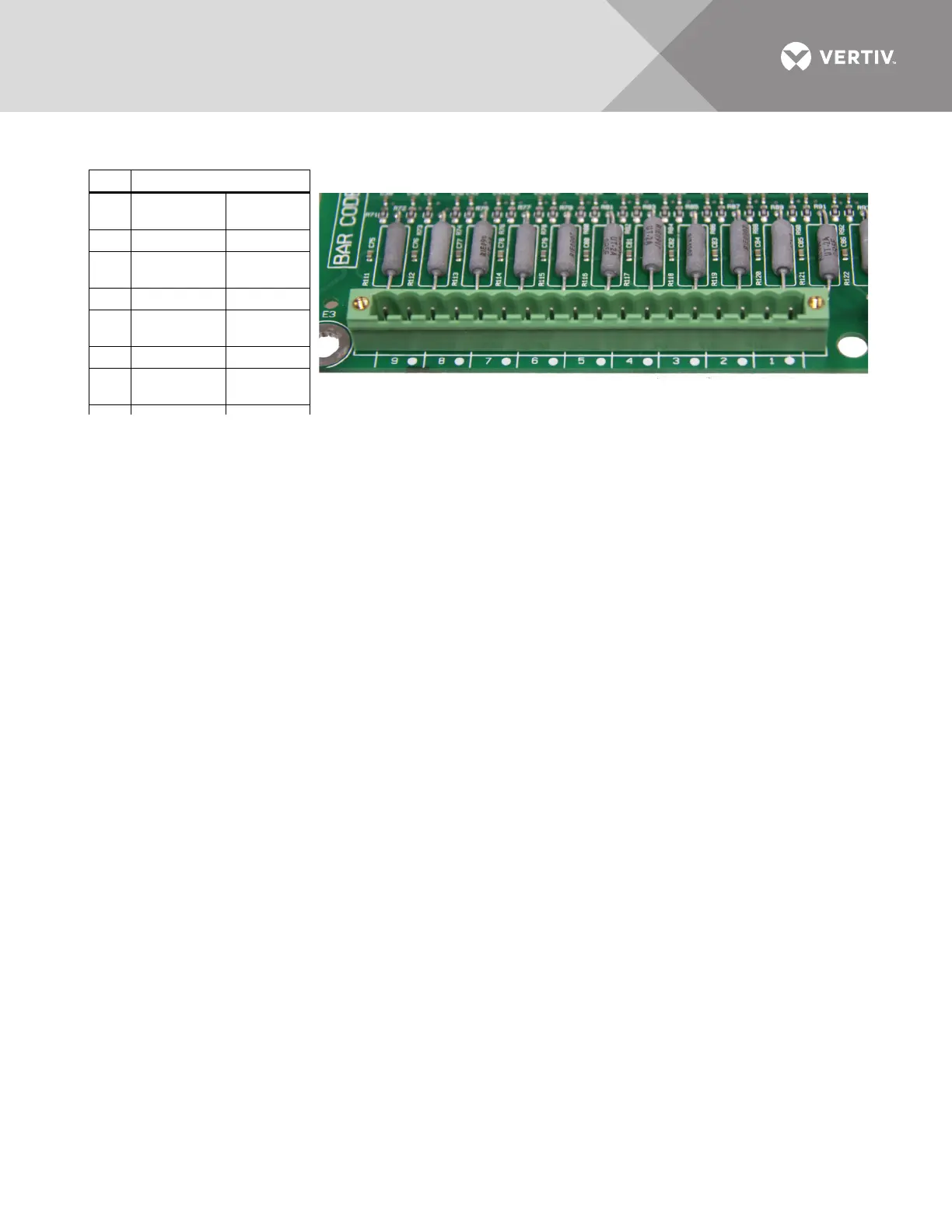

Table 2 Large branch breaker CT wiring
Pin Wiring
1Phase A CT
White
wire
2 Phase A CT Black wire
3Phase B CT
White
wire
4 Phase B CT Black wire
5Phase C CT
White
wire
6 Phase C CT Black wire
7Neutral CT
White
wire
8 Neutral CT Black wire
