In Figure 2-2, the air conditioner is lifted using the forklift truck and is aligned with the center
of gravity. While moving the indoor unit, the obliquity needs to be maintained within an angle
inclination of 75° to 105°.

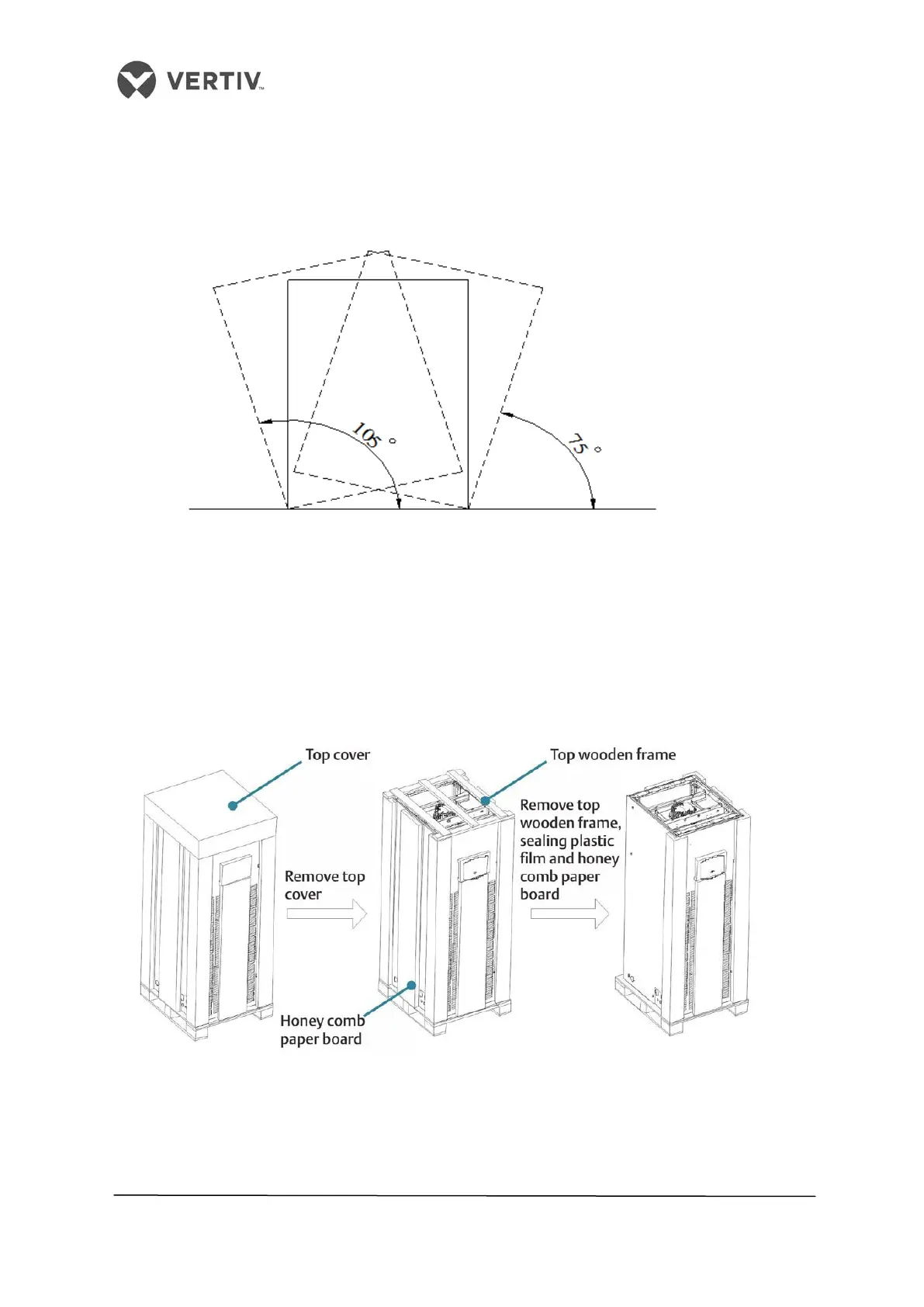

Refer to Figure 2-2 to understand the concept better:
Figure 2-2 Handling Inclination
2.1.2 Unpacking for Paper Packaging
Once the equipment is closest to the final installation site, unpack the system. Following are
the important steps to be implemented in the hierarchy mentioned in the following list for
unpacking:
• Remove the top cover and tangled stretch film before removing the honeycomb
board as shown in Figure 2-3:
Figure 2-3 Unpacking the system
• The unit is fixed on a base pallet with M8 * 65 bolts. Use a 14mm wrench to remove
those bolts. Figure 2-4 shows the unit fixed on the base pallet using the M8 * 65
bolts.
