Contact Vertiv Co. for non-standard production queries if the height of the platform
selected for an air conditioning unit exceeds 600mm.
2.6.2 Base pallet cut-out location dimensions
Following is a schematic diagram that depicts the cut-out location and dimensions of the
base pallet. The coil outlet is visible after removing the side panel from the base pallet.
Figure 2-15 shows the dimensions and position of the coil outlet:

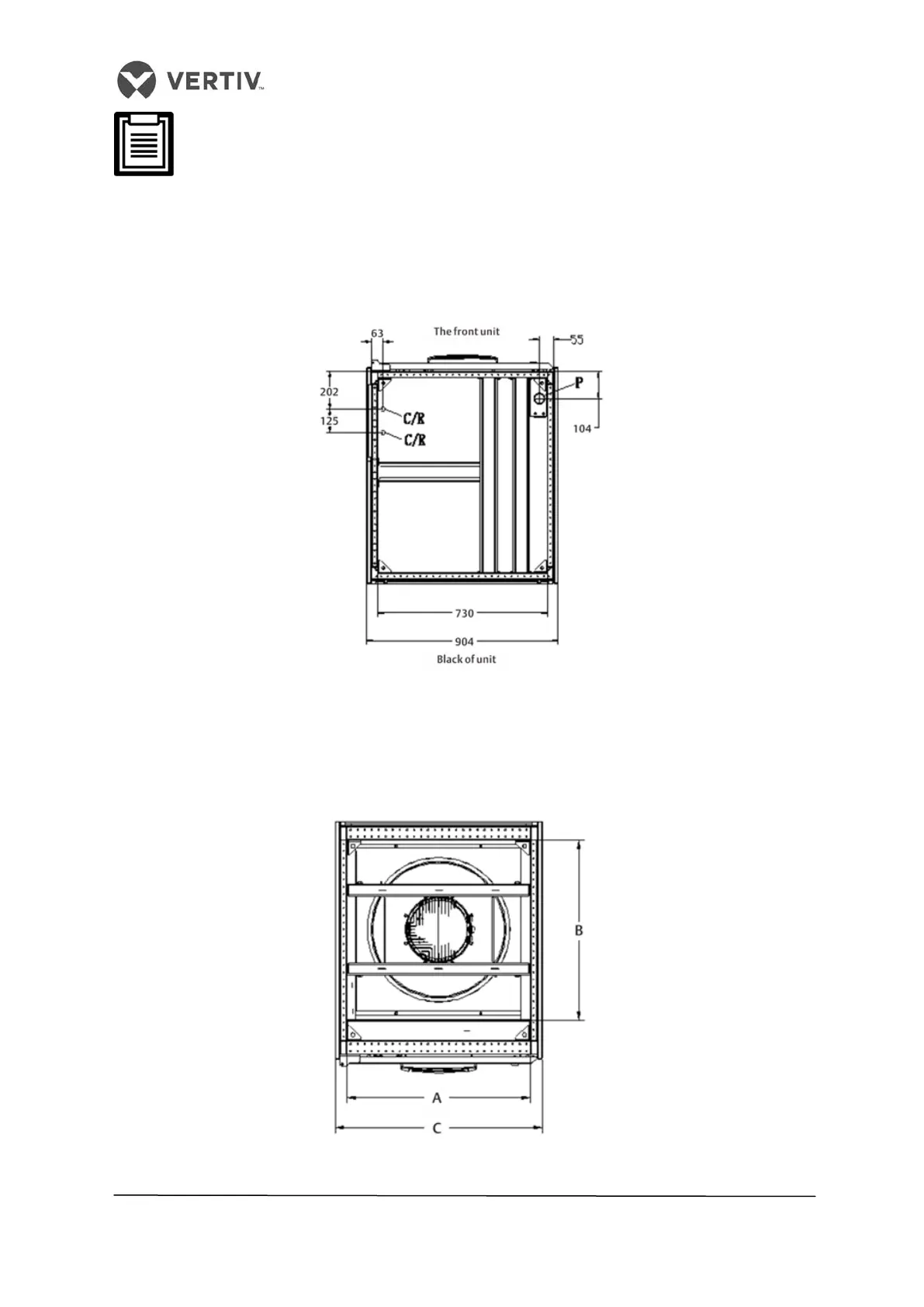

Figure 2-15 Base Pallet cut- out Location dimensions
2.6.3 Positions & Dimensions of the Top-cover
The positions and dimensions of the air outlet on the top cover of the unit are depicted in
Figure 2-16 and Table 2.3.
Figure 2-16 Position of the air outlet on the top cover of the unit
