Installation of the Indoor unit
The base shall be created by the installation team according to the dimensions, weight, and
height of the units to ensure that structural stability and rigidity meets the requirement. The
base can be created by the users; alternatively, Vertiv Co. can be asked to create it too.

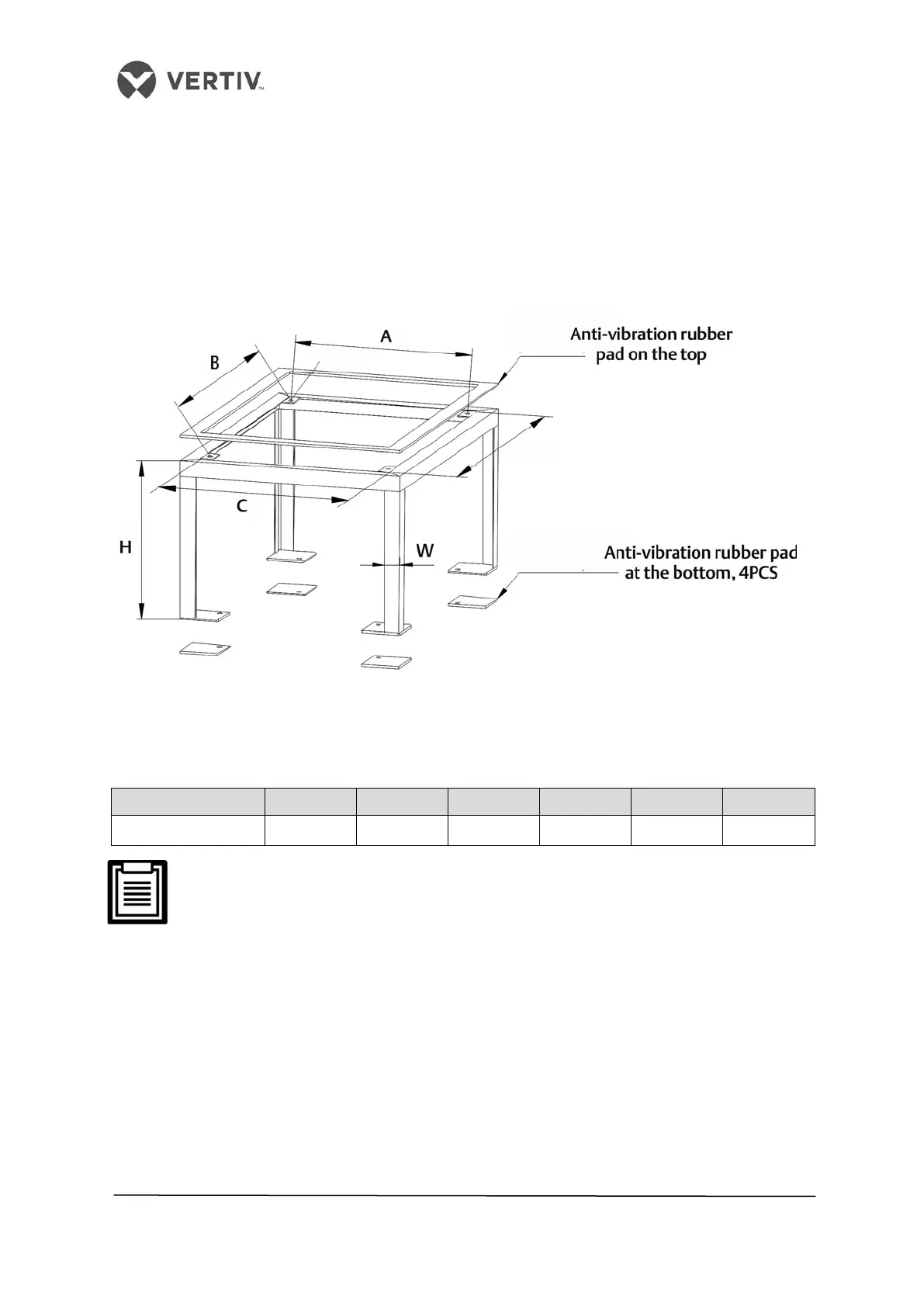

Figure 2-18 depicts a schematic diagram of the production base along with the specific
dimensions.
Figure 2-18 Appearance and dimensions of base (unit: mm)
Refer to the table 2.4 to view the base dimensions for the LPC models:
Table 2.4
Models A B C D H W
L1015U 610 710 650 750 350<H<550 40
Remember that the external side boards of the unit cannot bear the weight.
Next, install the stand and the indoor unit cabinet apart from adding a rubber cushion as
explained in the following steps:
2.7.1 Installing the base
• Determine the installation position in accordance with the requirements discussed in
the Installation Space requirements discussed earlier in the Installation Preparations
chapter
• Fix the base on the selected mounting position
• Fix the base to the ground using expansion bolts or spot welding
To Next Page
