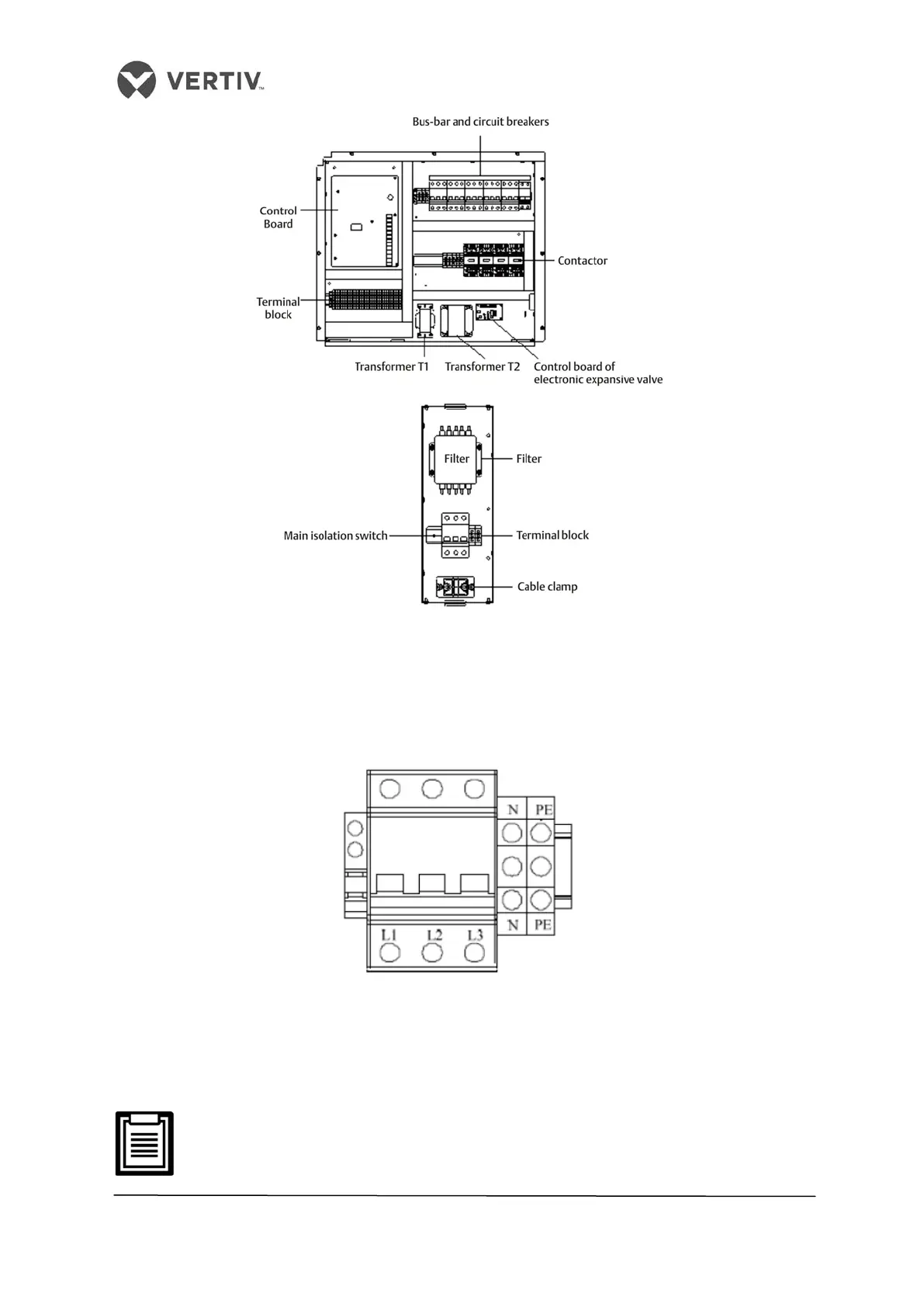

Figure 2-27 Location of low voltage devices & electric control box
2.12.2 Connecting the power cable of the indoor unit
The power connectors are located as displayed in the preceding image (Refer Figure 2-27).
The enlarged view of the power connectors is shown in Figure 2-28.
Figure 2-28 Macroscopic view of the power connectors
Connect the terminals L1, L2, and L3, N, PE respectively to the corresponding counterparts of
the external power supply. Fix the cable to the cable clamp located at the inner side panel of
the unit.
The cable sizes should meet the local wiring regulations.
