2) Initially, straighten all the hooks fixed with side board 1. Once the hooks are
straightened, removed the sideboard 1.
3) Follow the same procedure with sideboard 2.
4) On straightening all the hooks and removing sideboard 2, remove the top cover 3.

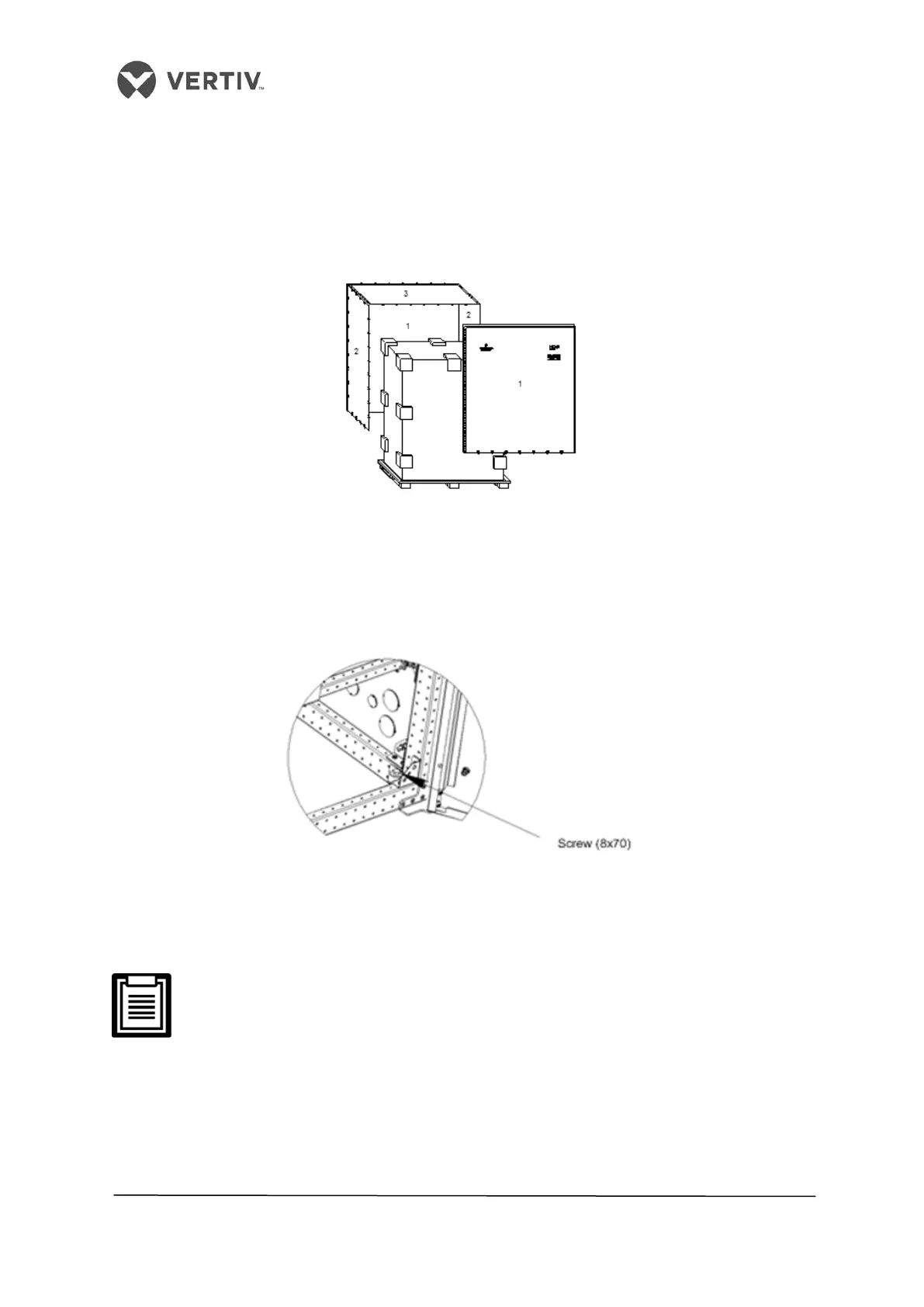

Figure 2-8 shows the process of removing the Sideboards and the top cover:
Figure 2-8 Removing the Side boards and Top cover
5) The unit is fixed to the base pallet with an 8*70 screw.
The unit is fixed to the base pallet with an 8*70 screw. Figure 2-9 depicts the positions of the
wooden screws.
Figure 2-9 Positions of the wooden screws
A 17mm open-end spanner, ratchet spanner, or sleeve can be used to remove the fixing
screws.
The plastic bags should not be damaged during the unpacking process for dust
protection on the AC unit as per the requirement.
2.1.5 Inspection
Moving forward, check the system fittings and its components against the packing list to
ensure that everything is in place and the assembly is intact. If any parts are missing or
damaged, immediately report to the carrier about the same. If hidden damages are observed,
then contact the local offices of that carrier as well as Vertiv Co. at the earliest.
