Vertiv I Liebert LPC I User Manual

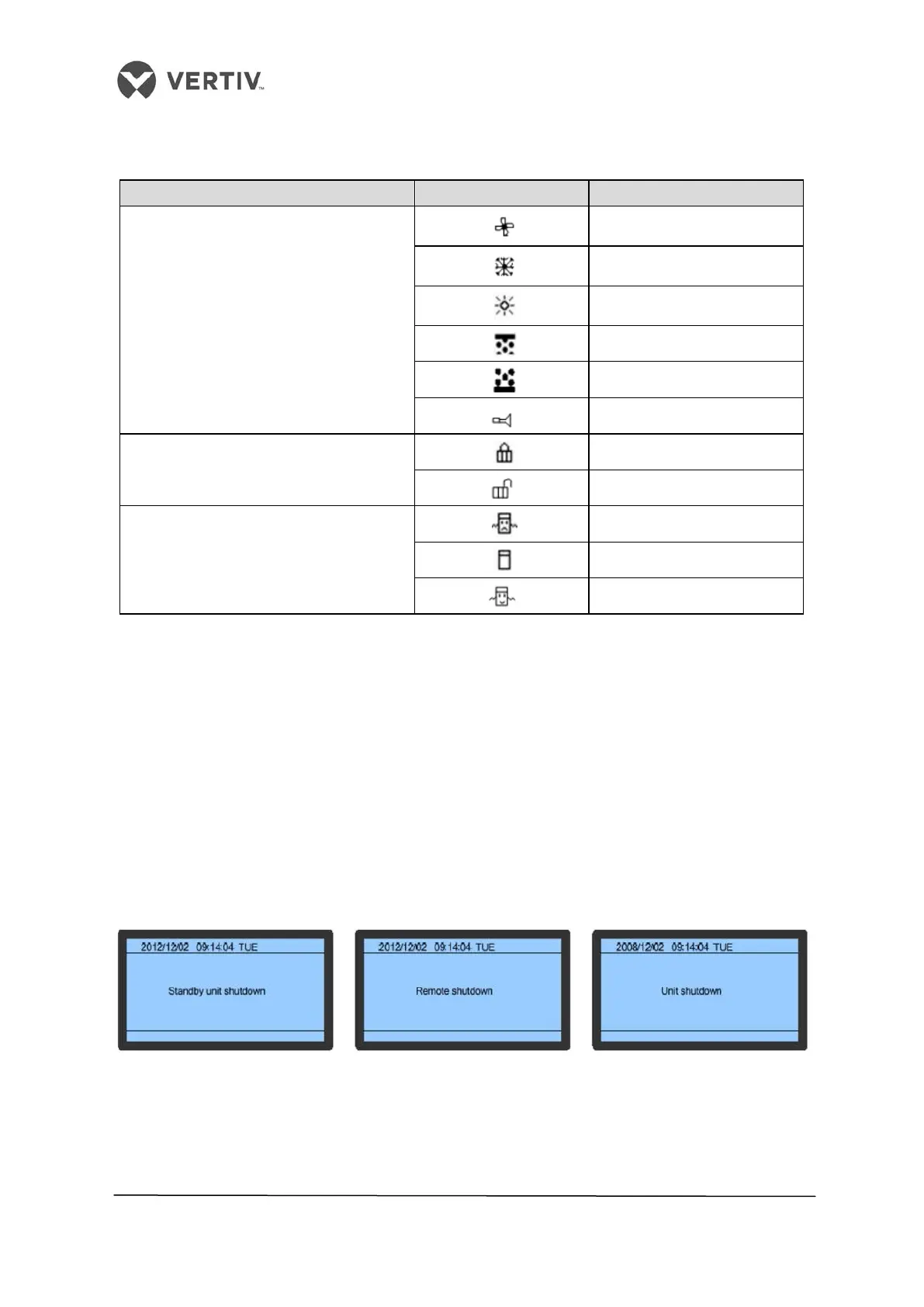

The following table 4.3 shows the functions and their descriptions for the icons:
Table 4.3
Mode Icon Definition
Dynamic Running State
Fan Running
Cooling
Heating Status
Humidifying
Dehumidifying
General Alarm
Locking Stat
Locked
Unlocked
On/Off/Standby State
Standby
Shutdown
Running
4.4.2 Shutdown Interface
If the air conditioner is in the Shutdown status, on successful communication, the controller
will display the shutdown interface. The Display’s Shutdown interface depends on the
shutdown mode of the unit, namely –
• Standby Unit Shutdown
• Remote Shutdown
• Unit Shutdown
Figure 4-3 shows the 3 shutdown controller modes based on the shutdown state of the air
conditioner:
Figure 4-3 Shutdown interface
