Multi-Sensor 360 User Manual
Chapter 1: Product Introduction
Copyright © 2021 Vicon Industires Inc. All Rights Reserved.
ChaPter 1: ProduCt IntroduCtIon
Overview
Hardware Specifications
Camera
▪ Image sensor: 4pcs: 1/2.8” 4K CMOS progressive sensor
▪ Lens: 4 Motorized Lenses; 3.1~10mm
▪ FOV (H/V/D; tele-wide): 32°-96°/24°- 69°/40°-124°
▪ Maximum resolution (each channel): 2592 to 640x480
▪ Pan/Tilt: Remotely adjustable, Pan 360°, Tilt 90°
▪ IR distance:
– 131 ft (40M) if powered by IEEE802.3bt
– 98 ft (30M) if powered by IEEE802.3at (V1000 series only)
▪ Day and night: Supported
▪ WDR: 120dB (True WDR)
▪ Minimum illumination (@30IRE; BW IR Off): 0.03 lux; BW: 0.01 lux
▪ Electronic shutter speed: Auto/Manual 1/7~1/20000
▪ Gain control: Auto/Manual
▪ Backlight compensation: Yes
▪ White balance mode: Auto/Manual
▪ Image settings:
– Brightness, Contrast, Saturation, Sharpness, Mirror, Flip
▪ Local storage: Support (stream 2, 640*480), 2x SD card
▪ Analytics: VMD (5 zones), tampering, intrusion detection,
line counting/cross, area counting, Museum Search
▪ Min. Object Distance: 3.28 ft (1 meter)
Video and Audio
▪ Video compression: H.265/H.264/M-JPEG
▪ Video streaming: Triple streaming
▪ Frame rate: Up to 30fps at 20MP

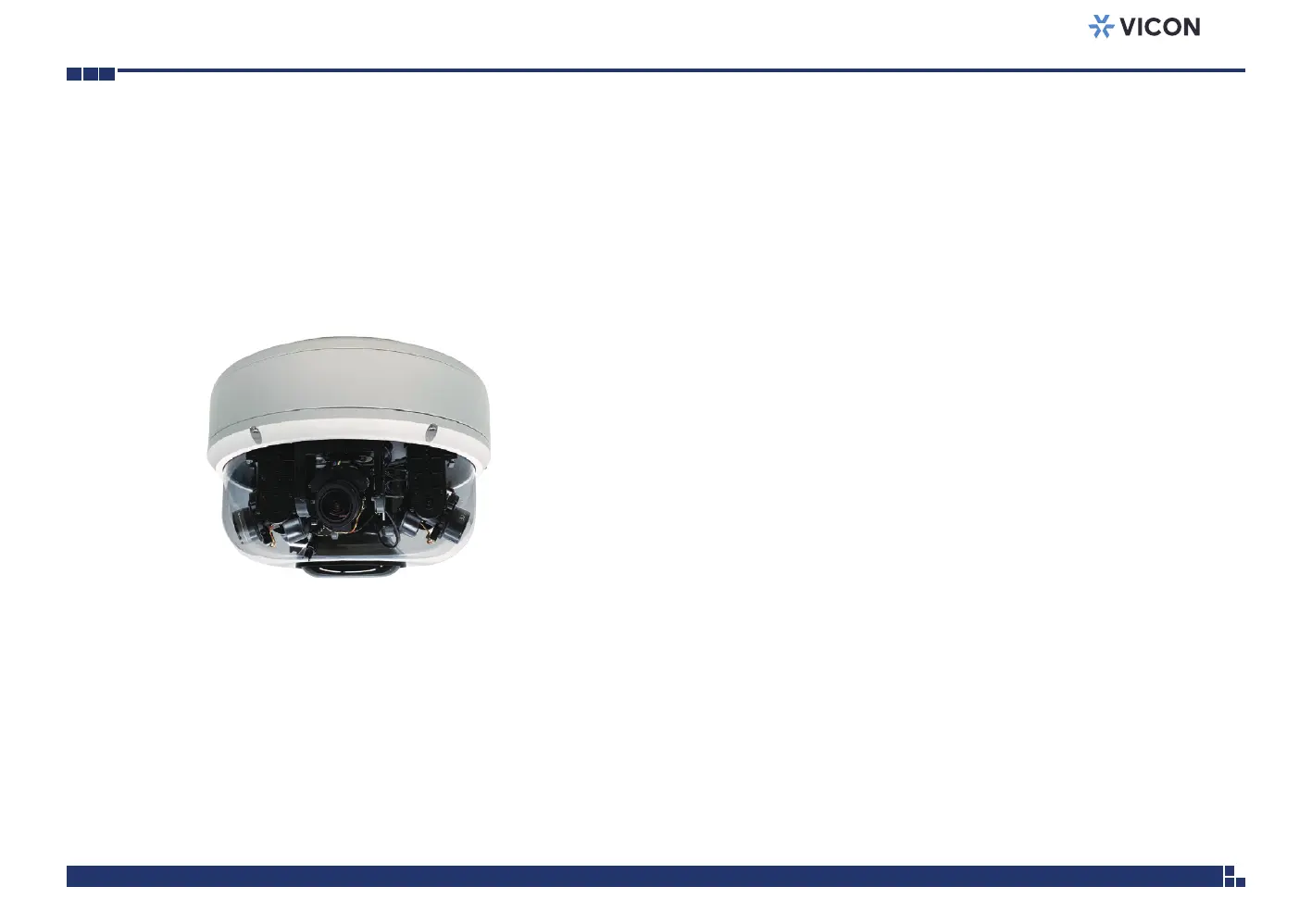

The information in this manual covers both the V1000-WIR-360 and
the V2000-WIR-360 multi-sensor cameras. Some of the graphics may
differ between the two cameras but the functionality is the same.
