Operation
43

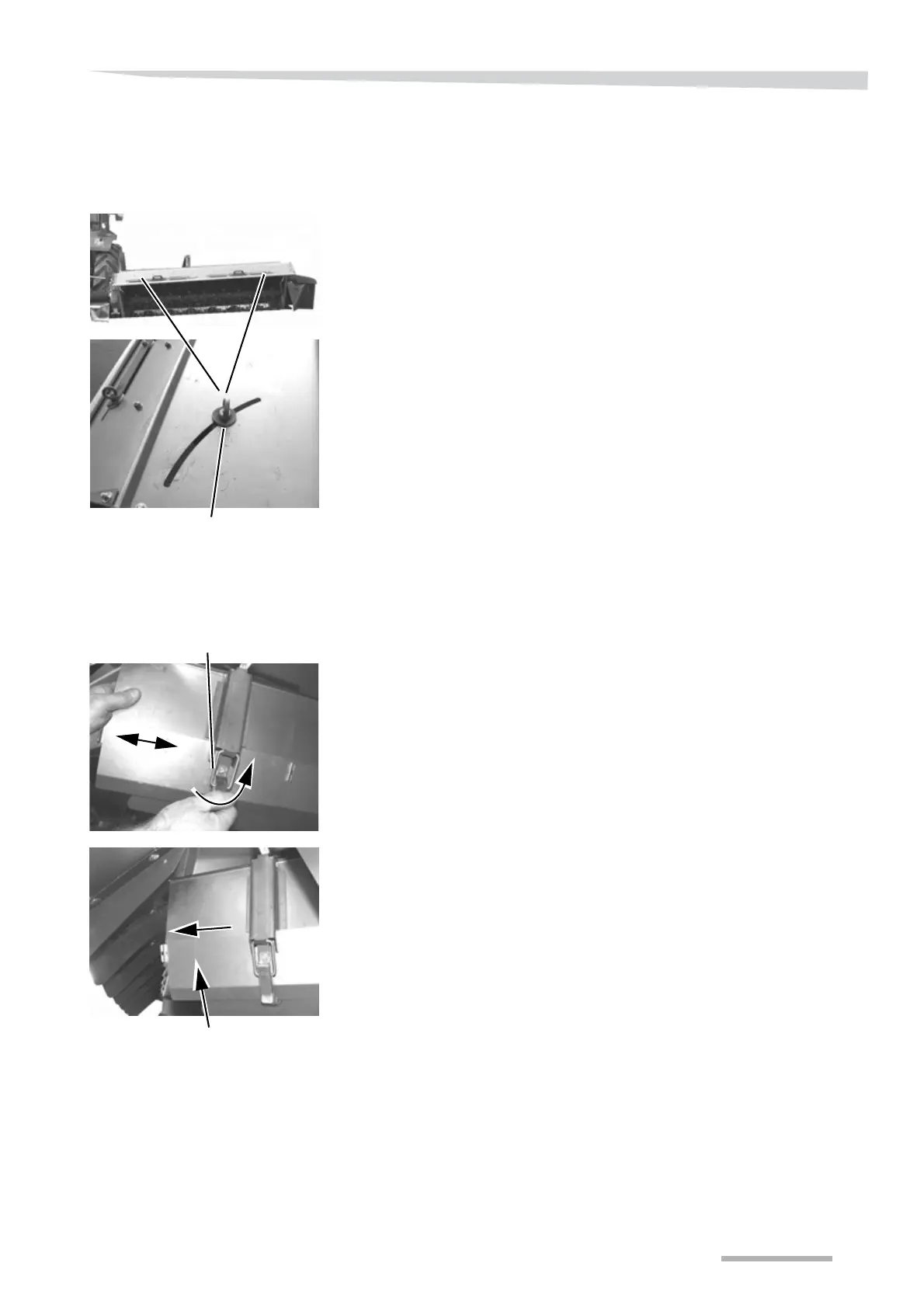

Deflector plates
The machine is fitted with 2 deflector plates, making it possible to ad-
just the swath width for the following collection with chopper.
The cutting swath should be as broad and even as possible.
The deflector plates are equipped with adjustable plates as shown.
> Use the appropriate tools and loosen the ring nut.
> Adjust the deflector plates to the desired cutting width.
> Tighten the ring nut on the deflector plates.
T
IP
!
After every adjustment, it is recommended that the plates needed for
extending the deflector plates are adjusted as far to the rear of the ma-
chine as possible.
The deflector plates are adjusted in the following way:
> Loosen the snap-lock.
> Adjust the length of the deflector plates.
> Tighten the snap-lock.
Ring nut
Snap-lock
Pull the plates out as far as possible
