Videotek VTM-2000 - Pinouts

RCU-2000 Remote Control Unit
VTM-2000 Installation and Operation Handbook
C-5
Pinouts

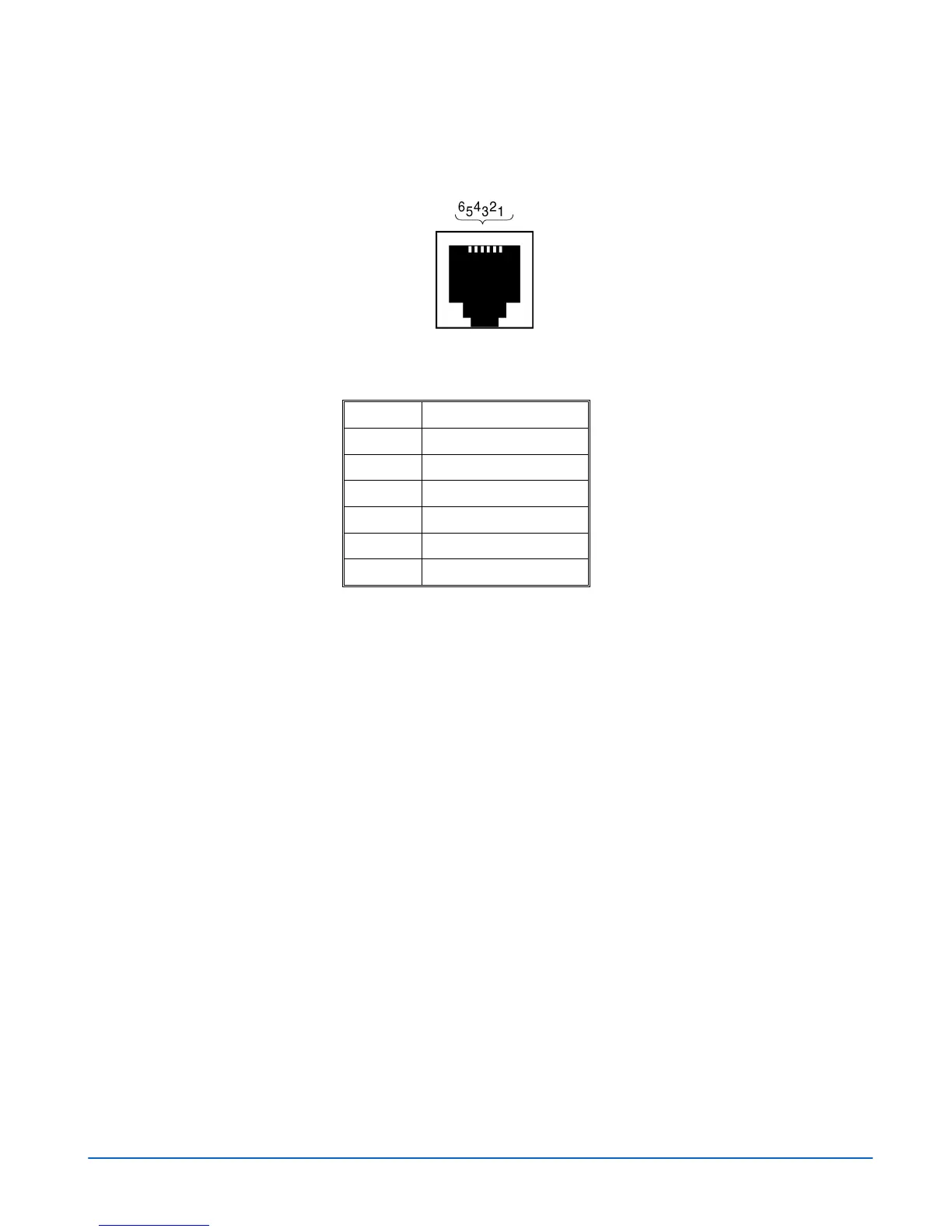

Figure C-3. RCU-2000 TO MAIN UNIT RJ-11 Connector
Table C-3. Pinouts for RCU-2000 TO MAIN UNIT Connector
Pinout Signal
1
GND
2
Transmit from RCU
3
Transmit from RCU
4
Received by RCU
5
Received by RCU
6
GND
