VTM-2000 Installation and Operation Handbook
B-2

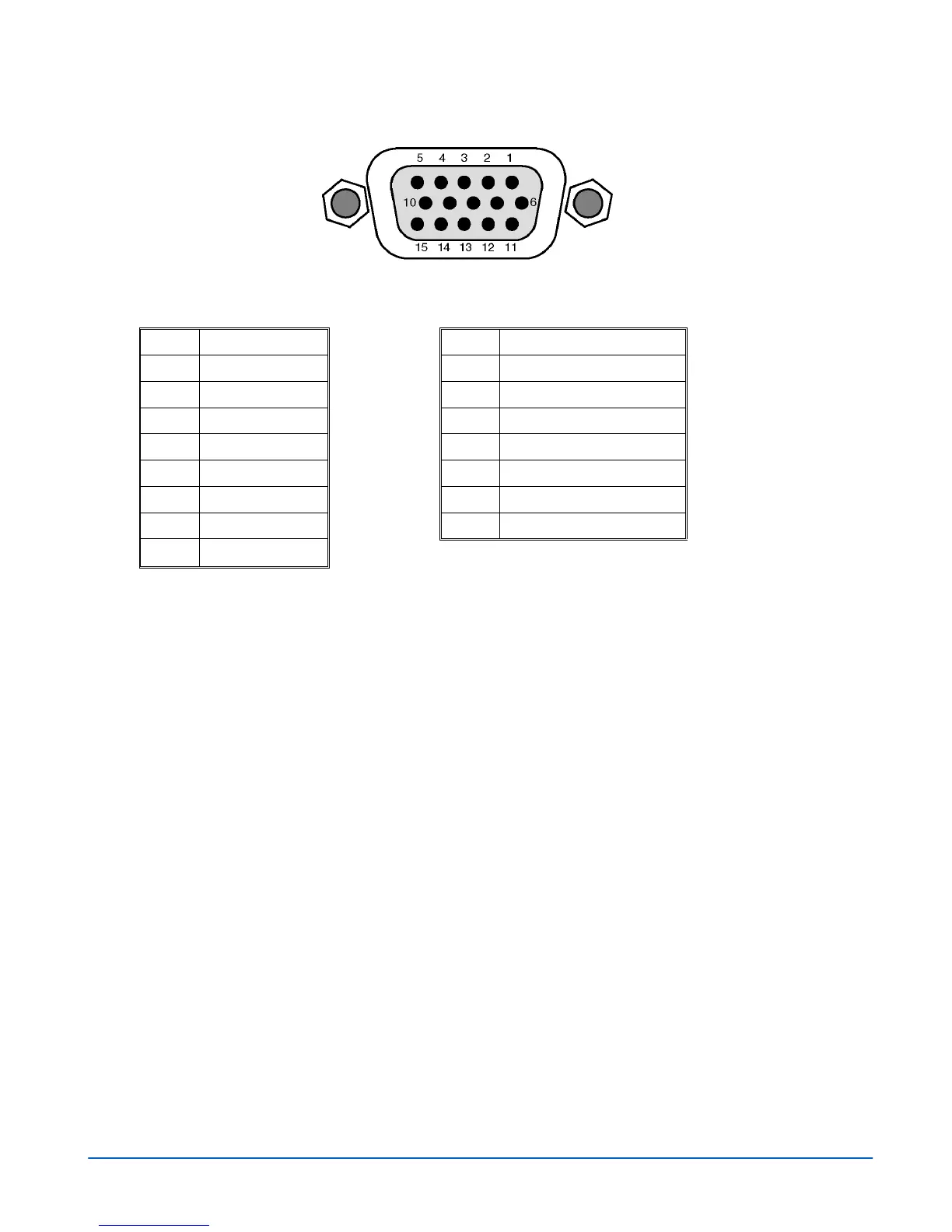

Figure B-2. XGA OUT 15-pin, Female, D-sub Connector
Table B-2. XGA OUT Connector Pinouts
Pinout Signal Pinout Signal
1
XGA red output
9
N.C.
2
XGA green output
10
GND
3
XGA blue output
11
N.C.
4
N.C.
12
N.C./SDA
5
GND
13
XGA horizontal sync output
6
GND
14
XGA vertical sync output
7
GND
15
N.C./SCL
8
GND
