Videotek VTM-2000 - GPI;Tally Connector Pinouts

Pinouts
VTM-2000 Installation and Operation Handbook
B-3

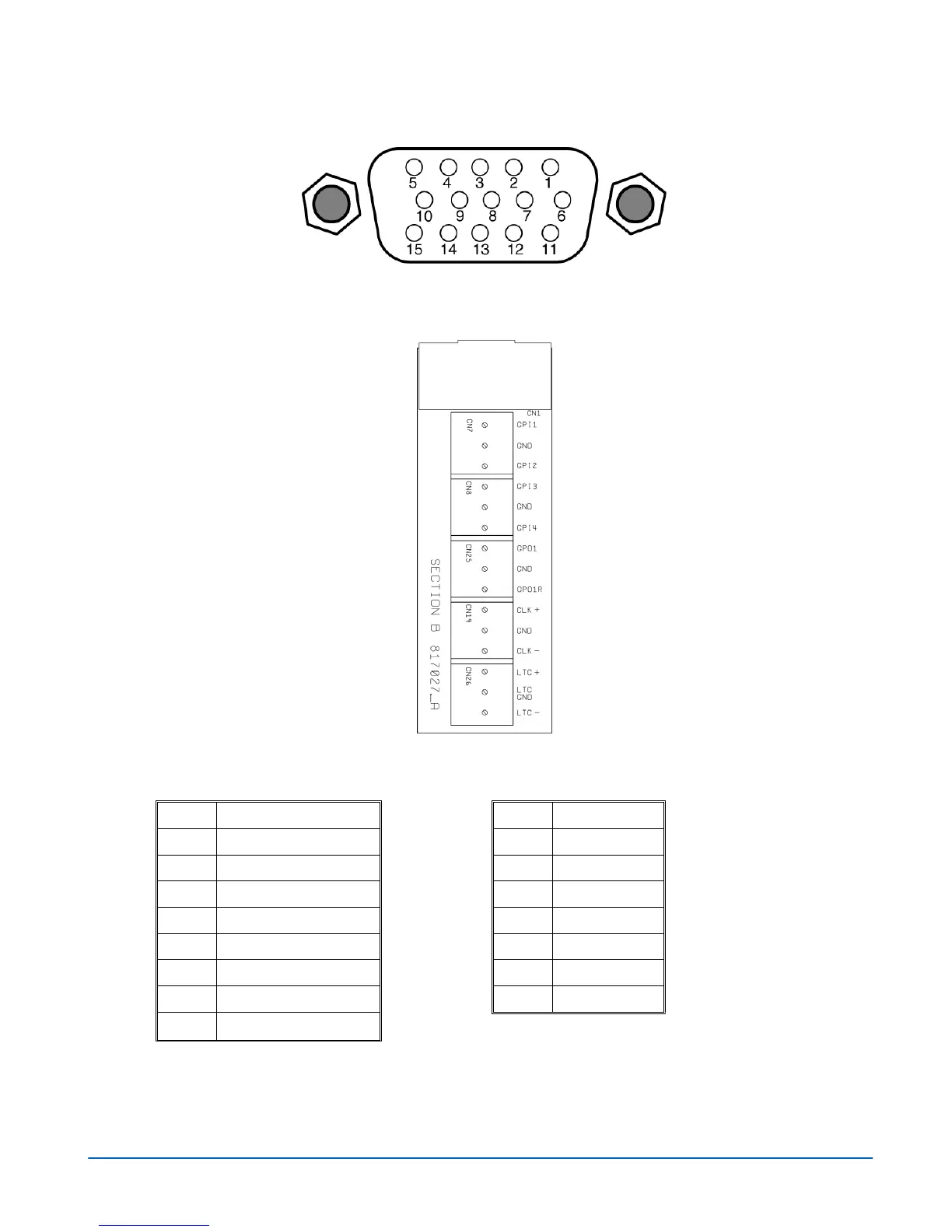

Figure B-3. GPI/TALLY Connector
Figure B-4. GPI/TALLY Breakout Board
Table B-3. Pinouts for GPI/TALLY Connector and GPI/TALLY Breakout Board
Pinout Signal Pinout Signal
1
ERROR SUM
9
LTC GND
2
Select input A
10
LTC+
3
Select input B
11
LTC-
4
Select input C
12
CLK+ (Clock +)
5
Select input D
13
CLK GND
6
ERROR SUM RETURN
14
CLK -
7
GND
15
GND
8
GND
