VIPA CPU Series User Manual

Chapter 4 Configuration with Siemens TIA Portal Manual VIPA System 200V
4-6 HB97E - CPU - RE_21x-1Bx06 - Rev. 13/20
To be compatible with the Siemens TIA Portal the VIPA CPU is to be
configured as CPU 315-2DP (6ES7 315-2AG10-0AB0 V2.6) from Siemens.
The evolvement of the CPU 21x takes place as a virtual PROFIBUS master
system with the following proceeding:
• Start the Siemens TIA Portal.
• Create a new project in the Portal view with Create new project.
• Change to the Project view.
• Click in the Project tree at Add new device.
• Select the following CPU in the input dialog:
SIMATIC S7-300 > CPU 315-2DP > 6ES7 315-2AG10-0AB0 V2.6.

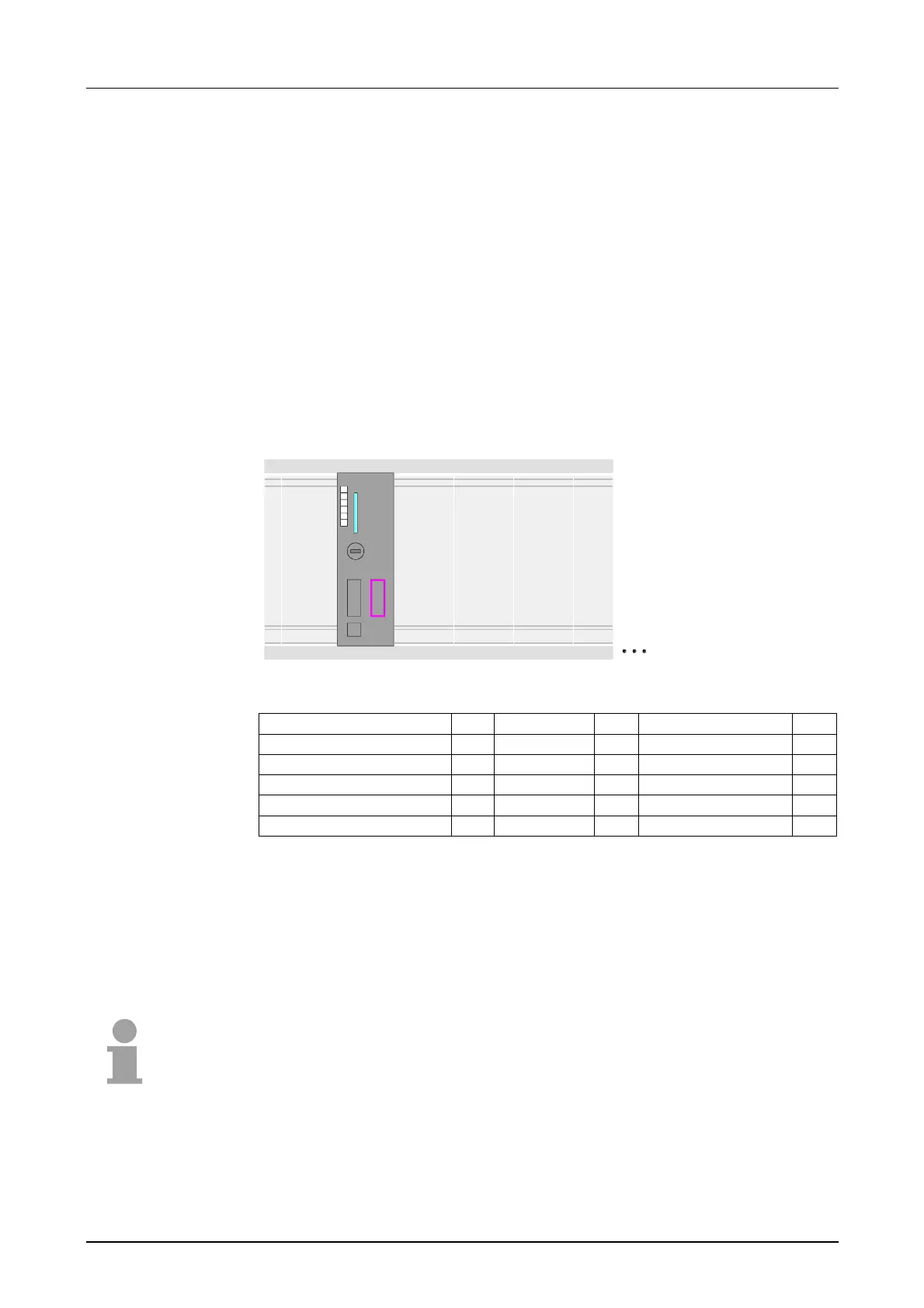

Then the CPU is inserted with a profile rail.
Project area:
1 2 4567
Device overview:
Module ... Slot ... Type ...
PLC... 2 CPU 315-2DP
MPI interface... 2 0 MPI interface..
DP interface... 2 X2 DP interface...
...
Since the CPU from VIPA is configured as Siemens CPU, so the
parameterization takes place via the Siemens CPU.
For parameterization click in the Project area respectively in the Device
overview at the CPU part. Then the parameters of the CPU part are shown
in the Properties dialog. Here you can make your parameter settings.
Note!
The parameters are described in chapter "Deployment CPU..." at "CPU
parameterization".
Proceeding
Parameterization

VIPA CPU Series Specifications

General

Series	VIPA CPU Series
Communication Ports	Ethernet
Power Supply	24 V DC
Operating Temperature	0°C to +60°C
Certifications	CE, UL, cUL
