Vogelsang VX100Q - Unpressurised Quenching Fluid Tank

Rotary lobe pump
Operating instructions
VX100Q/VX136Q/VX186Q, VX136QD/VX186QD, VX136QDM2/VX186QDM2
28/61
Pos: 141 /WBV/P umpen/Wartung/ Sperrkamm er/002 Sperrka mmeraufbau - Pumpe mit druc klosem Quenc hflüssigkeitsbeh älter @ 59\m od_131357092384 0_48.doc @ 31 0762 @ 4 @ 1
7.1.3.2 Unpressurised quenching fluid tank

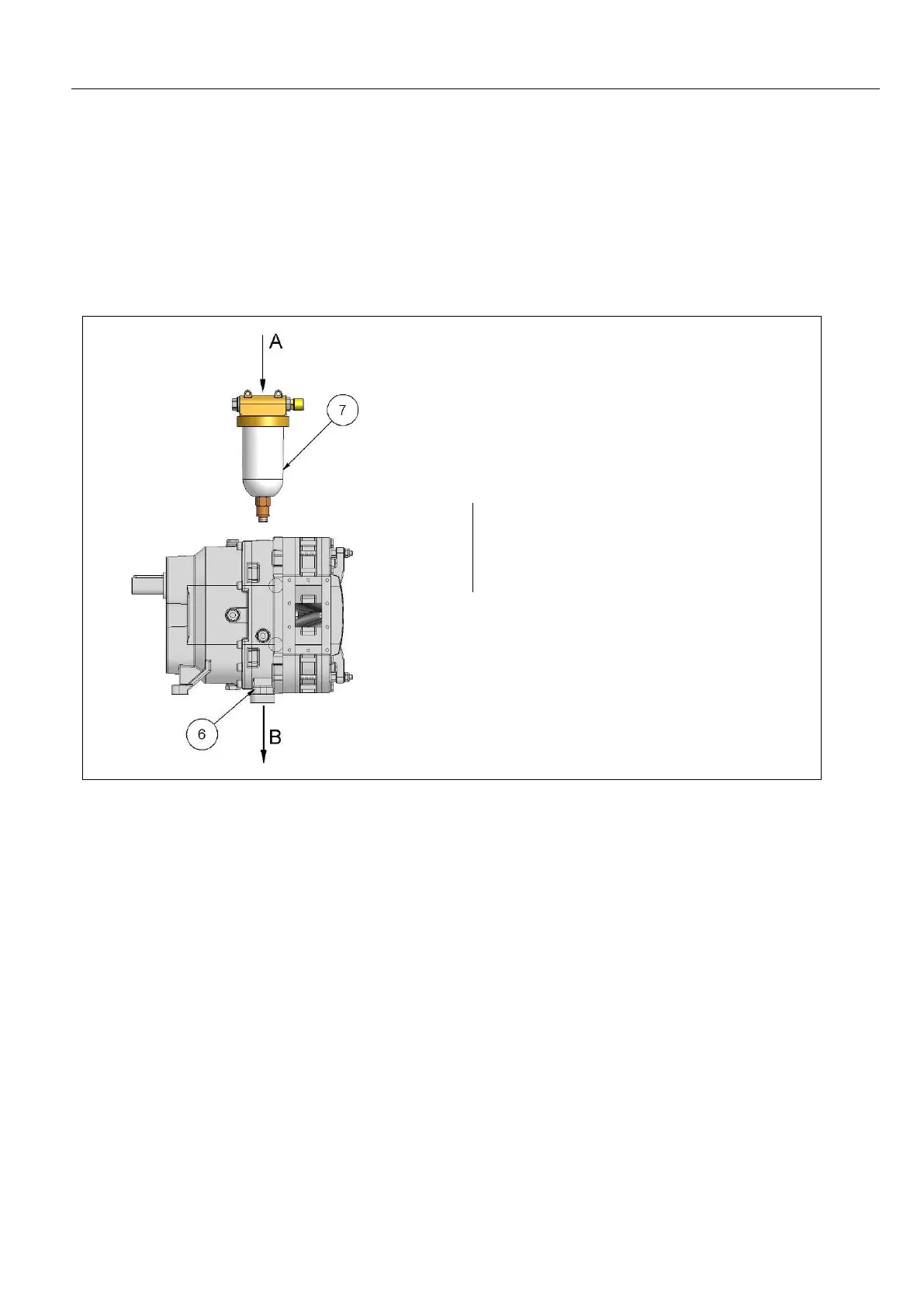

 Fig. "Pump with quenching fluid tank, without pressure valve"
• The quenching fluid tank must always be a quarter full with quenching fluid to allow for thermal
expansion.
Note that the level of quenching fluid in the tank can vary due to operational heating of the pump.
• Unscrew the upper housing of the quenching fluid tank to top up the tank (hold the union nut tight so
that the lower screw connection does not come loose).
• After that fill shortages of quantities into the quenching fluid tank.
Pos: 142 /Grafi ken/Pumpen/ WBV/Wartung/Sp errkammer/TU98 064 - Pump e mit Quenchflüssi gkeitsbehält er, ohne Druckh alteventil @ 59\ mod_1313745 658962_48.doc @ 311883 @ @ 1
6
Hex head screw plug
(installation tightening torque: 60 Nm)
7
Quenching fluid tank
A
Fill
B
Emptying
Fig.
13
: Pump with quenching fluid tank, without pressure valve
