5.2 Assembly of pump and motor on base
Pos: 84 /WBV/Pu mpen/Montage/ 002 Montage vo n Pumpe un d Motor auf Konsol e @ 59\m od_1313744847 509_48.doc @ 311823 @ @ 1
Noise and vibration hazard
Wear
Noise, vibrations and oscillations can cause impairment of communication and discomfort.
To avoid wear, vibration and generation of noise:
• The base for the pump and motor must not be distorted during installation.
• The alignment of the coupling The alignment of the coupling must be checked and, if
necessary, corrected before start-up,  Fig. “Alignment methods”.
Pos: 85 /WBV/Pu mpen/Montage/ 002 Wartungs hinweis Schra uben nachziehen a uf Konsole @ 2 0\mod_1 19807247954 3_48.doc @ 78495 @ @ 1
Retighten all motor and pump mounting screws on the base after 20 operating hours.
Pos: 86 /Grafiken /Pumpen/WBV/M ontage/Ausric htmethoden - Kupplungen @ 20\mod_11 97033538329_4 8.doc @ 73838 @ @ 1

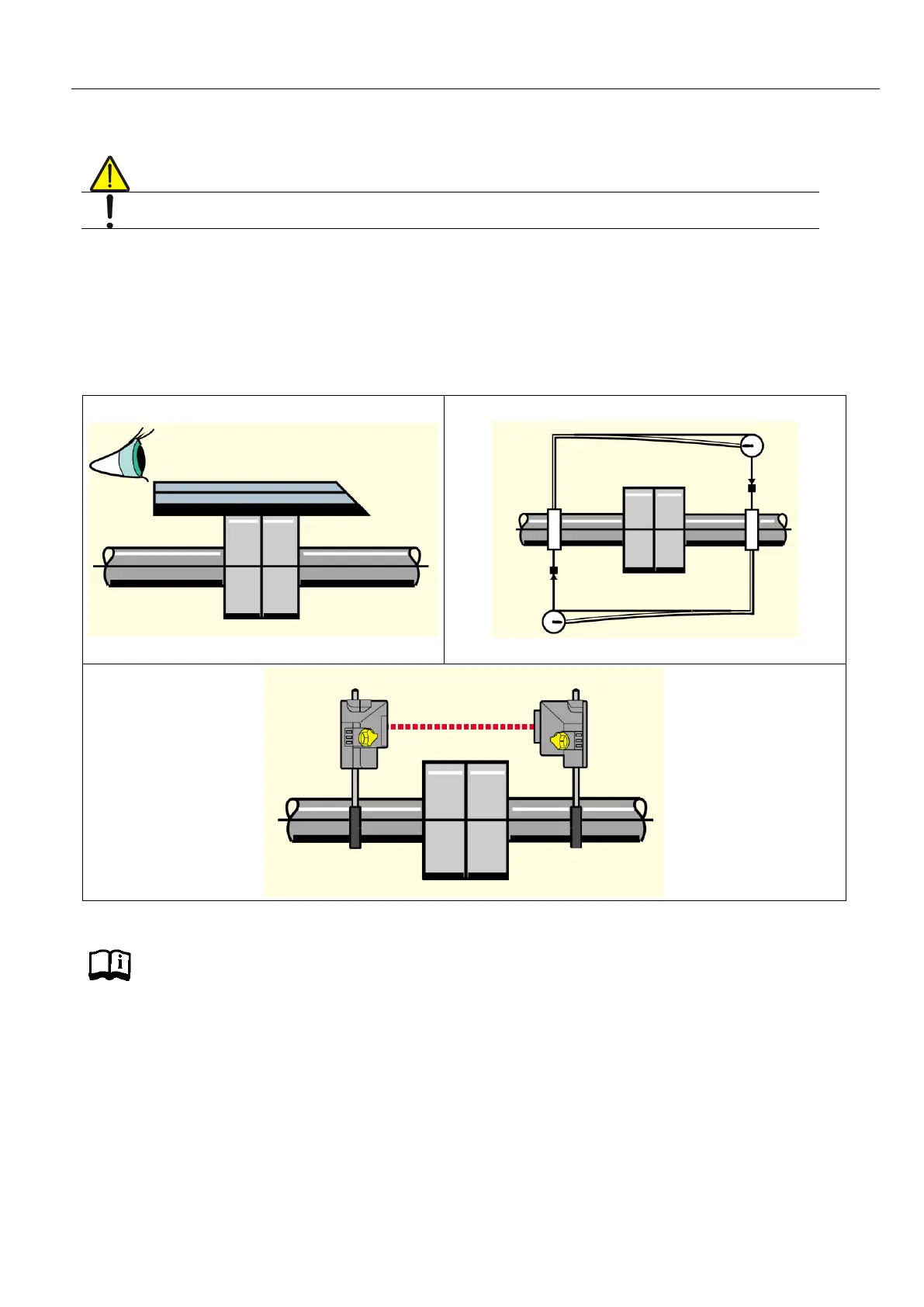

Fig.
8
: Alignment methods
Pos: 87 /WBV/Pu mpen/Montage/ 002 Riemensp annung prüfen @ 58\mod_13 12278781396_ 48.doc @ 307 922 @ @ 1
“Technical Information TINF.PU.020.xx, accompanying sheet for belt drives"
For pumps with belt drive check the belt tension acc. to the accompanying sheet:
• At start up
• before and after longer out-of-service periods
• After the first 10 operating hours
• every 2000 operating hours, once per year minimum
 Chap. “Maintenance plan"
