Vogelsang VX100Q - Page 34

Rotary lobe pump
Operating instructions
VX100Q/VX136Q/VX186Q, VX136QD/VX186QD, VX136QDM2/VX186QDM2
34/61
Pos: 171 /Grafi ken/Pumpen/ WBV/Wartung/Getrie be/VX Getrie beölwechsel @ 58\mod_13 12544053777_4 8.doc @ 30881 6 @ @ 1
VX100:
Horizontal installation
Vertical installation
VX100 with flange-mounted electric motor: Vertical installation
VX136/VX186:
Horizontal installation
Vertical installation

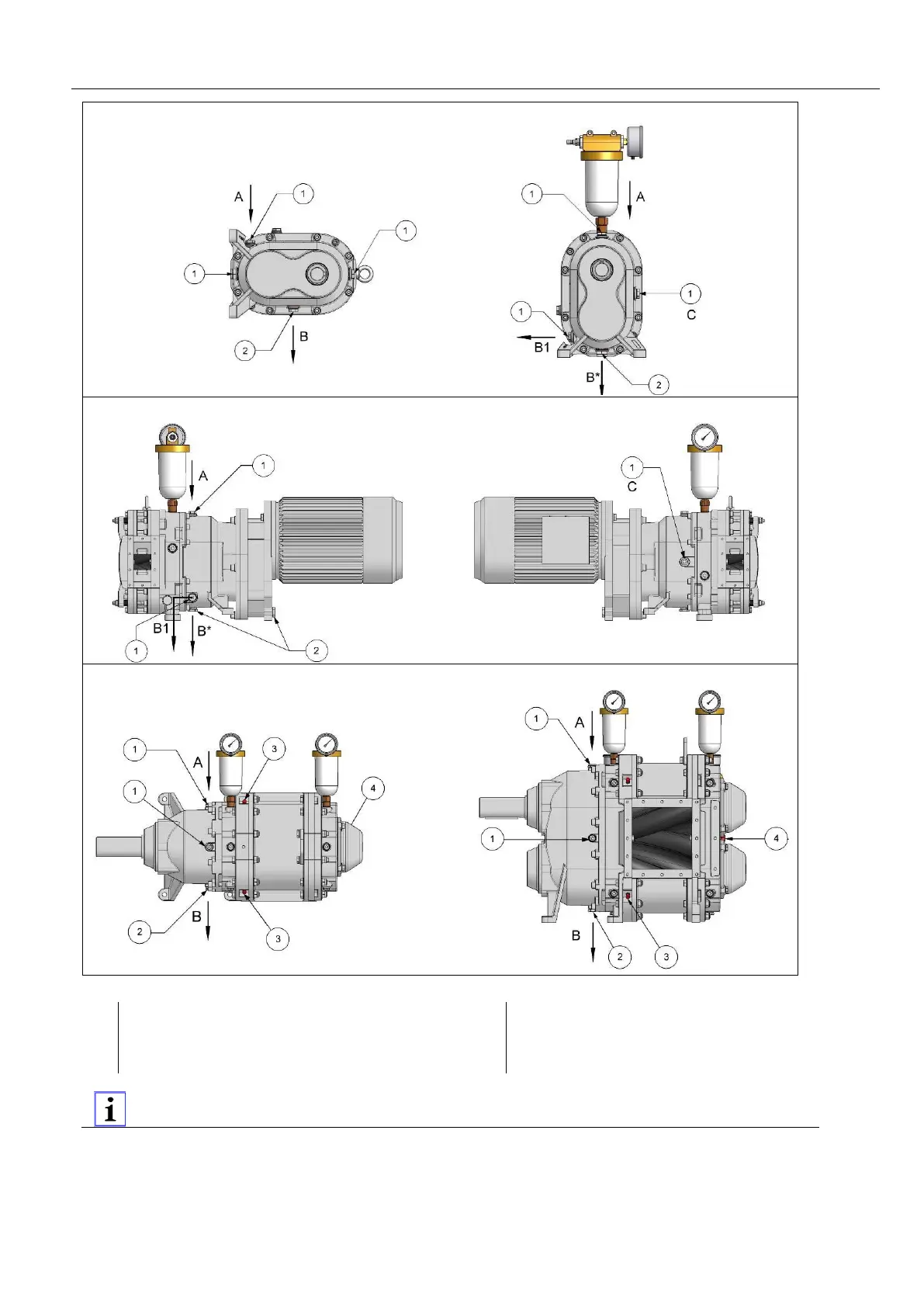

Fig.
17
: Changing gearbox oil
1
Hex head screw plug
A
Fill
2
Magnetic hex head screw plug
B
Drain
3
Grease nipple (gearbox side)
B*
alternatively empty via B1
4
Grease nipple (at the VX186 QD cover)
C
Check
• Hex head screw plug 1 must always be on top of the pump, magnetic hex head screw plug 2 on the
bottom of the pump.
• Tightening torque for mounting the hex head screw plugs  60 Nm
