Vogelsang VX100Q - Page 47

Rotary lobe pump
Operating instructions
VX100Q/VX136Q/VX186Q, VX136QD/VX186QD, VX136QDM2/VX186QDM2
47/61
Pos: 235 /Gra fiken/QuickMi x/WBV/Instan dsetzung/Cartridge- Gleitringdich tungswechsel/C artridge-Gleitri ngdichtung D emontage am Ge triebe Pumpe/ QuickMi x @ 59\mod_13135 83552206_48.d oc @ 310910 @ @ 1
a)
b)
a
Hex socket set screw
x
Hexagonal socket screw
t
Hex head screw
30
O-ring (bearing seal housing)
34
O-ring (seal carrier)
D
Installation tool
c)

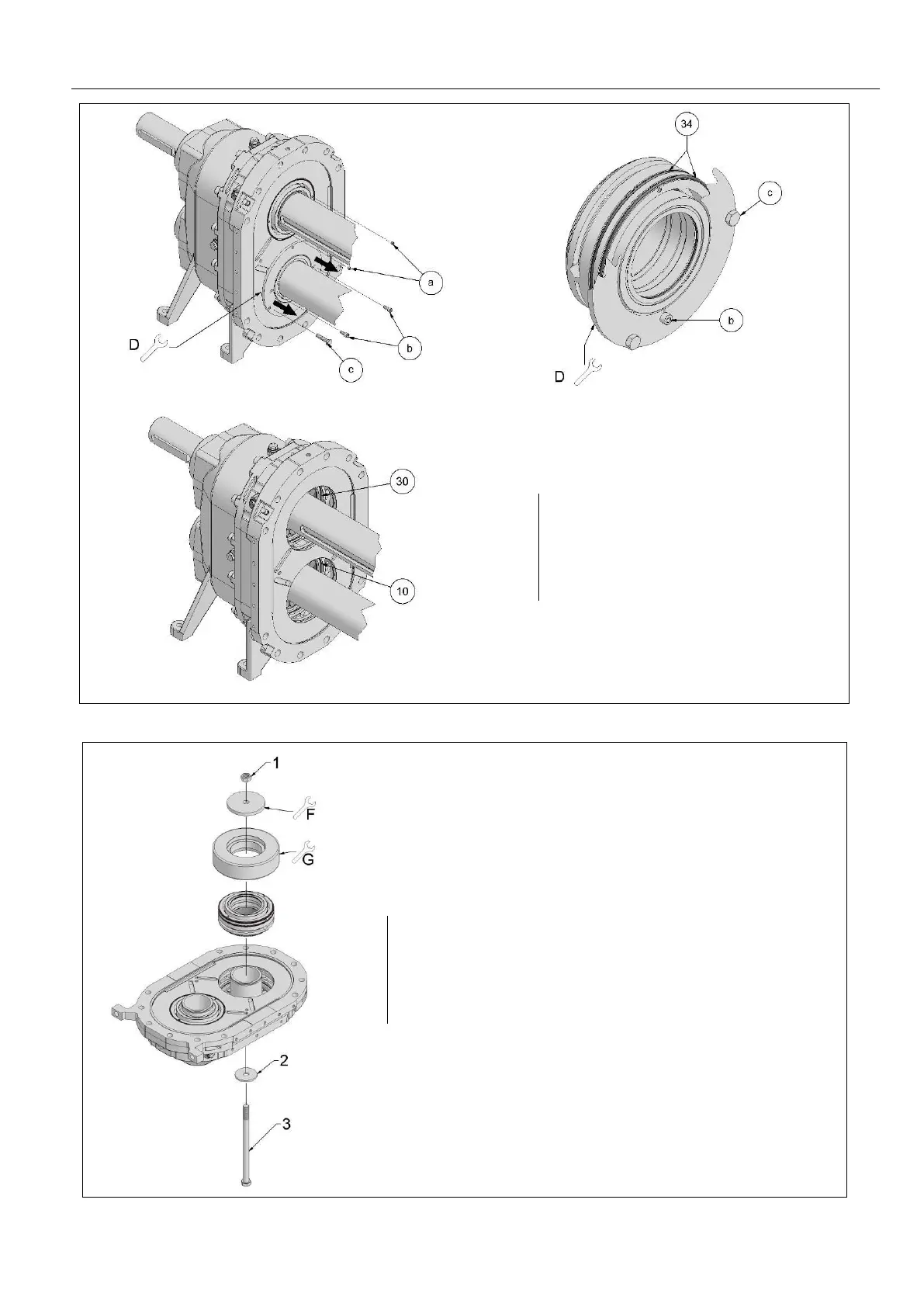

Fig.
26
: Cartridge mechanical seal on the gearbox
Pos: 236 /Grafi ken/QuickMi x/WBV/Instandsetzung/C artridge- Gleitringdichtung swechsel/Cartri dge-Gleitri ngdichtungswechsel am QD-Dec kel Pumpe/Quic kMix @ 59\m od_1313583614 847_48.doc @ 310940 @ @ 1
1
Hex nut
Complete set
2
Washer
Part number:
3
Hex head screw
WKZ0172 (VX136)
F
Tool WKZ0119
PBA0009 (VX186)
G
Tool WKZ0171 (VX136)
Tool WKZ0098 (VX186)
Fig.
27
: Cartridge mechanical seal on the QD cover
