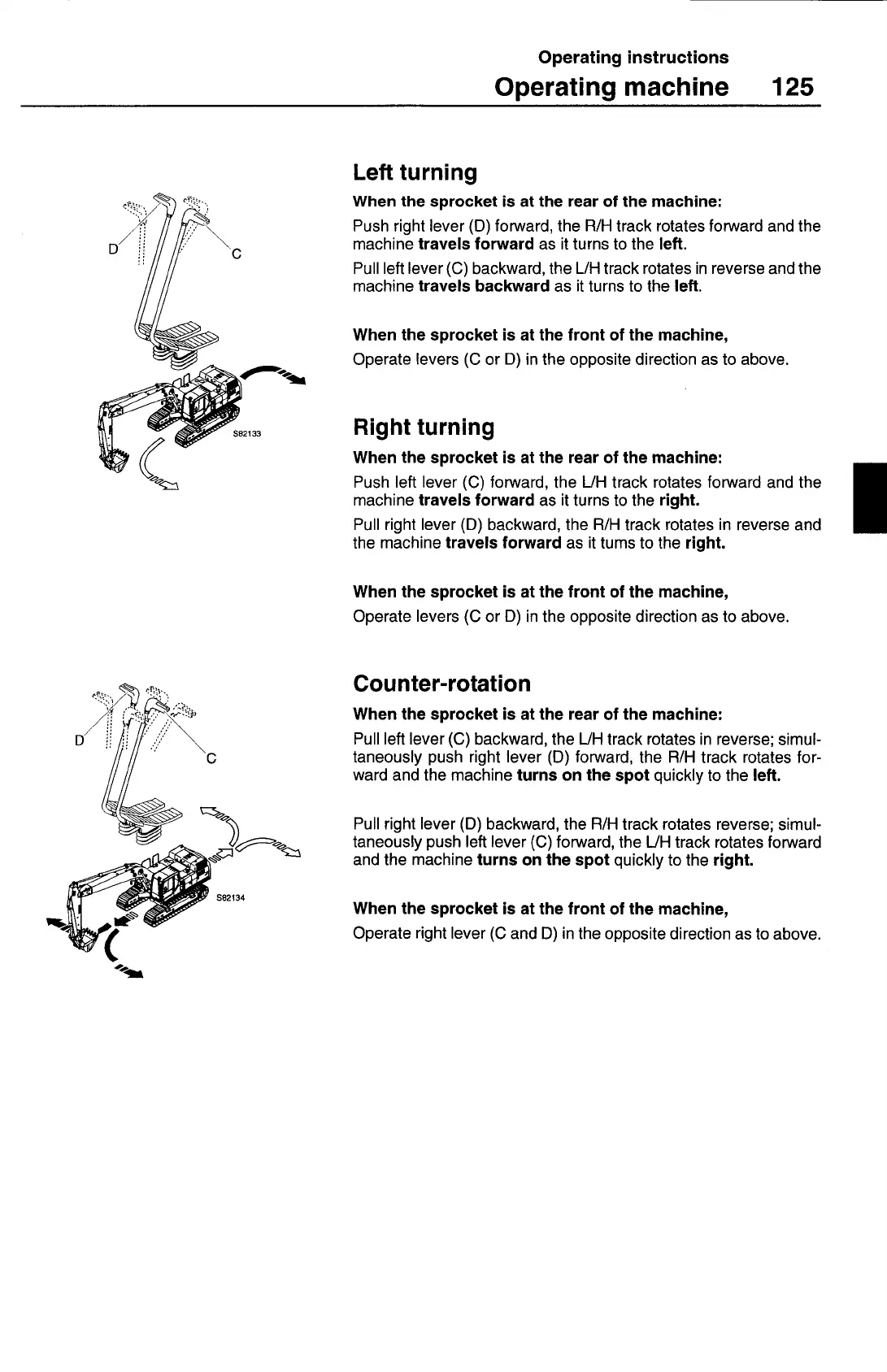

Operating instructions
Operating machine 125
Left turning
When the sprocket is at the rear of the machine;
Push right lever (D) forward, the R/H track rotates forward and the
machine
travels forward
as it turns to the
left.
Pull left lever (C) backward, the L/H track rotates in reverse and the
machine
travels backward
as it turns to the
left.
When the sprocket is at the front of the machine,
Operate levers (C or D) in the opposite direction as to above.
Right turning
When the sprocket is at the rear of the machine:
Push left lever (C) forward, the L/H track rotates forward and the
machine
travels forward
as it turns to the
right.
Pull right lever (D) backward, the R/H track rotates in reverse and
the machine
travels forward
as it tums to the
right.
When the sprocket is at the front of the machine,
Operate levers (C or D) in the opposite direction as to above.
Counter-rotation
When the sprocket is at the rear of the machine:
Pull left lever (C) backward, the LIH track rotates in reverse; simul-
taneously push right lever (D) forward, the R/H track rotates for-
ward and the machine
turns on the spot
quickly to the
left.
Pull right lever (D) backward, the R/H track rotates reverse; simul-
taneously push left lever (C) forward, the L/H track rotates forward
and the machine
turns on the spot
quickly to the
right.
When the sprocket is at the front of the machine,
Operate right lever (C and D) in the opposite direction as to above.
