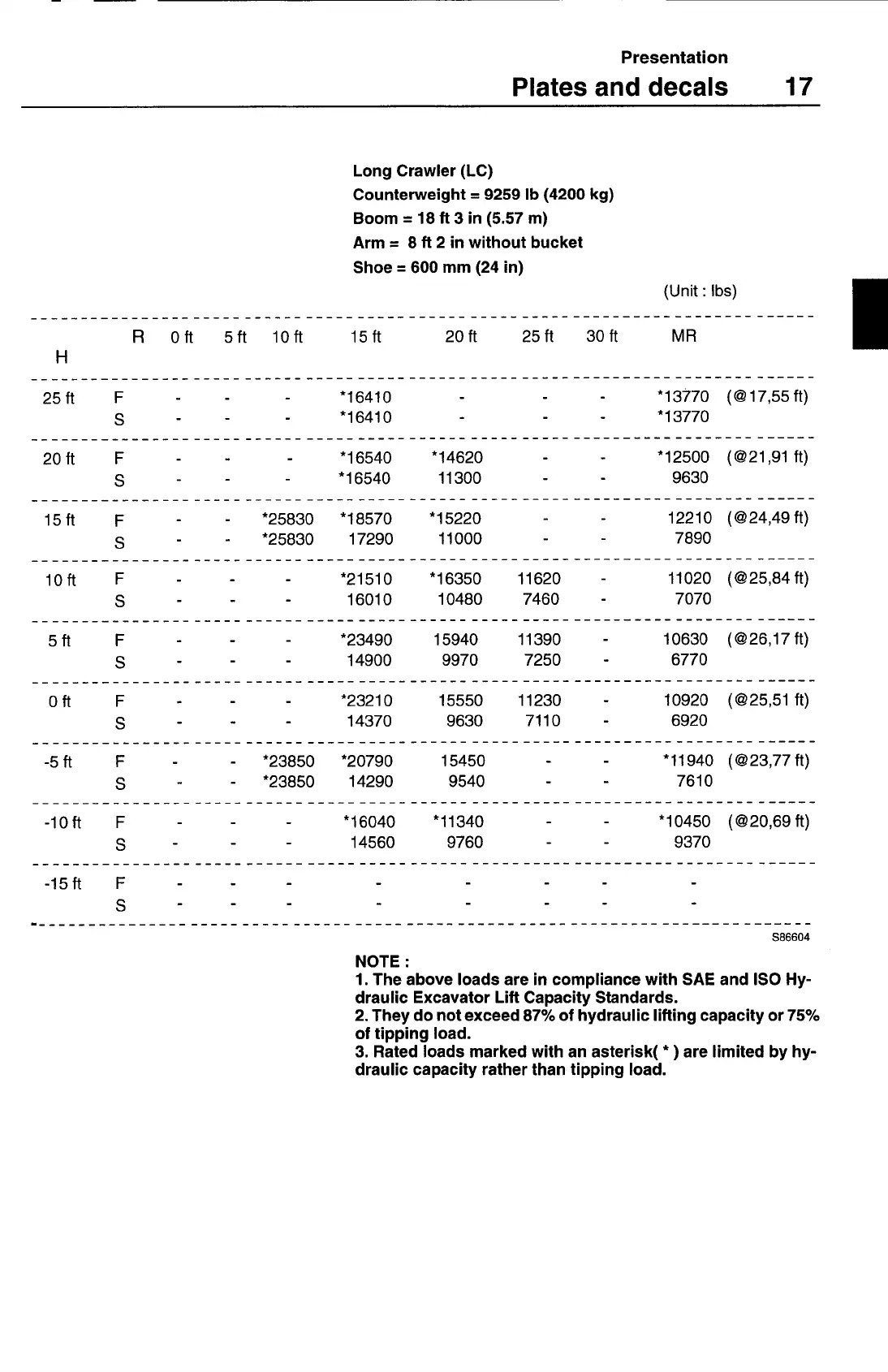

Long Crawler (LC)
Counterweight = 9259 lb (4200 kg)
Boom =
18 ft 3 in (5.57 m)
Arm =
8 ft 2 in without bucket
Shoe = 600 mm (24 in)
(Unit: Ibs)
R Oft 51t lOft 15ft
20ft 251t 30ft
MR
H
25ft
F
*16410
*13770 (@17,55ft)
S
*16410
*13770
20ft
F
- *16540
*14620
*12500 (@21,91 ft)
S
*16540
11300
9630
l5ft
F
*25830
*18570
*15220
12210 (@24,49 it)
S
*25830 17290 11000
7890
lOft
F
*21510
*16350
11620
11020 (@25,84 if)
S
16010
10480 7460
7070
5ft
F
*23490
15940 11390
10630 (@26,17ft)
S
14900
9970 7250
6770
Oft
F
*23210
15550 11230
10920 (@25,51 ft)
S
14370 9630
7110
6920
-Sit
F
*23850 *20790
15450
*11940 (@23,77ft)
S
*23850 14290 9540 7610
-loft F
*16040 *11340
*10450 (@20,69ft)
S
14560 9760
9370
-151t
F
S
S86604
NOTE:
1. The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2. They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3. Rated loads marked with an asterisk(
*)
are limited by hy-
draulic capacity rather than tipping load.
