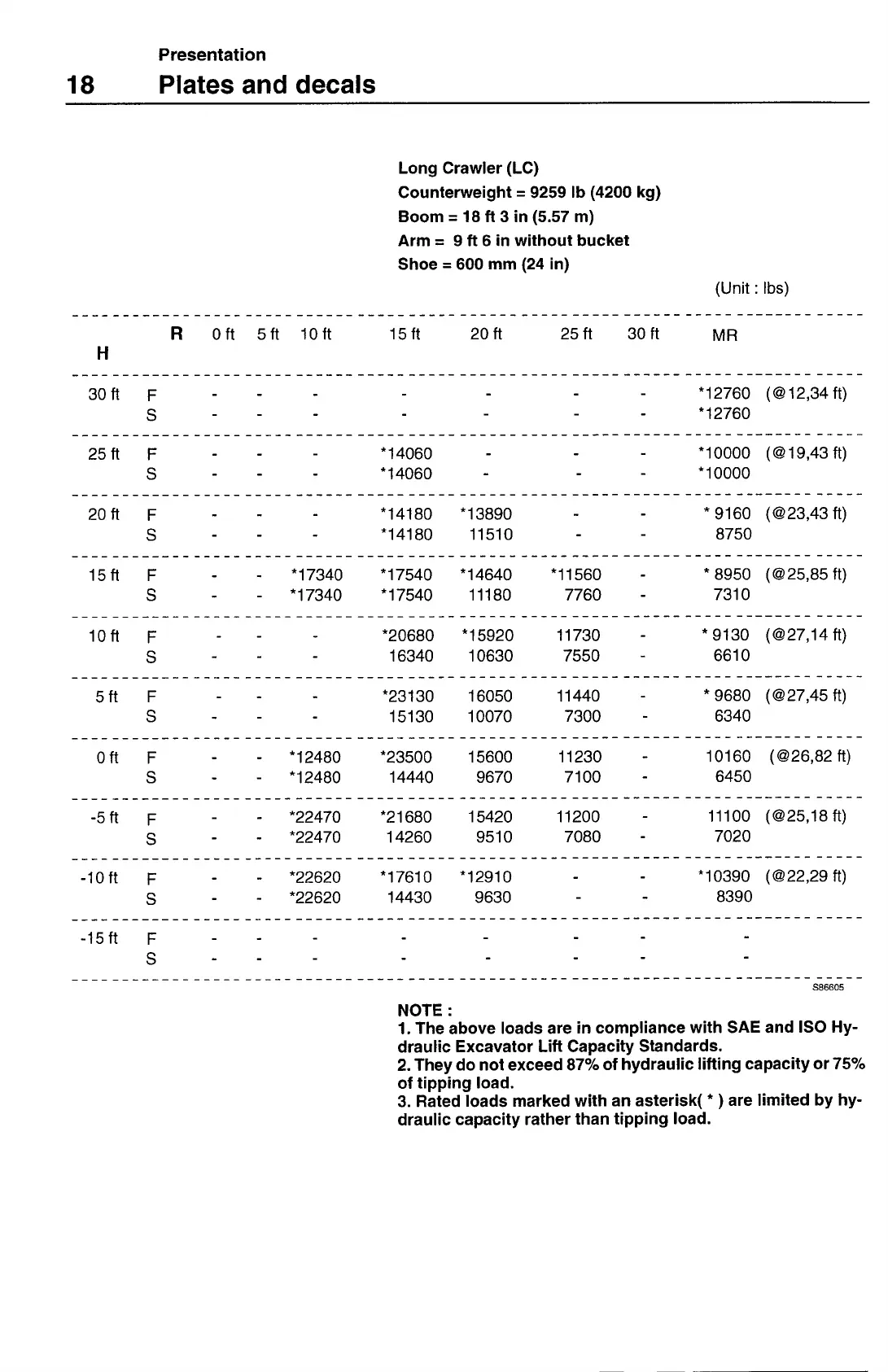

Presentation
18
Plates and decals
Long Crawler (LC)
Counterweight
=
9259 lb (4200 kg)
Boom = 18 ft 3 in (5.57 m)
Arm = 9 ft 6 in without bucket
Shoe = 600 mm (24 in)
(Unit: tbs)
R Oft 5ft lOft
l5ft
2Oft
25ft 30ft
MR
H
30ft F
*12760 (@12,34ft)
S
* 12760
25ft F
*14060
*10000 (@19,43ft)
S
*14060
*10000
20ft F
*14180 *13890
*9160 (@23,43ft)
S
*14180
11510
8750
15ft F
*17340
*17540 *14640
*11560
*8950 (@25,85ft)
S
*17340 *17540
11180
7760
7310
lOft
F
*20680
*15920
11730
* 9130 (@27,14ft)
S
16340 10630 7550
6610
5ft
F
*23130
16050
11440
* 9680 (@27,45ft)
S
15130 10070 7300
6340
Oft F
*12480 *23500 15600
11230
10160 (@26,82ft)
S
*12480
14440
9670
7100
6450
-5ft F
*22470
*21680
15420
11200
-
11100 (@25,18ft)
S
*22470
14260
9510
7080
7020
-lOft F
*22620
*17610 *12910
*10390 (@22,29ft)
S
*22620
14430
9630
8390
-l5ft
F
S
886605
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87%
of
hydraulic lifting capacity or 75%
of
tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
