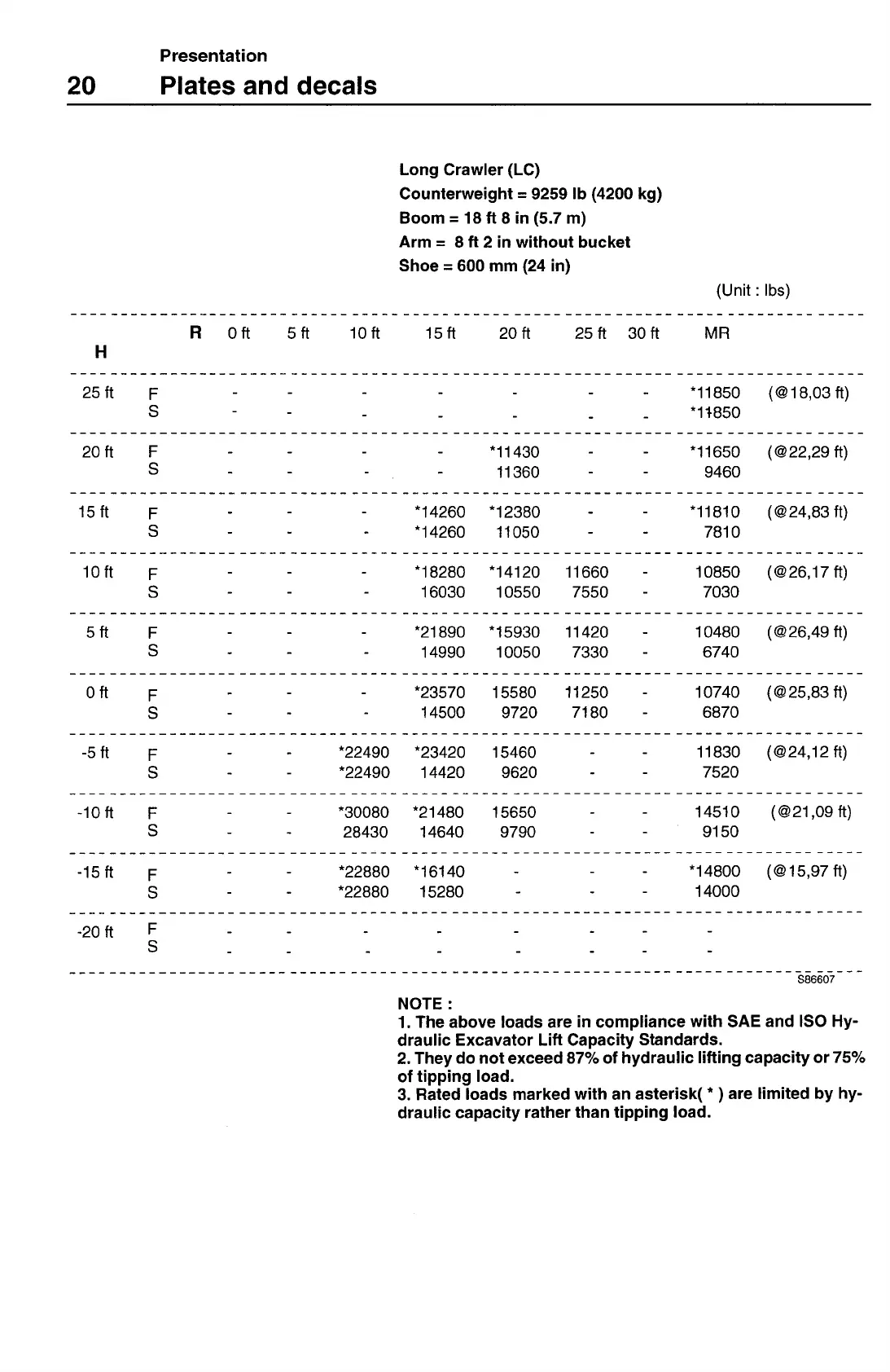

Presentation
20 Plates and decals
Long Crawler (LC)
Counterweight = 9259 lb (4200 kg)
Boom = 18 ft 8 in (5.7 m)
Arm = 8 ft 2 in without bucket
Shoe = 600 mm (24 in)
(Unit: Ibs)
R Oft 5ft lOft 15ft 20ft 25ft 30ft MR
H
25ft F
*11850 (@18,03ft)
S
*185O
2Oft F
*11430
*11650 (@22,29ft)
S
11360
9460
15ft F
*14260 *12380
*11810 (@24,83ft)
S
*14260 11050
7810
lOft F
*18280 *14120 11660
10850 (@26,17ft)
S
16030 10550 7550 7030
5ft F
*21890 *15930 11420
10480 (@26,49ft)
S
14990 10050 7330 6740
Oft F
*23570 15580 11250 10740 (@25,83ft)
S
14500 9720 7180
6870
-5
ft
F
*22490 *23420
15460
11830 (@24,12 It)
S
*22490 14420 9620
7520
-lOft F
*30080 *21480 15650
14510 (@21,09ft)
S
28430 14640 9790
9150
-15ft F
*22880 *16140
*14800 (@15,97ft)
S
*22880 15280
14000
-20 ft
F
S
S86607
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
