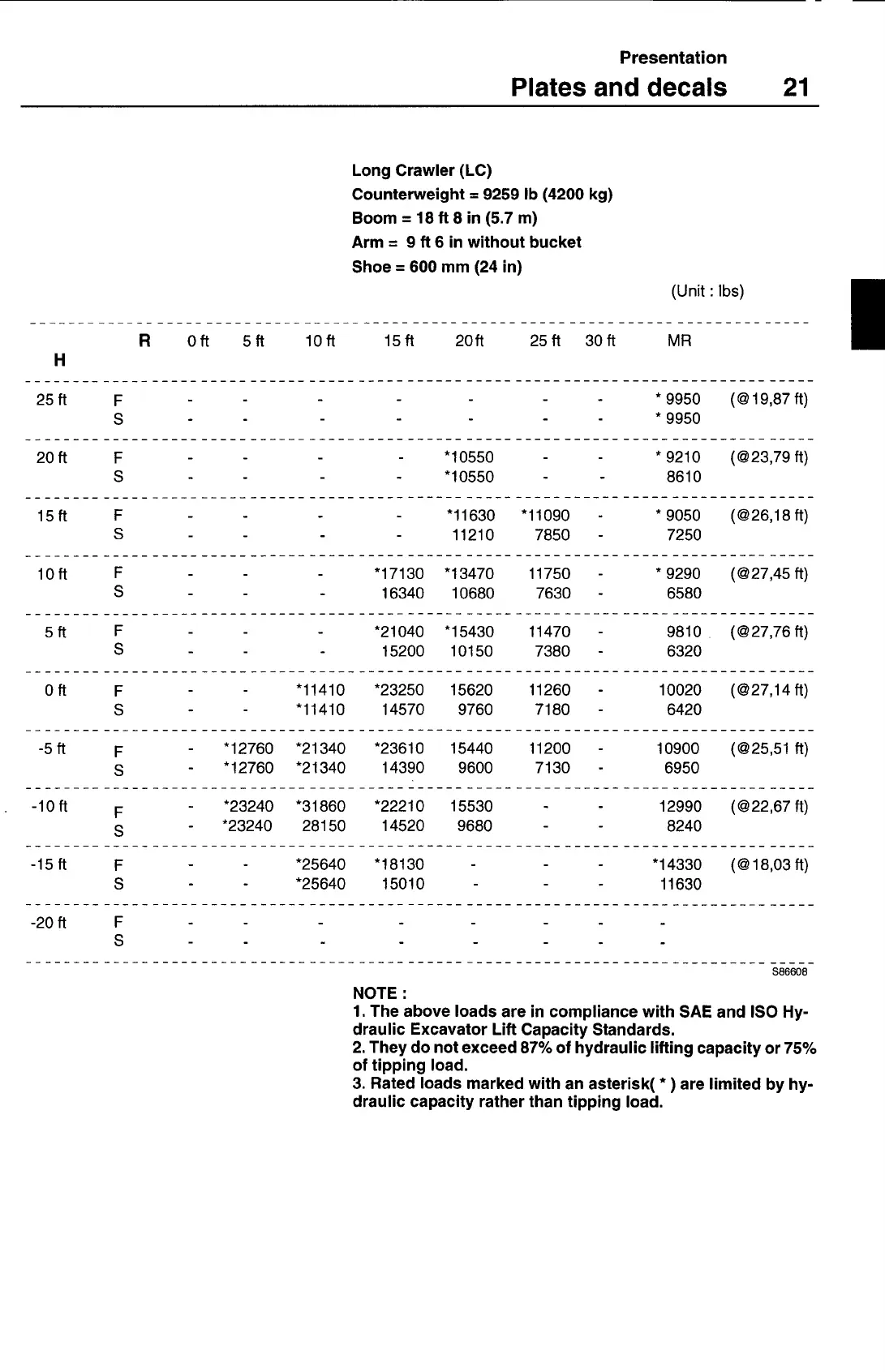

Presentation
Plates and decals
21
Long Crawler (LC)
Counterweight = 9259 lb (4200 kg)
Boom
=
18 ft 8 in (5.7 m)
Arm
=
9 ft 6 in without bucket
Shoe = 600 mm (24 in)
(Unit : Ibs)
A Oft 5ft lOft l5ft 20ft 25ft 30ft
MR
H
25 ft
F
* 9950
(@19,87 ft)
S
*9950
20ft F
*10550
*9210 (@23,79ft)
S
*10550
8610
15ft F
*11630 *11090 - *9050 (@26,l8ft)
S
11210 7850 -
7250
lOft
F
*17130 *13470 11750 -
*9290 (@27,45ft)
S
16340 10680 7630 -
6580
5ft
F
*21040 *15430 11470
9810 (@27,76ft)
S
15200 10150 7380
6320
Oft F
*11410 *23250 15620 11260 -
10020 (@27,l4ft)
S
*11410 14570 9760 7180 -
6420
-5 ft
F
*12760 *21340
*23610
15440
11200
-
10900
(@25,51 ft)
S
*12760 *21340 14390 9600 7130 -
6950
*23240 *31860 *22210 15530
12990 (@22,67ft)
*23240 28150 14520 9680
8240
-loft
F
S
-15ft F
*25640 *18130
*14330 (@18,03ft)
S
*25640
15010
11630
-20ft
F
S
S86608
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
