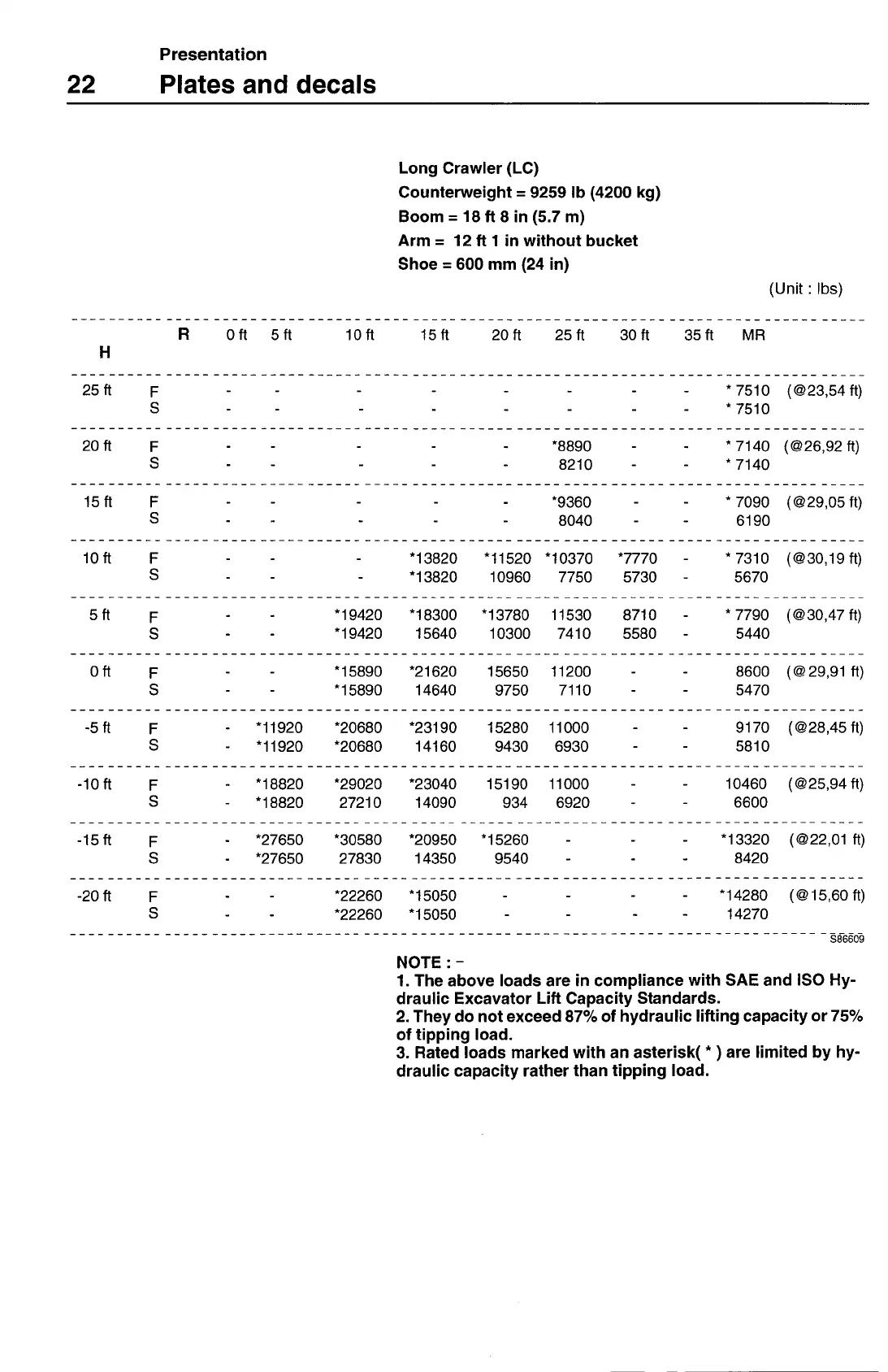

Presentation
22
Plates and decals
Long Crawler (LC)
Counterweight = 9259 lb (4200 kg)
Boom
= 18
ft 8
in (5.7
m)
Arm = 12 ft 1 in without bucket
Shoe = 600 mm (24 in)
(Unit: Ibs)
R Oft 5ft
lOft 15ft 201t 25ft 30ft 35ft MR
H
25ft
F
*7510 (@23,54ft)
S
*7510
2Oft
F
*8890
*7140 (@26,92ft)
S
8210
* 7140
15ft
F
*9360
*7090 (@29,05ft)
S
8040
6190
lOft
F
*13820 *11520 *10370 *7770 -
*7310 (@30,l9ft)
S
*13820 10960 7750 5730 - 5670
5ft
F
*19420 *18300 *13780 11530 8710 -
*7790 (@30,47ft)
S
*19420 15640 10300 7410 5580 - 5440
Oft
F
*15890 *21620 15650 11200
8600 (@29,9lft)
S
*15890 14640 9750 7110
5470
-5ft F
*11920 *20680 *23190 15280 11000
9170 (@28,45ft)
S
*11920 *20680 14160 9430 6930
5810
-loft F
*18820 *29020 *23040 15190 11000
10460 (@25,94ft)
S
*18820 27210 14090 934 6920
6600
-15ft
F
*27650 *30580 *20950
*15260
*13320 (@22,01 ft)
S
*27650 27830 14350 9540
8420
-2Oft F
*22260 *15050
*14280 (@15,60ft)
S
*22260 *15050
14270
S86609
NOTE :
-
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
