H
R Oft 5ft lOft 15ft 20ft 25ft 30ff MR
(Unit: Ibs)

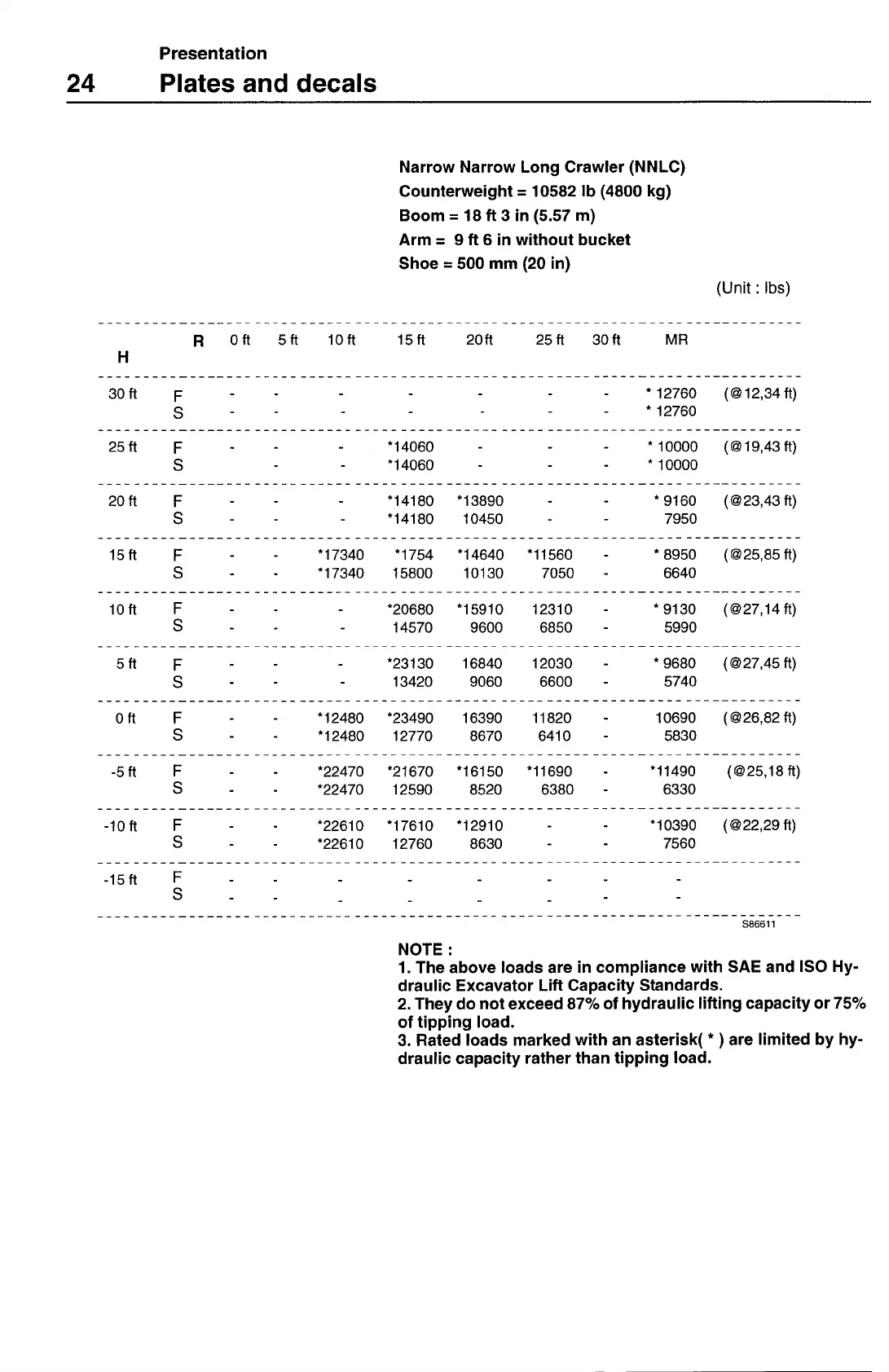

Presentation
24
Plates and decals
Narrow Narrow Long Crawler (NNLC)
Counterweight = 10582 lb (4800 kg)
Boom = 18 ft 3 in (5.57 m)
Arm = 9 ft 6 in without bucket
Shoe = 500 mm (20 in)
30ff
F
* 12760
(@12,34ft)
S
* 12760
25ft
F
*14060
* 10000
(@19,43ft)
S
*14060
* 10000
20ff F
*14180 *13890
*9160 (@23,43ft)
S
*14180 10450
7950
15ff F
*17340 *1754 *14640 *11560
*8950 (@25,85ft)
5
*17340 15800 10130 7050
6640
lOft F
*20680 *15910 12310
*9130 (@27,l4ft)
S
14570
9600
6850
5990
5ft
F
*23130
16840
12030
* 9680
(@27,45ft)
S
13420
9060
6600
5740
Oft F
*12480 *23490 16390 11820
10690 (@26,82ft)
S
*12480 12770 8670 6410
5830
-5ft F
*22470 *21670 *16150 *11690
*11490 (@25,18ft)
S
*22470 12590 8520 6380
6330
-loft F
*22610 *17610 *12910
*10390 (@22,29ft)
S
*22610 12760 8630
7560
S8661 1
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
-15ff
F
S
