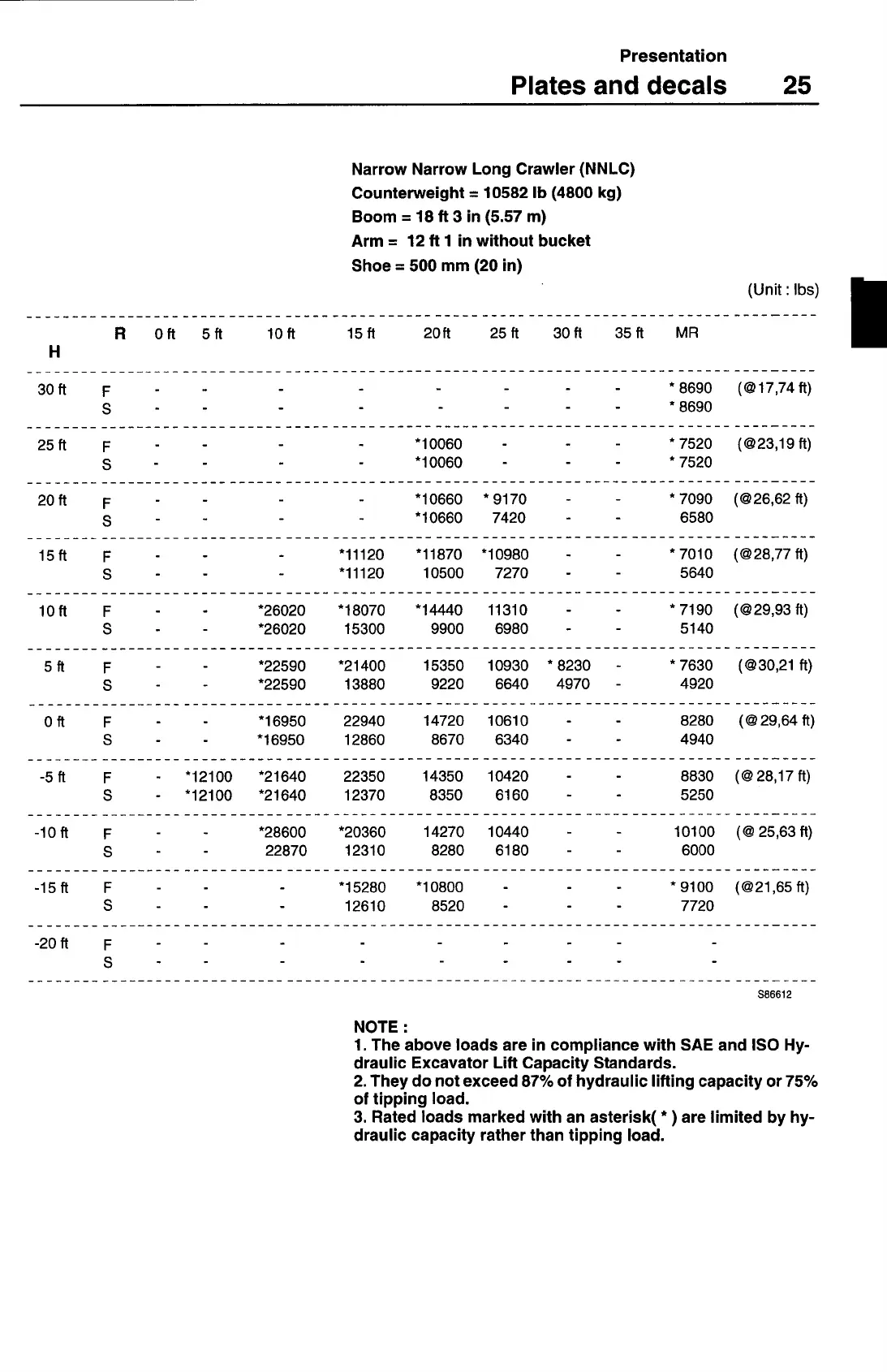

Presentation
Plates and decals
25
Narrow Narrow Long Crawler (NNLC)
Counterweight = 10582 lb (4800 kg)
Boom = 18 ft 3 in (5.57 m)
Arm = 12 ft 1 in without bucket
Shoe = 500 mm (20 in)
(Unit: Ibs)
H
R
Oft 5ff lOft 15ff 20ft 25ff 30ff 35ft MR
30ff
F
* 8690
(©17,74ft)
S
*8690
25ff
F
*10060
* 7520
(@23,19ft)
S
*10060
* 7520
20ff
F
*10660 * 9170
*7090 (@26,62ff)
s
*10660 7420
6580
15ff F
*11120 *11870 *10980
*7010 (@28,77ff)
S
*11120 10500 7270
5640
lOft
F
*26020
*18070
*14440
11310
* 7190 (@29,93ff)
S
*26020 15300 9900 6980
5140
5ft
F
*22590 *21400 15350 10930 *8230 -
*7630 (@30,21ft)
S
*22590 13880 9220 6640 4970 -
4920
Off F
*16950 22940 14720 10610
8280 (@29,64ff)
S
*16950 12860 8670 6340
4940
-5ff F
*12100 *21640 22350 14350 10420
8830 (@28,17ft)
S
*12100 *21640 12370 8350 6160
5250
*28600 *20360 14270 10440
10100 (@25,63ft)
22870 12310 8280 6180
6000
*15280 *10800
*9100 (@21,65ff)
12610
8520
7720
S86612
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
-10ff
F
S
-15ft
F
S
-20ff
F
S
