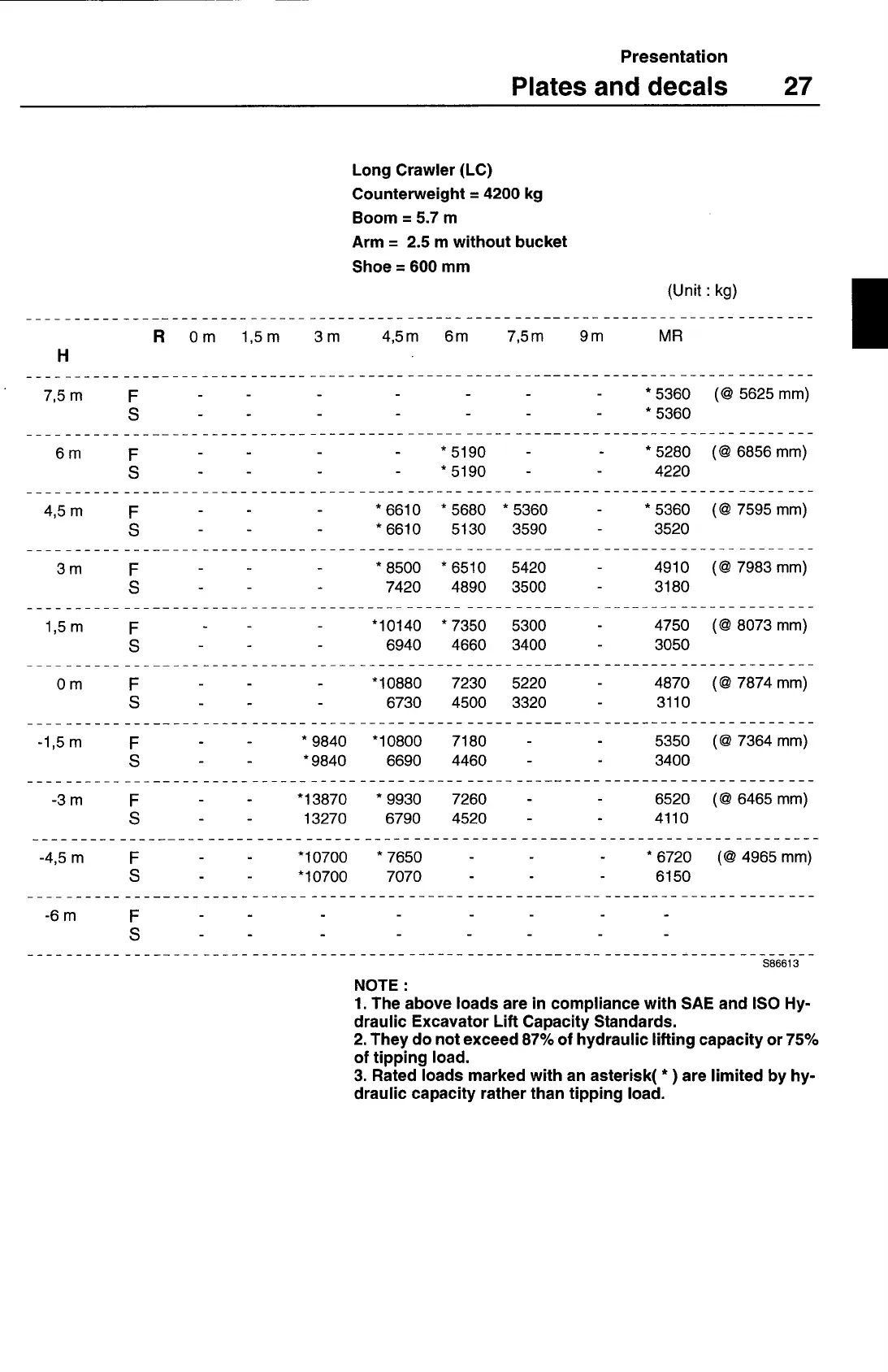

Presentation
Plates and decals
27
Long Crawler (LC)
Counterweight
= 4200 kg
Boom = 5.7 m
Arm = 2.5 m without bucket
Shoe = 600 mm
(Unit: kg)
R Om 1,5m 3m 4,5m 6m 7,5m 9m
MR
H
7,5 m
F
* 5360 (@5625 mm)
S
*5360
6m
F
*5190
*5280 (@6856mm)
S
* 5190 4220
4,5m
F
*6610 *5680 *5360
*5360 (@7595mm)
S
* 6610 5130 3590
3520
3m
F
* 8500
*6510
5420
4910 (@7983mm)
S
7420 4890 3500
3180
1,5m
F
*10140 *7350 5300
4750 (@8073 mm)
S
6940 4660 3400 3050
Om
F
*10880 7230 5220 4870 (@7874mm)
S
6730 4500 3320
3110
-1,5m
F
*9840 *10800
7180
5350 (@7364 mm)
S
* 9840 6690
4460 3400
-3m
F
*13870 * 9930
7260
6520 (@6465 mm)
S
13270 6790 4520
4110
-4,5m
F
*10700 *7650
*6720 (@4965 mm)
S
*10700
7070 6150
-6m
F
S
S86613
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2. They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
