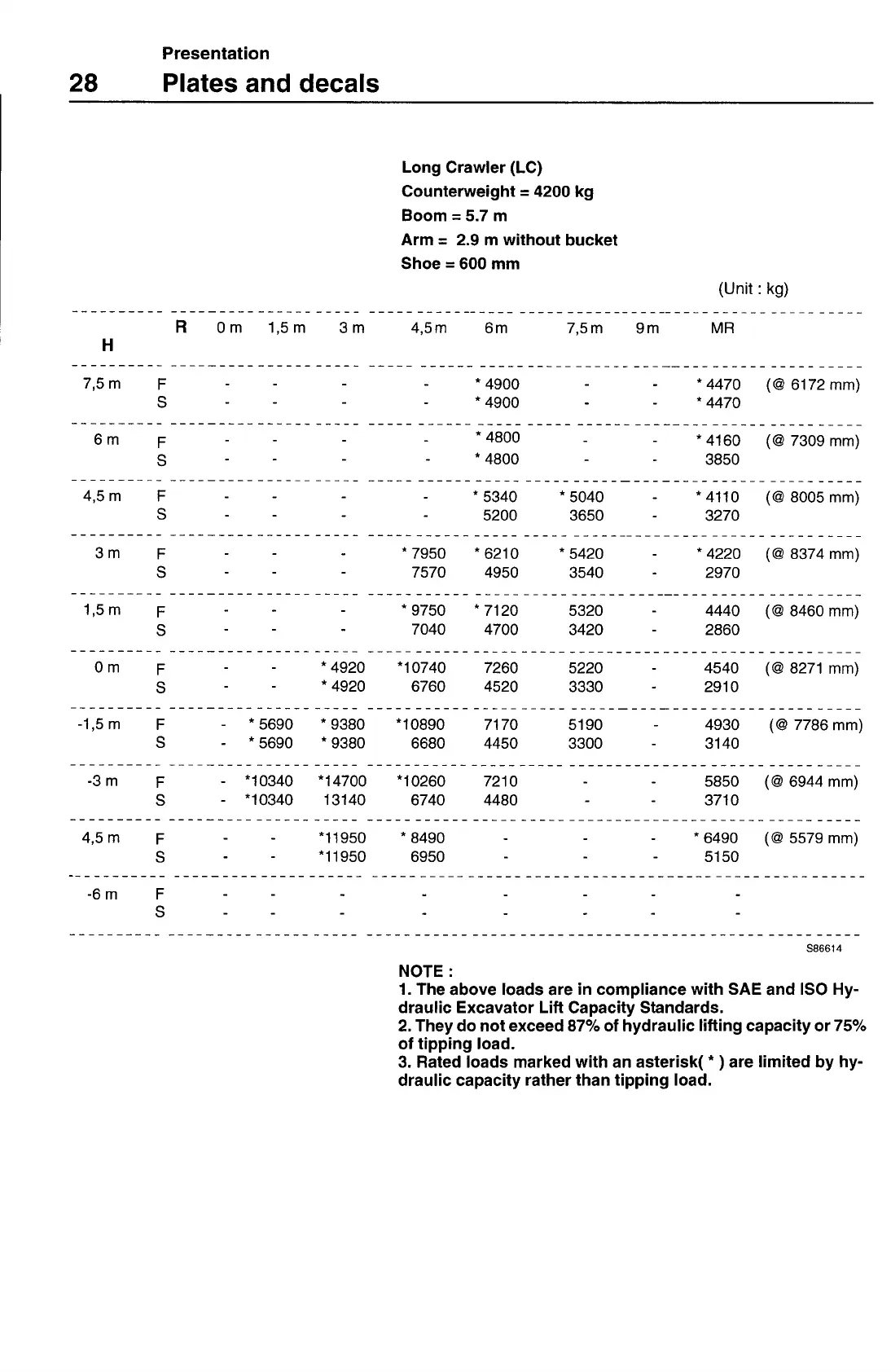

Presentation
28
Plates and decals
Long Crawler (LC)
Counterweight
=
4200 kg
Boom = 5.7 m
Arm = 2.9 m without bucket
Shoe
=
600 mm
(Unit: kg)
H
R Om 1,5m 3m 4,5m 6m
7,5m 9m MR
7,5m F
*4900
*4470 (@6172mm)
S
* 4900
* 4470
6m F
*4800
*4160 (@7309mm)
S
* 4800
3850
4,5 m
F
* 5340
* 5040
*4110
(@8005mm)
S
5200
3650 3270
3m
F
* 7950
* 6210
* 5420
* 4220 (@8374 mm)
S
7570
4950
3540
2970
1,5m F
*9750 *7120 5320
4440 (@8460mm)
S
7040
4700
3420
2860
0 m
F
* 4920
*10740
7260
5220
4540 (@8271 mm)
S
* 4920
6760
4520
3330
2910
-1,5m F
*5690 *9380 *10890 7170 5190
4930 (@7786mm)
S
* 5690 * 9380
6680
4450
3300 3140
-3m F
- *10340 *14700 *10260 7210
5850 (@6944mm)
S
- *10340 13140
6740 4480
3710
4,5 m
F
*11950
* 8490
* 6490
(@ 5579 mm)
S
*11950
6950
5150
S86614
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
-6m
F
S
