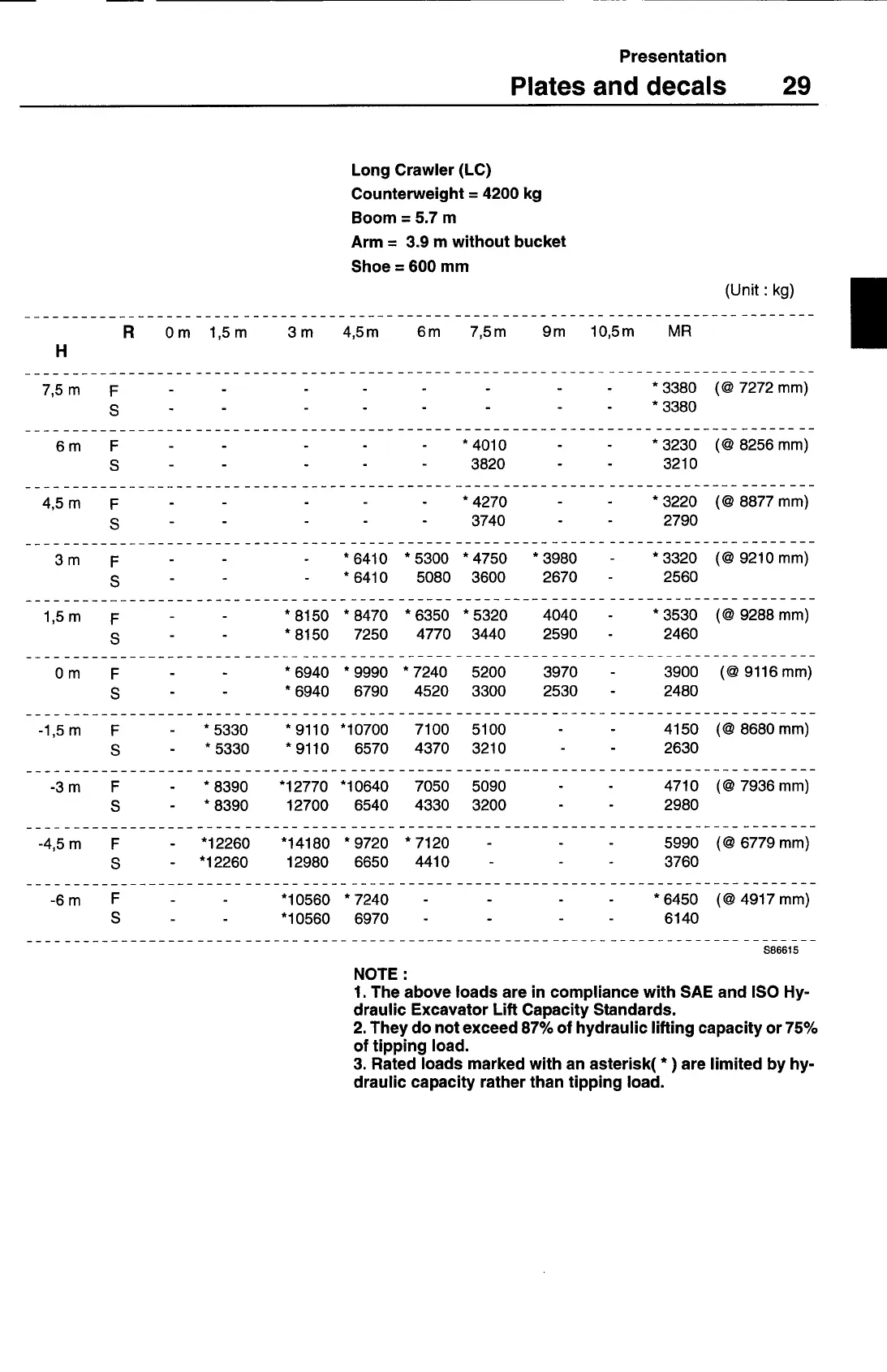

Presentation
Plates and decals
29
Long Crawler (LC)
Counterweight
=
4200 kg
Boom = 5.7 m
Arm = 3.9 m without bucket
Shoe
=
600 mm
(Unit: kg)
R Om 1,5m
3m 4,5m 6m 7,5m 9m 10,5m MR
H
7,5m F
*3380 (@7272mm)
S
*3380
6m
F
*4010
* 3230 (@8256 mm)
S
3820
3210
4,5m F
*4270
*3220 (@8877mm)
S
3740
2790
3m
F
*6410 *5300 *4750 *3980
*3320 (@9210 mm)
s
* 6410
5080 3600
2670
2560
1,5m
F
*8150 *8470 *6350 *5320
4040
*3530 (@9288mm)
S
* 8150 7250 4770 3440
2590
2460
Om
F
*6940 *9990 *7240 5200
3970
3900 (@9116mm)
S
* 6940 6790 4520 3300
2530 2480
-1,5m
F
*5330
*9110 *10700 7100 5100
4150 (@8680mm)
S
* 5330
* 9110 6570 4370 3210
2630
-3m
F
*8390
*12770 *10640 7050 5090
4710 (@7936mm)
S
* 8390
12700 6540 4330 3200
2980
-4,5m
F
*12260
*14180 *9720 *7120
5990 (@6779mm)
S
*12260 12980 6650 4410
3760
-6m
F
*10560 *7240
*6450 (@4917mm)
S
*10560 6970
6140
S86615
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
