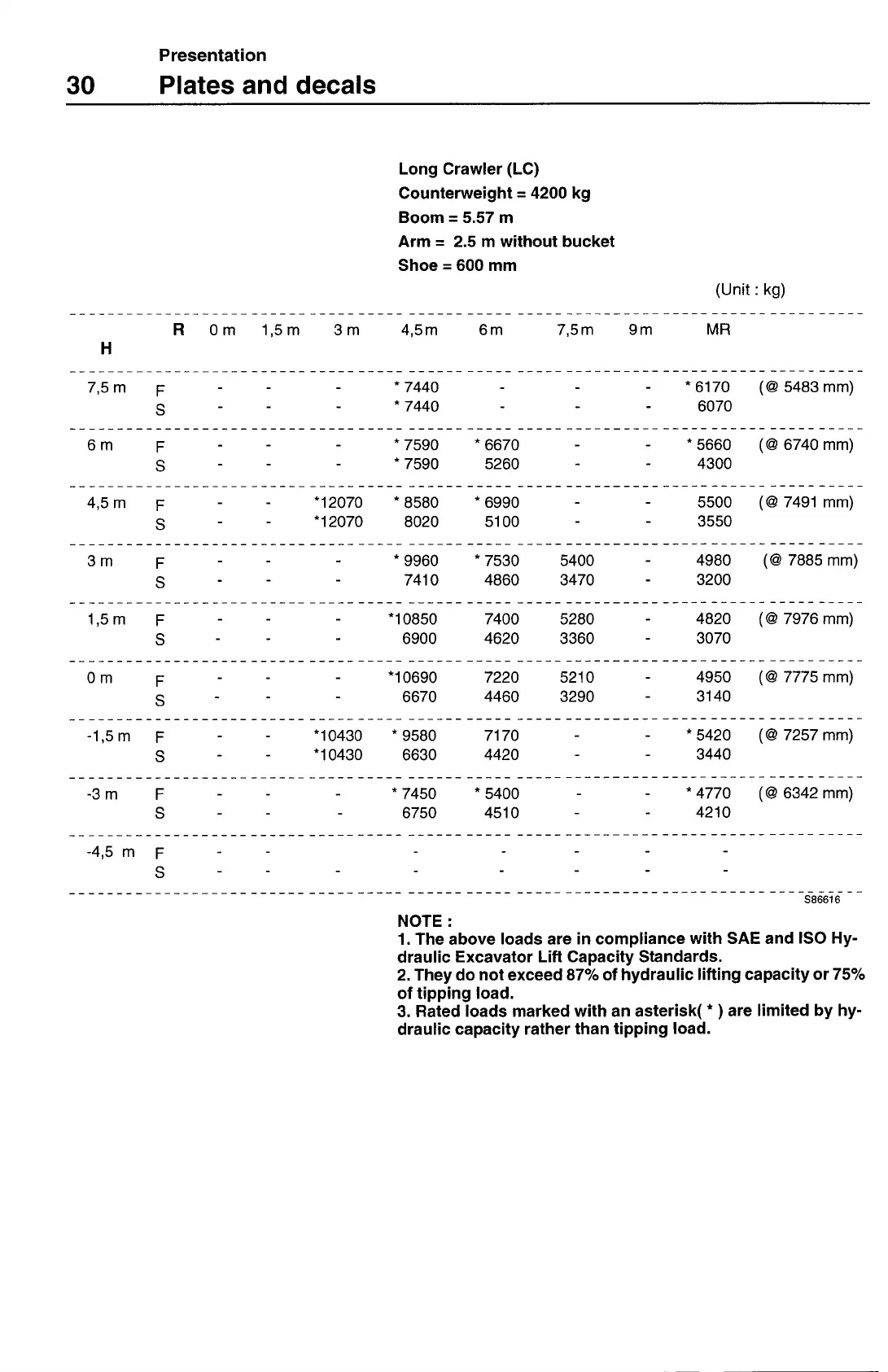

Presentation
30
Plates and decals
Long Crawler (LC)
Counterweight = 4200 kg
Boom = 5.57 m
Arm = 2.5 m without bucket
Shoe = 600 mm
(Unit: kg)
R Urn 1,5rn 3m 4,5m 6m
7,5rn 9m MR
*7440
*6170 (@5483mm)
* 7440 6070
*7590 *6670
*5660 (@6740mm)
* 7590 5260 4300
*12070
* 8580
* 6990
5500 (@7491 mm)
*12070
8020 5100
3550
* 9960
* 7530 5400
4980 (@7885 mm)
7410 4860
3470 3200
H
7,5 m
F
S
6 m
F
S
4,5 m
F
S
3 m
F
S
1,5m
F
*10850
7400 5280
4820 (@7976 mm)
S
6900
4620
3360
3070
Orn
F
*10690
7220 5210
4950 (@7775 mm)
S
6670 4460 3290
3140
-1,5m F
*10430
* 9580 7170
*5420
(@7257mm)
S
*10430
6630
4420
3440
-3m F
*7450 *5400
*4770 (@6342mm)
S
6750 4510
4210
-4,5rn F
S
S86616
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2.
They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3.
Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
