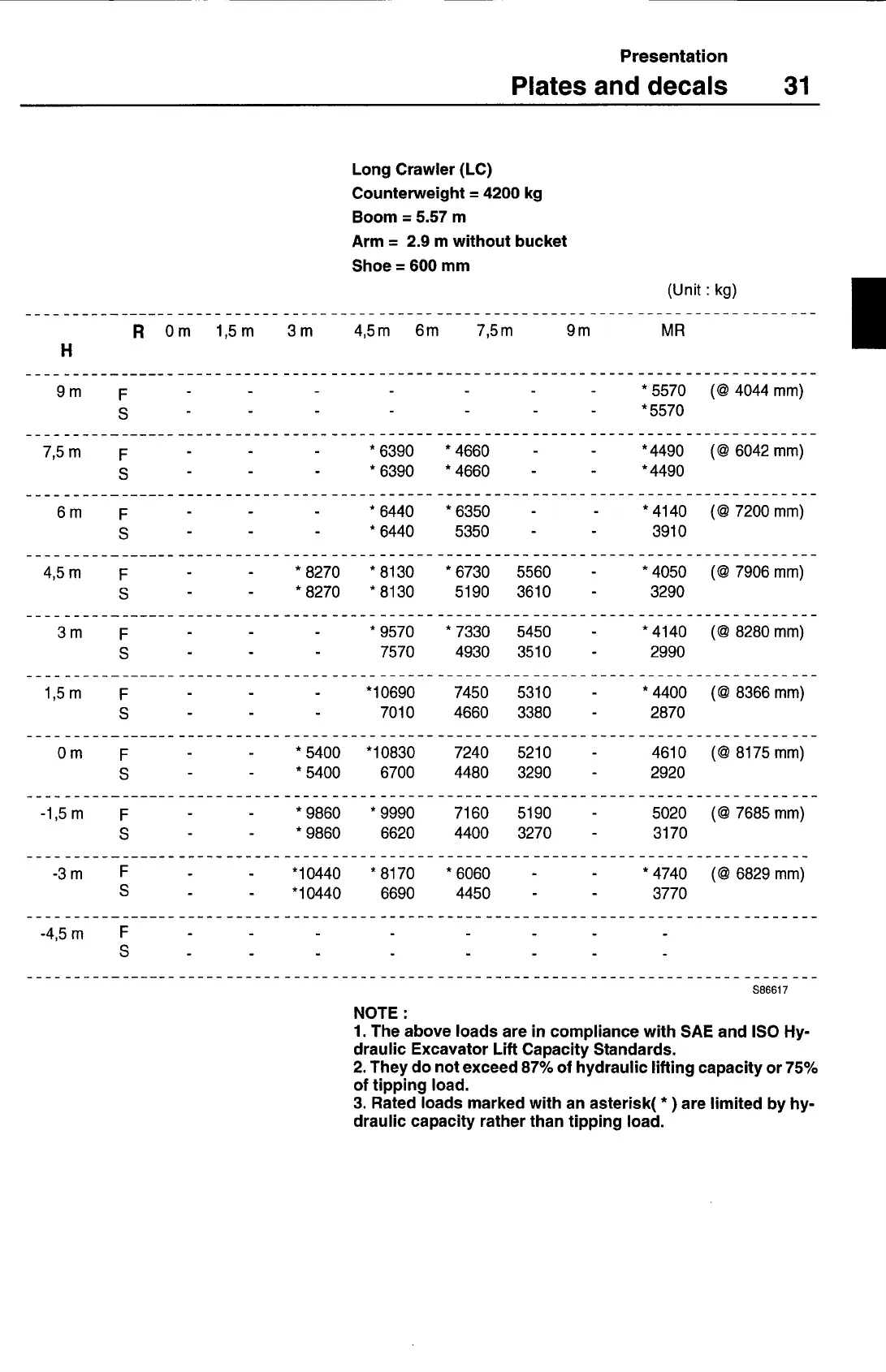

Presentation
Plates and decals
31
Long Crawler (LC)
Counterweight = 4200 kg
Boom = 5.57 m
Arm = 2.9 m without bucket
Shoe = 600 mm
(Unit: kg)
H
R Om 1,5m 3m 4,5m 6m 7,5m
9m MR
9 m
F
* 5570 (@4044 mm)
S
*5570
7,5 m
F
* 6390 * 4660
* 4490 (@6042 mm)
S
* 6390
* 4660
*4490
6m F
*6440 *6350
*4140 (@7200mm)
S
* 6440 5350 3910
4,5m F
*8270 *8130 *6730 5560
*4050 (@7906mm)
S
* 8270 * 8130 5190 3610
3290
3m F
*9570 *7330 5450
*4140 (@8280mm)
S
7570 4930 3510 2990
1,5m F
*10690 7450 5310 *4400 (@8366mm)
S
7010 4660 3380 2870
Om F
*5400 *10830 7240 5210
4610 (@8175mm)
S
* 5400 6700 4480 3290 2920
-1,5m F
*9860 *9990 7160 5190
5020 (@7685mm)
S
* 9860 6620 4400 3270 3170
-3m F
*10440 *8170 *6060
*4740 (@6829mm)
S
*10440
6690
4450
3770
-4,5m
F
S
S86617
NOTE:
1.
The above loads are in compliance with SAE and ISO Hy-
draulic Excavator Lift Capacity Standards.
2. They do not exceed 87% of hydraulic lifting capacity or 75%
of tipping load.
3. Rated loads marked with an asterisk( *
)
are limited by hy-
draulic capacity rather than tipping load.
