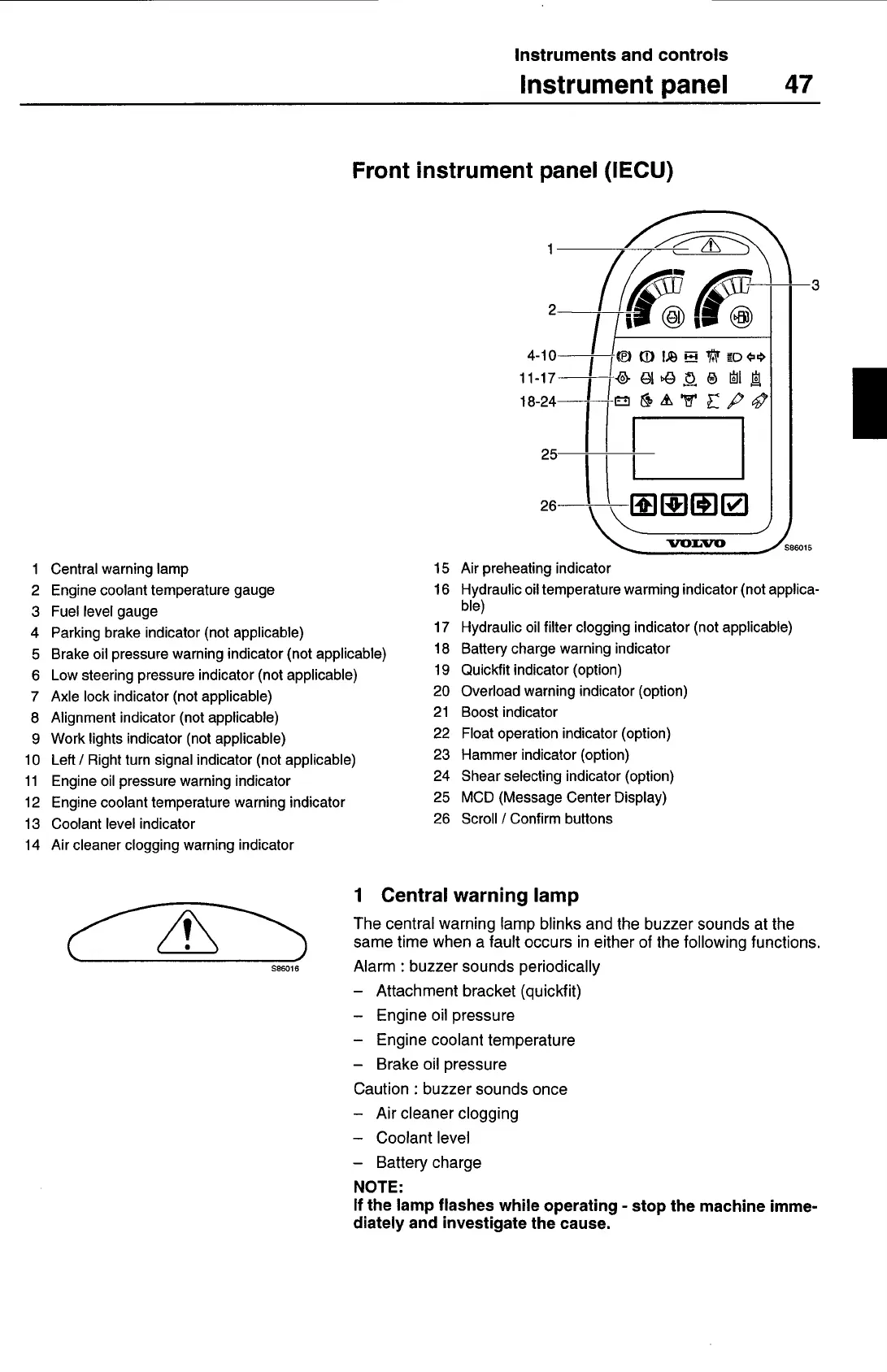

Instruments and controls
Instrument panel
47
Front instrument panel (IECU)
3
410
11-17
18-24
25
26
U
VOLVO
__26015
1
Central warning lamp
15 Air preheating indicator
2
Engine coolant temperature gauge
16 Hydraulic oil temperature warming indicator (not applica-
3
Fuel level gauge
ble)
4
Parking brake indicator (not applicable)
17 Hydraulic oil filter clogging indicator (not applicable)
5
Brake oil pressure warning indicator (not applicable)
18 Battery charge warning indicator
6
Low steering pressure indicator (not applicable)
19 Quickfit indicator (option)
7
Axle lock indicator (not applicable)
20 Overload warning indicator (option)
8
Alignment indicator (not applicable)
21 Boost indicator
9
Work lights indicator (not applicable)
22 Float operation indicator (option)
10 Left I Right turn signal indicator (not applicable)
23
Hammer indicator (option)
11 Engine oil pressure warning indicator
24 Shear selecting indicator (option)
12 Engine coolant temperature warning indicator
25
MCD (Message Center Display)
13 Coolant level indicator
26 Scroll I Confirm buttons
14 Air cleaner clogging warning indicator
1 Central warning lamp
The central warning lamp blinks and the buzzer sounds at the
same time when a fault occurs in either of the following functions.
Alarm : buzzer sounds periodically
— Attachment bracket (quickfit)
— Engine oil pressure
— Engine coolant temperature
— Brake oil pressure
Caution : buzzer sounds once
— Air cleaner clogging
— Coolant level
— Battery charge
NOTE:
If the lamp flashes while operating - stop the machine imme-
diately and investigate the cause.
S86016
