Instruments
and controls

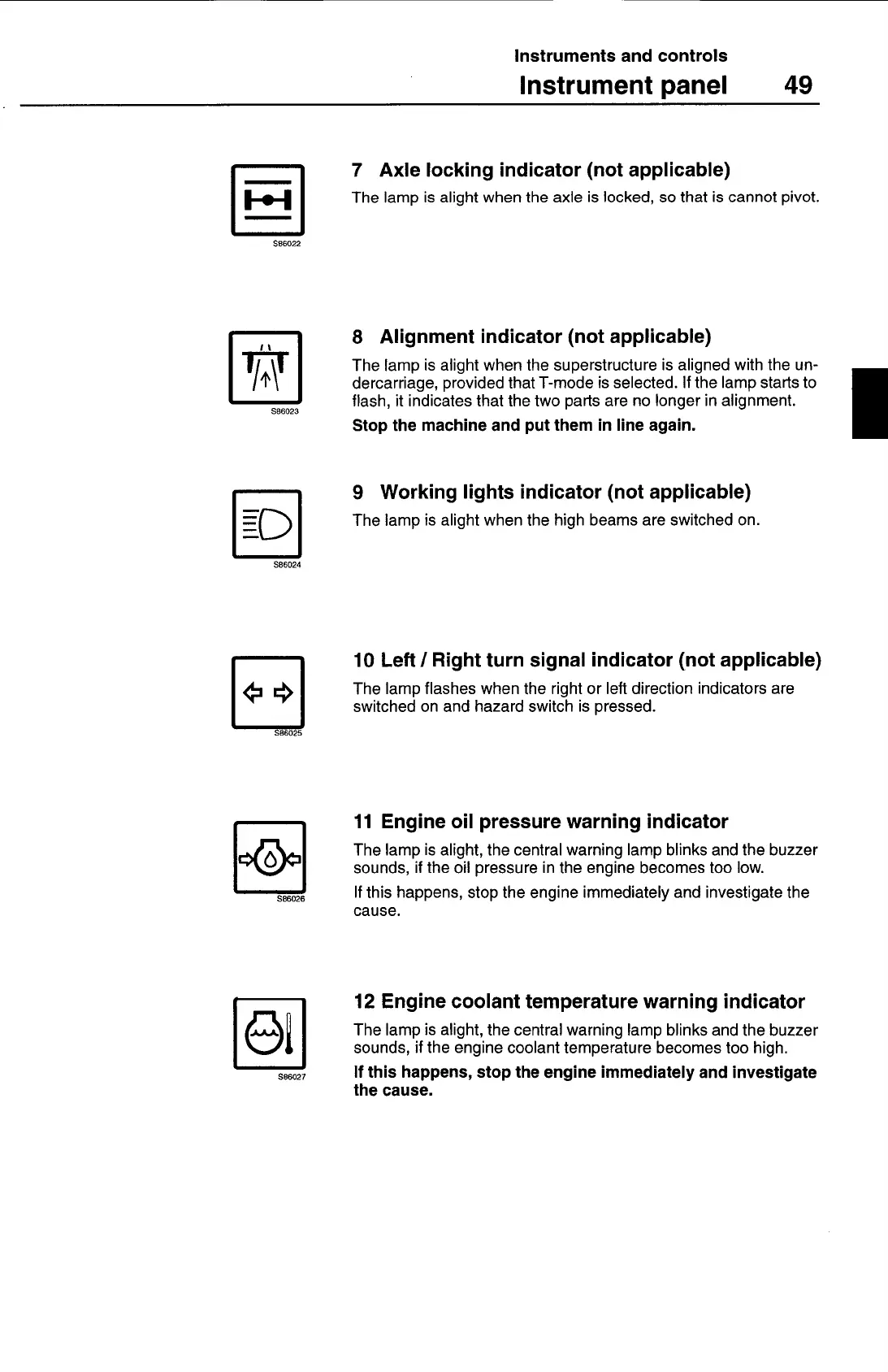

Instrument panel
49
7 Axle locking indicator (not applicable)
The lamp is alight when the axle is locked, so that is cannot pivot.
8 Alignment indicator (not applicable)
The lamp is alight when the superstructure is aligned with the un-
dercarriage, provided that T-mode is selected. If the lamp starts to
flash, it indicates that the two parts are no longer in alignment.
Stop the machine and put them in line again.
9 Working lights indicator (not applicable)
The lamp is alight when the high beams are switched on.
10 Left! Right turn signal indicator (not applicable)
The lamp flashes when the right or left direction indicators are
switched on and hazard switch is pressed.
S86025
11 Engine oil pressure warning indicator
The lamp is alight, the central warning lamp blinks and the buzzer
sounds, if the oil pressure in the engine becomes too low.
If this happens, stop the engine immediately and investigate the
cause.
S86026
12 Engine coolant temperature warning indicator
The lamp is alight, the central warning lamp blinks and the buzzer
sounds, if the engine coolant temperature becomes too high.
If this happens, stop the engine immediately and investigate
the cause.
S86027
