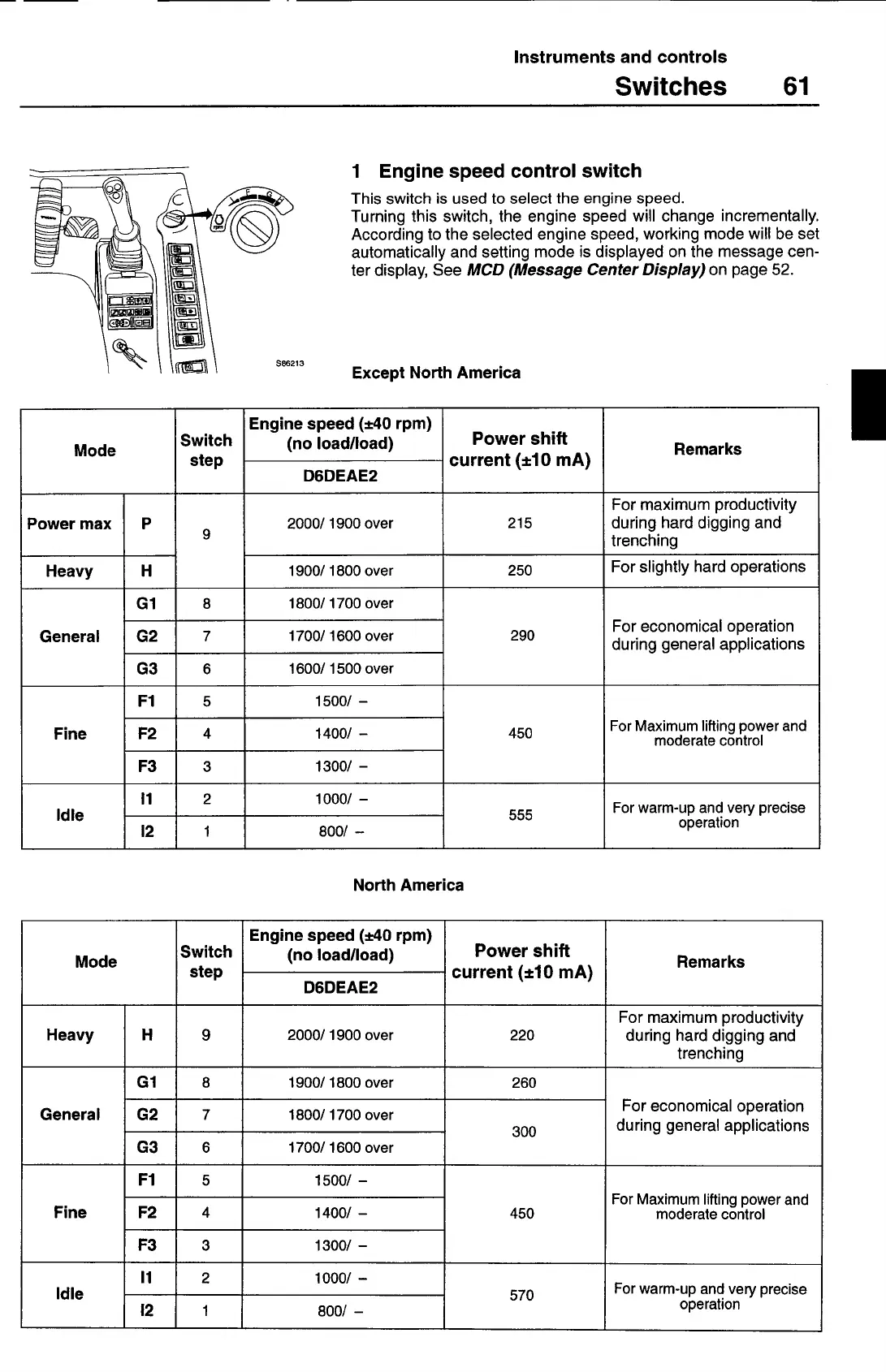

Instruments and controls
Switches
61
1 Engine speed control switch
This switch is used to select the engine speed.
Turning this switch, the engine speed will change incrementally.
According to the selected engine speed, working mode will be set
automatically and setting mode is displayed on the message cen-
ter display, See
MCD (Message Center Display)
on page 52.
Except North America
Mode
Switch
step
Engine speed (±40 rpm)
(no load/load)
Power shift
current (±10 mA)
Remarks
D6DEAE2
Power max
P
9
2000/ 1900
over
215
For maximum productivity
during hard digging and
trenching
Heavy
H
1900/1800
over
250
For slightly hard operations
General
Gi
8
1800/ 1700
over
290
For economical operation
during general applications
G2
7
1700/1600
over
G3
6
1600/ 1500
over
Fine
Fl
5
1500/ -
450
For Maximum lifting power and
moderate control
F2
4
1400/ —
F3
3
1300/ -
Idle
Il
2
1000/ -
For warm-up and very precise
operation
12
1
800/ —
North America
Mode
Switch
step
Engine speed (±40 rpm)
(no load/load)
Power shift
current (±10 mA)
Remarks
D6DEAE2
Heavy
H
9
2000/1900
over
220
For maximum productivity
during hard digging and
trenching
General
Gi
8
1900/ 1800
over
260
For economical operation
during general applications
G2
7
1800/1700
over
300
G3
6
1700/1600
over
Fine
Fl
5
1500/ -
450
For Maximum lifting power and
moderate control
F2
4
1400/ —
F3
3
1300/ -
Idle
Ii
2
1000/ -
570
For warm-up and very precise
operation
12
1
800/ —
