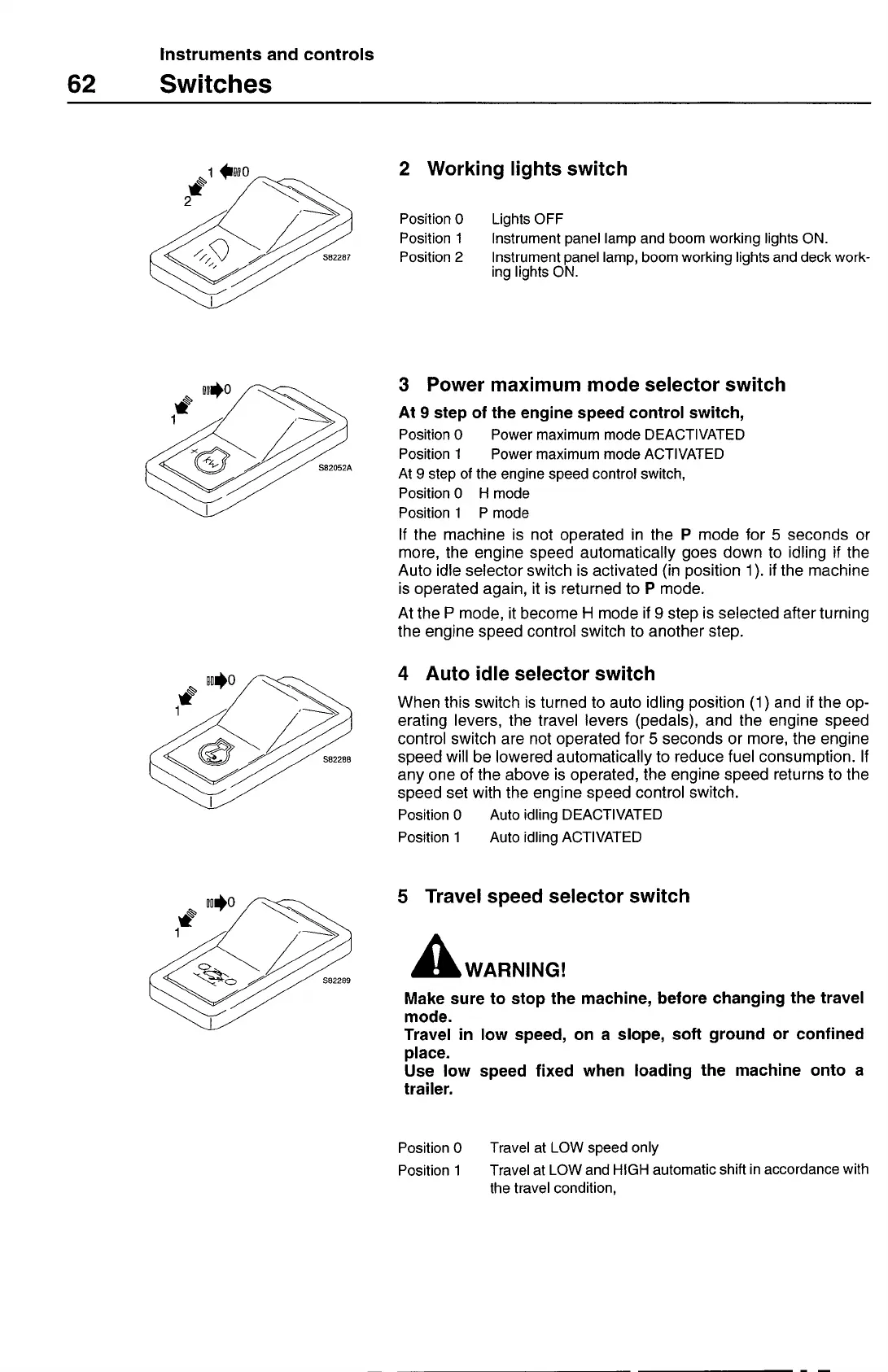

Instruments and controls
62
Switches
2 Working lights switch
Position 0
Lights OFF
Position 1
Instrument panel lamp and boom working lights ON.
Position 2
Instrument panel lamp, boom working lights and deck work-
ing lights ON.
3 Power maximum mode selector switch
At 9 step of the engine speed control switch,
Position 0
Power maximum mode DEACTIVATED
Position 1
Power maximum mode ACTIVATED
At 9 step of the engine speed control switch,
Position 0 H mode
Position 1 P mode
If the machine is not operated in the P mode for 5 seconds or
more, the engine speed automatically goes down to idling if the
Auto idle selector switch is activated (in position 1). if the machine
is operated again, it is returned to P mode.
At the P mode, it become H mode if 9 step is selected after turning
the engine speed control switch to another step.
4 Auto idle selector switch
When this switch is turned to auto idling position (1) and if the op-
erating levers, the travel levers (pedals), and the engine speed
control switch are not operated for 5 seconds or more, the engine
speed will be lowered automatically to reduce fuel consumption. If
any one of the above is operated, the engine speed returns to the
speed set with the engine speed control switch.
Position 0
Auto idling DEACTIVATED
Position 1
Auto idling ACTIVATED
5 Travel speed selector switch
A
WARNING!
Make sure to stop the machine, before changing the travel
mode.
Travel in low speed, on a slope, soft ground or confined
place.
Use low speed fixed when loading the machine onto a
trailer.
Position 0
Travel at LOW speed only
Position 1
Travel at LOW and HIGH automatic shift in accordance with
the travel condition,
