A
C
S86214

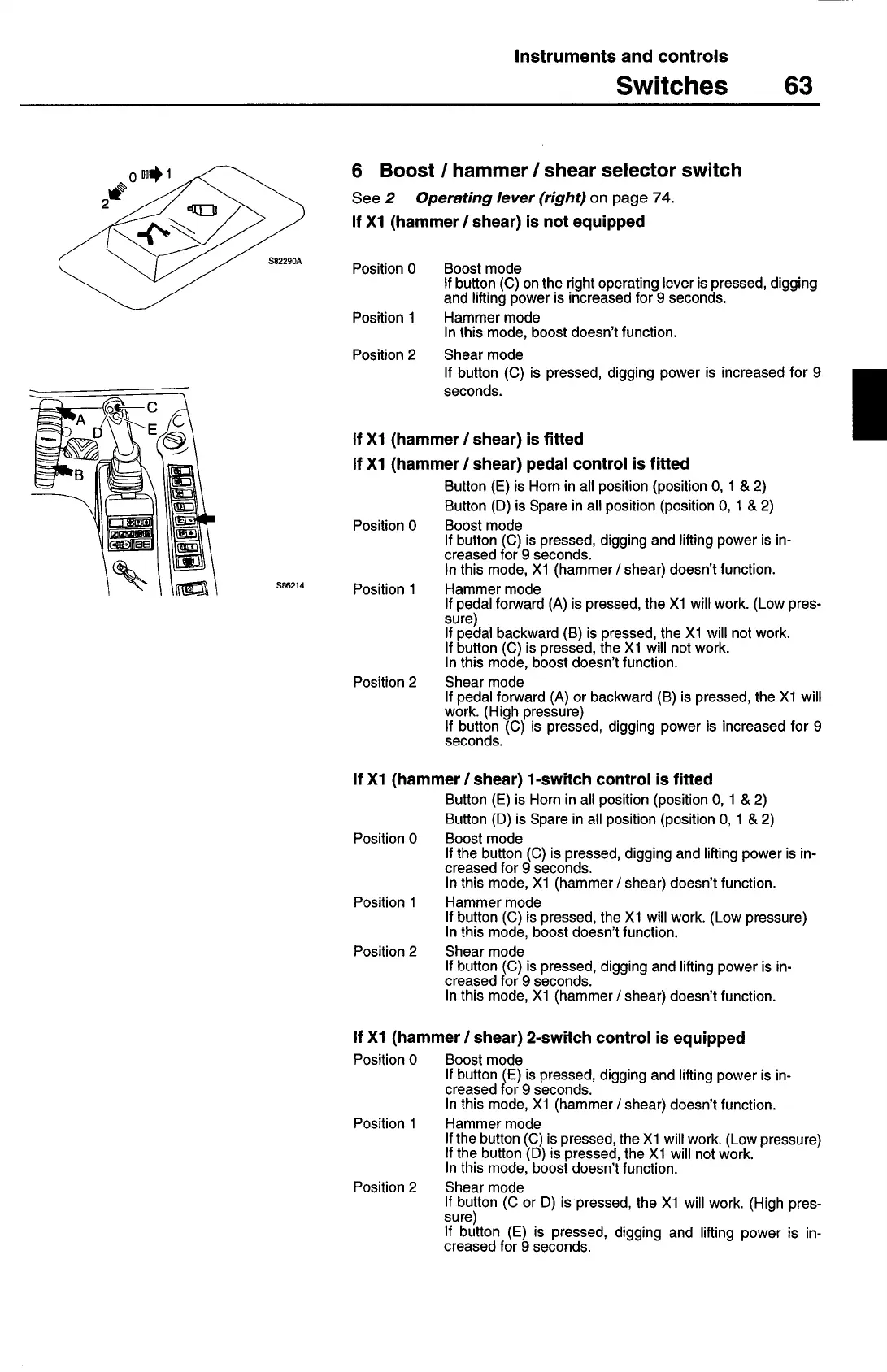

Instruments and controls
Switches
63
6 Boost
I
hammer / shear selector switch
See
2 Operating lever (right)
on page 74.
If Xl (hammer! shear) is not equipped
Position 0
Boost mode
If
button (C) on the right operating lever is pressed, digging
and lifting power is increased for 9 seconds.
Position 1
Hammer mode
In this mode, boost doesn't function.
Position 2
Shear mode
If button (C) is pressed, digging power is increased for 9
seconds.
If Xl (hammer
I
shear) is fitted
If Xl (hammer
I
shear) pedal control is fitted
Button (E) is Horn in all position (position 0, 1 & 2)
Button (D) is Spare in all position (position 0, 1 & 2)
Position 0
Boost mode
If button (C) is pressed, digging and lifting power is in-
creased for 9 seconds.
In this mode, Xl (hammer
I
shear) doesn't function.
Position 1
Hammer mode
If pedal forward (A) is pressed, the Xl will work. (Low pres-
sure)
If pedal backward (B) is pressed, the Xl will not work.
If button (C) is pressed, the Xl will not work.
In this mode, boost doesn't function.
Position 2
Shear mode
If pedal forward (A) or backward (B) is pressed, the Xl will
work. (High pressure)
If button (C) is pressed, digging power is increased for 9
seconds.
If Xl (hammer! shear) 1-switch control is fitted
Button (E) is Horn in all position (position 0, 1 & 2)
Button (D) is Spare in all position (position 0, 1 & 2)
Position 0
Boost mode
If the button (C) is pressed, digging and lifting power is in-
creased for 9 seconds.
In this mode, Xl (hammer / shear) doesn't function.
Position 1
Hammer mode
If button (C) is pressed, the Xl will work. (Low pressure)
In this mode, boost doesn't function.
Position 2
Shear mode
If button (C) is pressed, digging and lifting power is in-
creased for 9 seconds.
In this mode, Xl (hammer
I
shear) doesn't function.
If Xl (hammer
I
shear) 2-switch control is equipped
Position 0
Boost mode
If button (E) is pressed, digging and lifting power is in-
creased for 9 seconds.
In this mode, Xl (hammer! shear) doesn't function.
Position 1
Hammer mode
If the button (C) is pressed, the Xl will work. (Low pressure)
If the button (D) is pressed, the Xl will not work.
In this mode, boost doesn't function.
Position 2
Shear mode
If button (C or D) is pressed, the Xl will work. (High pres-
sure)
If button (E) is pressed, digging and lifting power is in-
creased for 9 seconds.
I
