Volvo EC330B - Page 19

Presentation
Plates and decals 17
VOE 2134355130
Shoe 600 mm (kg)
Working conditions:
– With no tool (bucket, clamshell.).
If object handling is performed with tool installed, the weight of
the tool shall be deducted, the weight of the tool shall be
– With retracted bucket cylinder.
– On a compact horizontal level ground.
– In complete swing of the upper structure.
– Track shoe: 600 mm
BOOM length 6.45 m

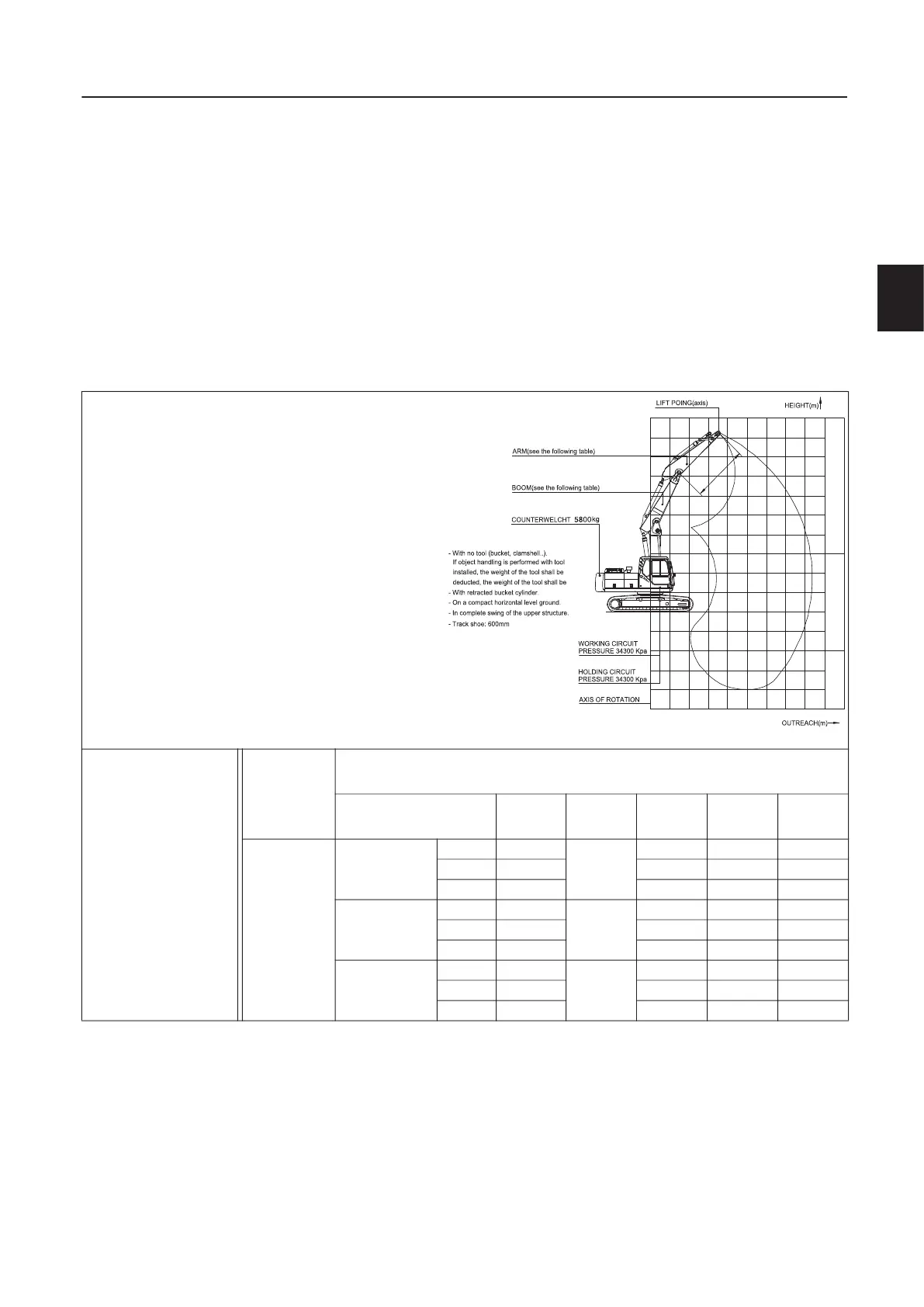

OUTREACH IN METERS - LOADS IN kg
OUTREACH (m) 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
ARM (LD)
LD=2.6
Z2 -
11390
7690 5830 -
Z1 14290 7420 5430 -
Z3 20920 7530 - -
LD=3.2
Z2 -
11420
8360 6010 4530
Z1 13820 7480 5490 4310
Z3 20830 7520 5550 -
LD=3.9
Z2 -
10990
8440 6010 4490
Z1 8400 7210 5280 4100
Z3 18880 7180 5260 -
S84242B
9
8
7
6
5
4
3
2
1
0
1
2
3
4
5
012 34 5 67 89
Z3
Z1
Z2
LD
