Instruments and controls
50 Display unit
VOE 2134355130

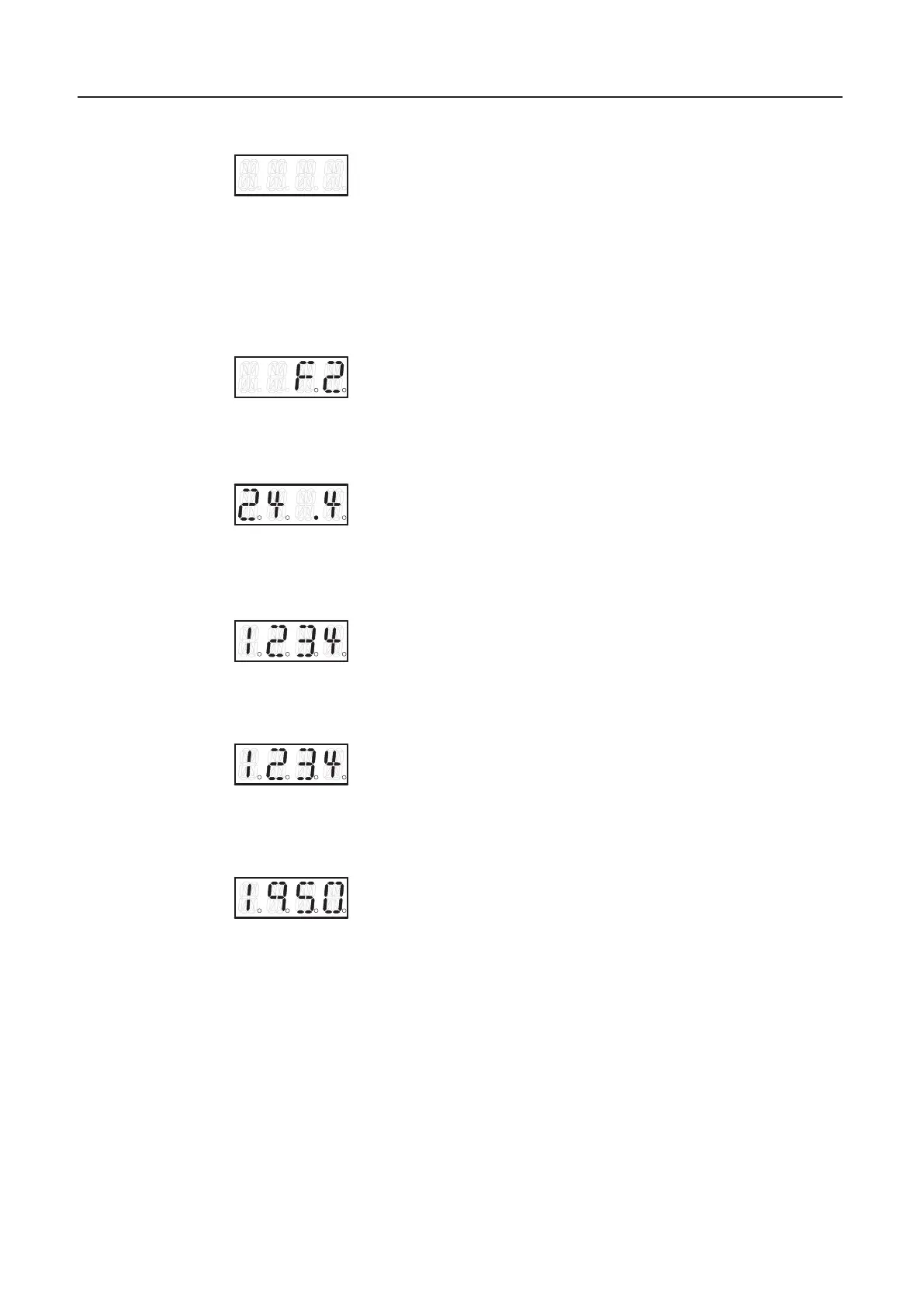

5 Main display window
If the machine has an abnormal condition, an error code is dis-
played in the window.
If there are multiple error codes, they are displayed alternately and
when pressing item selector switch (11), the error code is disap-
peared.
If the machine functions are normal, the engine speed is displayed
in the window. When pressing Item selector sw itch (11), the dis-
played data is changed.
6 Mode display windo w
The engine speed mode is displayed on the window as I2, I1, F3,
F2, F1, G3, G1, H, P. (P: Except North America)
See Engine speed control switch on page 37.
7 Voltage indicating lamp
Control lamp (red)
This lamp is ON when pressing item selecting switch (11), and the
battery voltage is displayed on main display window (5).
8 Hammer operating hour indicating lamp
(option)
Control lamp (red)
This lamp is ON when pressing item selecting switch (11), and the
hammer operating hour is displayed on main display window (5).
9 Key number indicating lamp
Control lamp (red)
This lamp is ON when pressing item selecting switch (11), and the
key number is displayed on main display window (5).
10 Engine speed indicating lamp
Control l amp (red)
This lamp is ON when pressing item selecting switch (11), and the
engine speed is displayed on main display window (5).
S82333
S82331
S82320
S82321
S82321
S82319
To Next Page
