Instruments and controls
Display u nit 51
VOE 2134355130
11 Item selecting switch

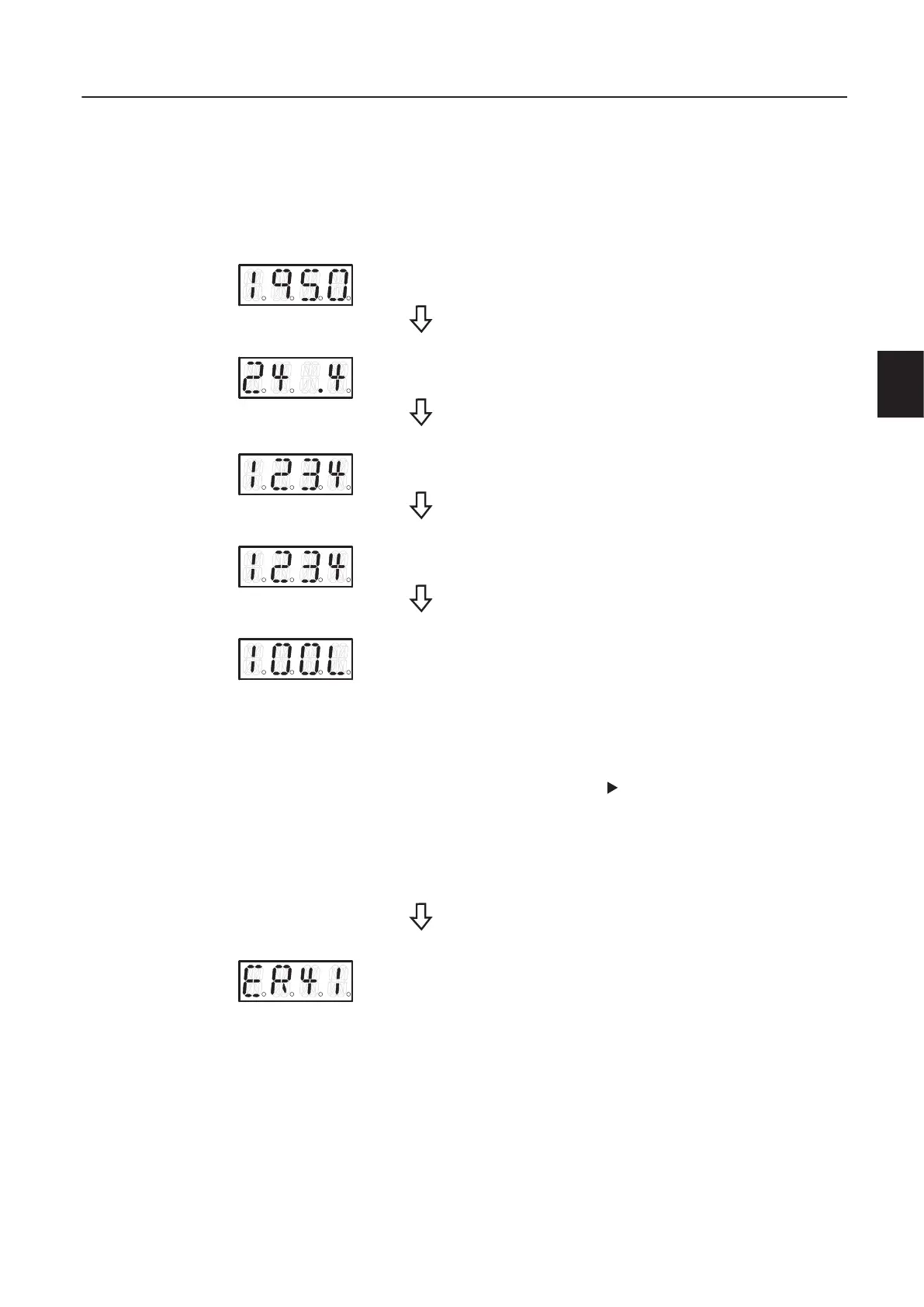

When pressing this switch in series, figures on main display win-
dow (5) change in series and the indicating lamp in question is ON.
Engine rpm
Engine speed indicating lamp (10) is ON
Battery voltage
Voltage indicating lamp (7) is ON.
Hammer operating hour (option)
indicating lamp (8) is ON
Key number
indicating lamp (9) is ON
Setting pump flow (option)
The maximum flow of pump can be set by turning the flow control
(See ) switch with monitoring the value of MDU(Machine Display
Unit)
How to see the set value on the MDU in US gallon:
– Turn the flow control switch, the value will be displayed on the
MDU in L units (litres).
– Press and hold down the key on the MDU until the value
changes to G units (US gallon).
– MDU will always display the set value in G unit later on.
To see the litres per minute units next time (if it is necessary), re-
peat the above operation until it displays the value in L units
.
Error code
If machine functions are abnormal.
S82319
S82320
S82321
S82321
S82323
S82324
