Instruments and controls
54 Controls
VOE 2134355130

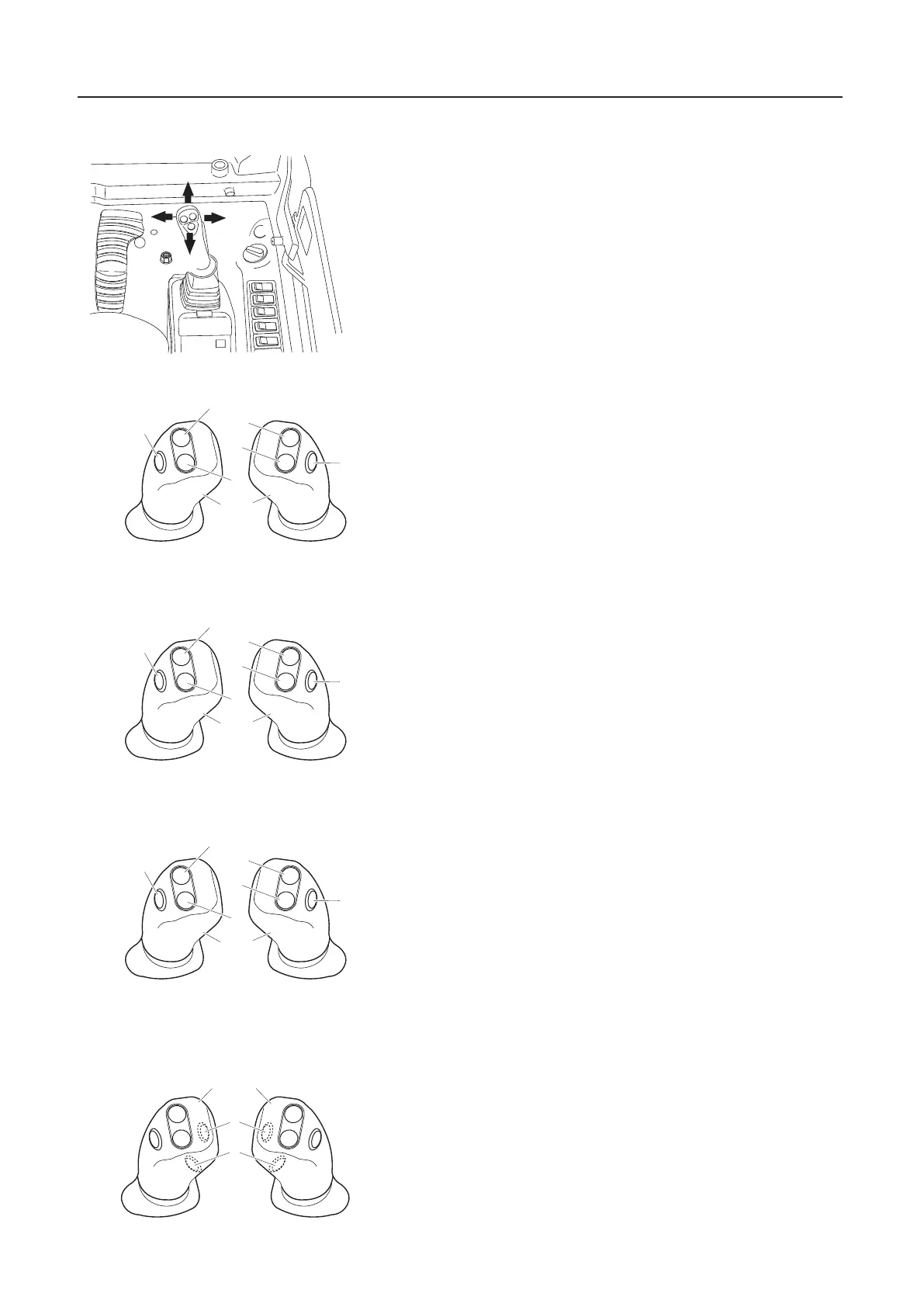

2 Operating lever (right)
This lever is for boom and bucket.
Three button lever
Thumb with three button lever
Float with three button lever
Five button lever
1 Bucket in
2 Bucket out
3 Boom lower
4Boomraise
A Left operating lever
B Right operating lever
1 Rotator button
2 Rotator button
3 Horn button
4 Unassigned
5 Boost / hammer
6 Horn button
A Left operating lever
B Right operating lever
1 Rotator button
2 Rotator button
3 Horn button
4 Thumb bucket
5 Thumb bucket / hammer button
6 Boost button
A Left operating lever
B Right operating lever
1 Rotator button
2 Rotator button
3 Horn button
4 Unassigned
5 Boost / hammer button
6 Float ON / OFF button
A Left operating lever
B Right operating lever
1 Unassigned
2 Unassigned
3
2
S82046
1
4
6
1
2
3
B
A
4
5
S82255
6
1
2
3
B
A
4
5
S82255
6
1
2
3
B
A
4
5
S82255
B
A
1
2
S80511D
